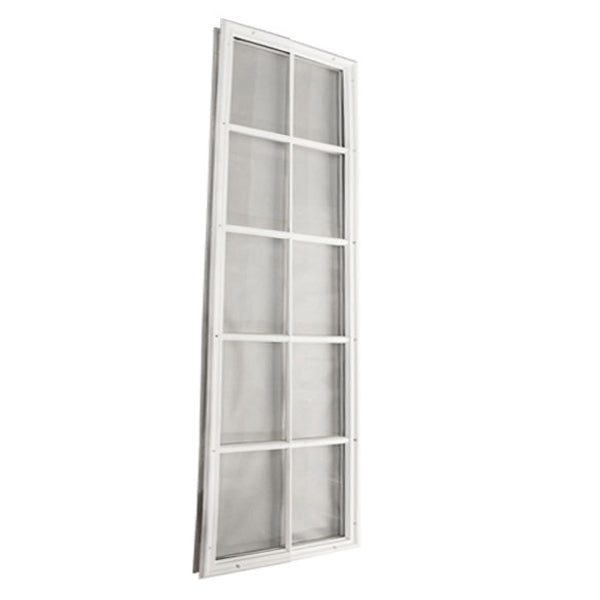

Therma-Tru 22 x 64 x 1/2 10-Lite External Grid, Clear Glass

Part Number:330226426
GLASS OPTIONS: - Low E Insulated Glass
Please note, this product has been discontinued.
We reserve the right to adjust shipping. We will notify the customer prior to adjustment, and if they do not agree we may cancel the order at our discretion.

Steel Entry Door Lite with Plastic Frame - Surround with Insulated, Double Pane Glass
Replace Existing Plastic surround that may have cracked or broken on your steel door
Will also replace Foggy glass where moisture has gotten between the panes.
Normally used on doors measuring 2-foot 8 inches (2-8 ) or wider
NOTE: Does NOT fit Peachtree Avanti Steel Door
The inside and outside frames are screwed together from inside

Design: 10 Lite, External Muntins /Grids / Grilles

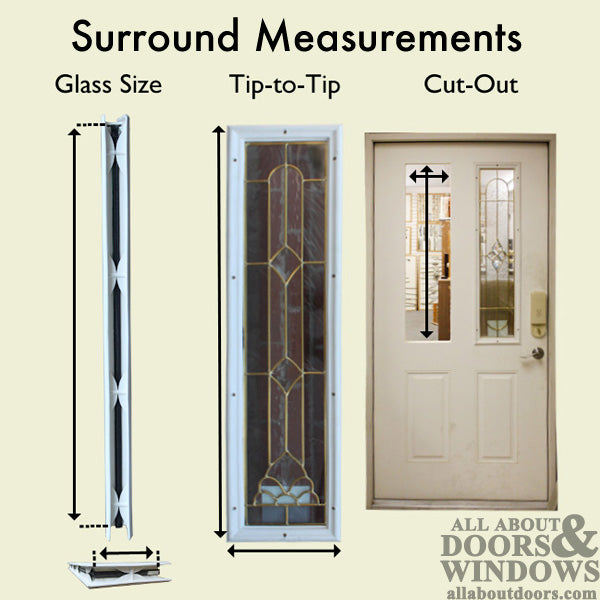

Actual Door Glass Size: 22 X 64

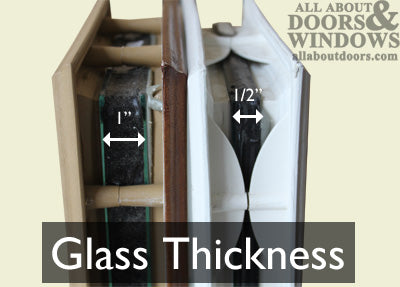

Insulated Glass Overall Thickness: 1/2 inch Dual Pane
Door Cut out Hole: 23 X 65
Tip-to-Tip frame Dimensions: 23-7/8 x 65-13/16
Color: White
Frame Material: PVC, Durable BTS High Performance
Surround Style: Standard, used with Smooth Star Fiberglass, Profiles and Traditions steel series doors

NOTE: Low E-glass is a more energy efficient product and will reduce the amount of heat gain in summer and heat loss in winter.
Clear or Low E Glass is available as a special order. Please allow 7 to 10 days.

Read our articles:
Basic info on ordering lites if you don't understand the above information
How to replace surrounds in an entry door or sidelite (video | article)

Once received, double-check that the lite you've ordered fits in your door or wall before painting or staining. Items cannot be returned unless in original un-painted, un-stained condition with all original screws in package.

Painting: Manufacture requires the surround to be painted within 30 days
