Replacement thumb turn with tail piece for interior pull handle on Sash Control handles for sliding patio doors

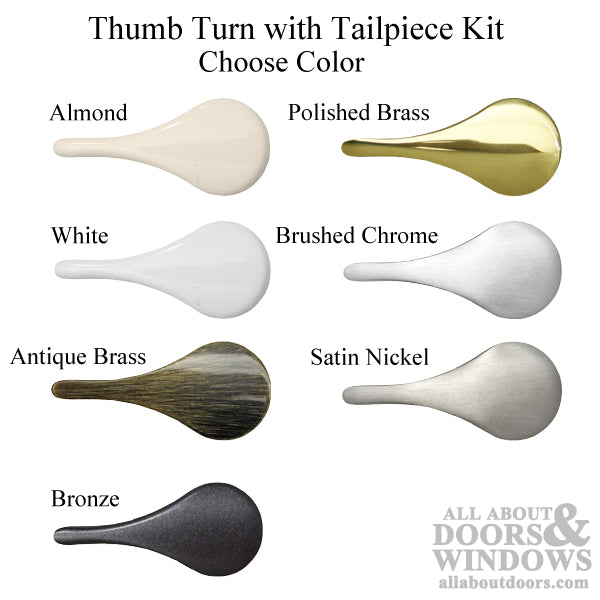

Available in 7 colors:
White, Bronze, Polished Brass, Antique Brass, Brushed/Satin Nickel, Brushed/Satin Chrome and Almond.

Assembly instructions: # 14276
1. Put clear plastic washer on thumb turn
2. Install thumb turn through hole in Handle.
3. install tail piece
4. install silver compression ring - Can go either way, curve up or down
5. Push on Black Lock Ring - Curve down ^ , push on till it grabs the thumb turn snugly
The thumb turn should be able to move within the slot.

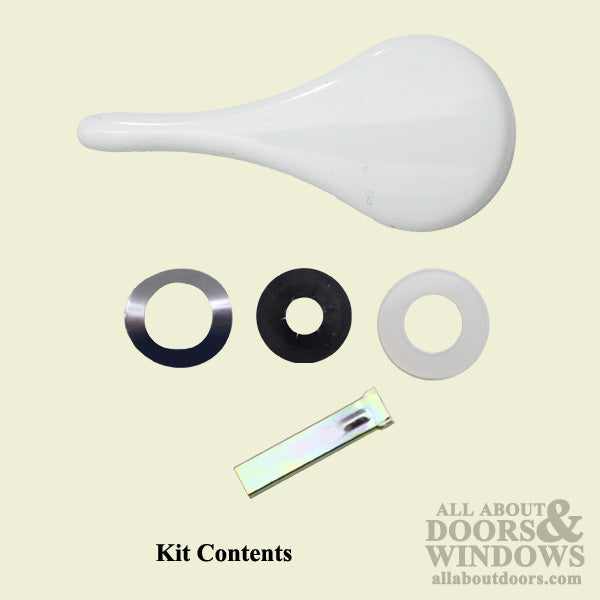

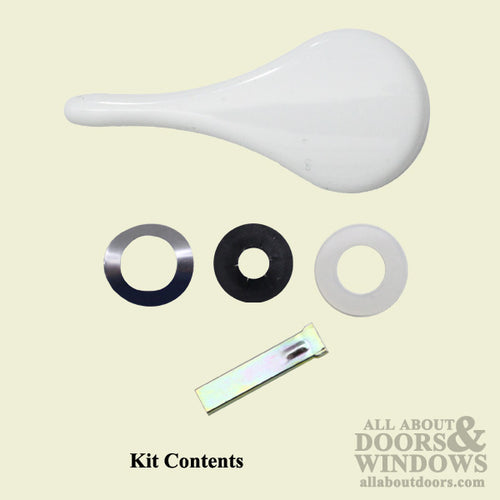

This kit includes the thumb turn, does not include handle or lock

If your sliding patio door is 2 inches thick, purchase tail piece 14278 to use this part on sliding door.

Works with handle 14254-WR (Weiser Keyway) and 14254-SC1 (Schlage Keyway)

Priced and sold each.
