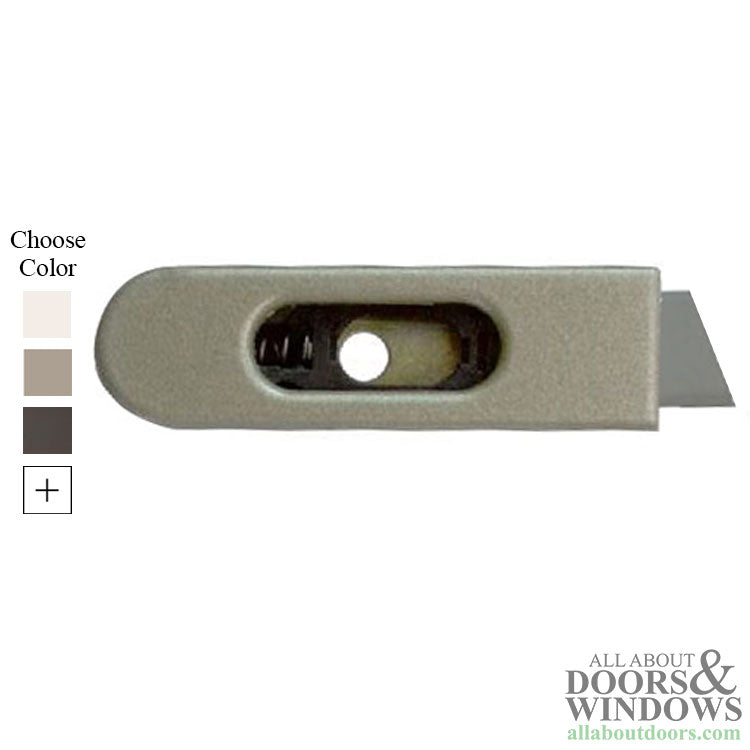

Replacement Tilt Latch only ,No thumb Button, lower sash on Weather Shield Pro-Shield Window

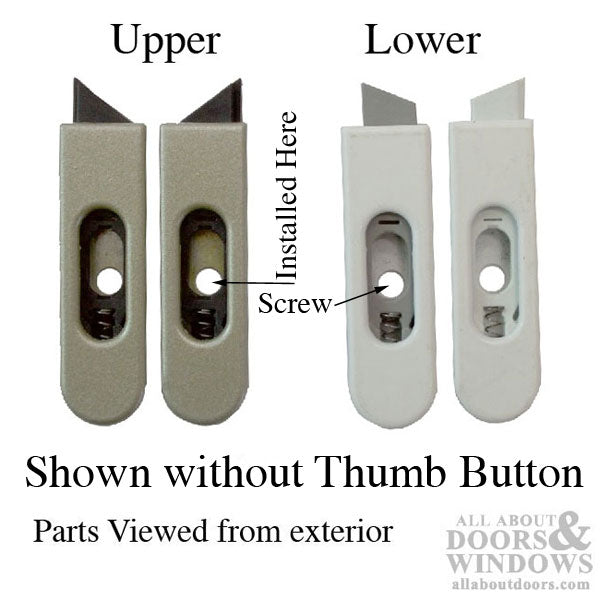

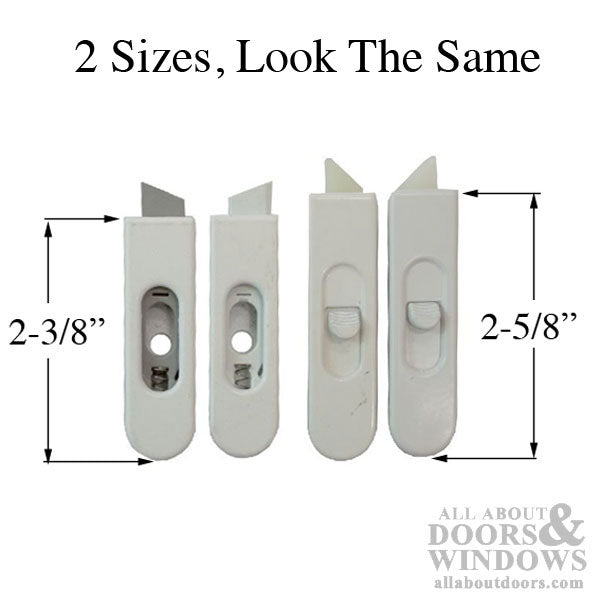

NOTE: The Lower and Upper sash look similar, the nylon latch ends are different.
Application: Tilt latch for sliding window

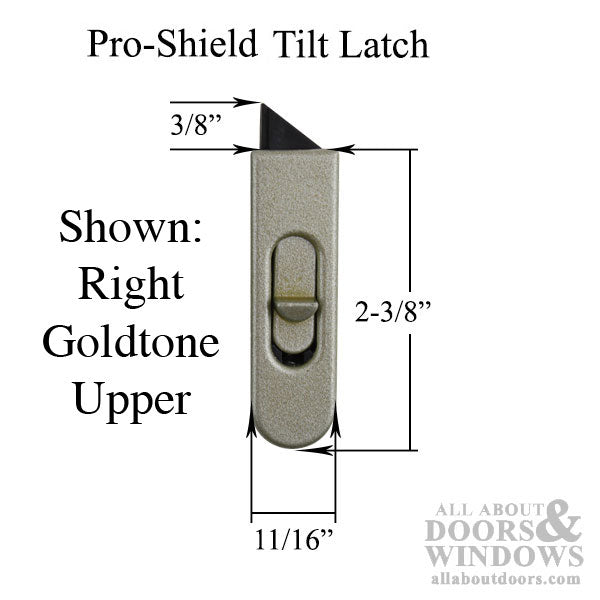

Housing Width: 11/16 inch
Housing Length: 2-3/8 inches
Latch projection: 3/8 inch
Handed: Yes, As Shown
Latch Color: Gray Nylon/ Plastic
Housing Color: Assorted Finishes
Housing Material: Metal
Includes: 1 Tilt Latch, No Thumb Button (sold separately)
Priced and sold each, no thumb button, no screw
Limited to existing inventory.
No returns, refund, or exchanges.
Note:

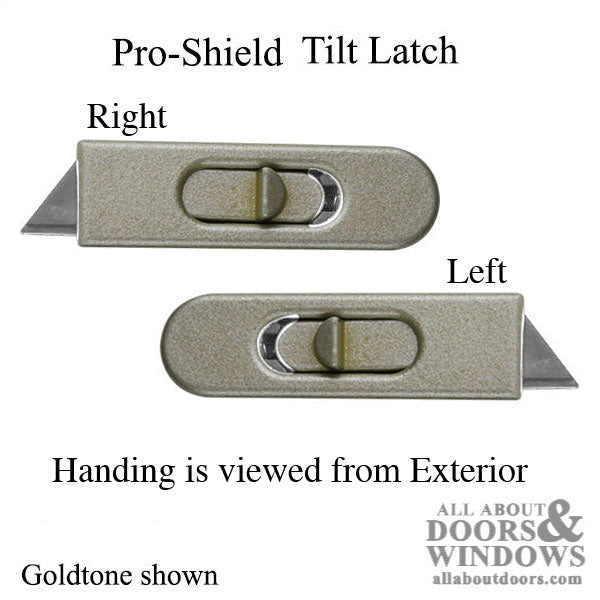

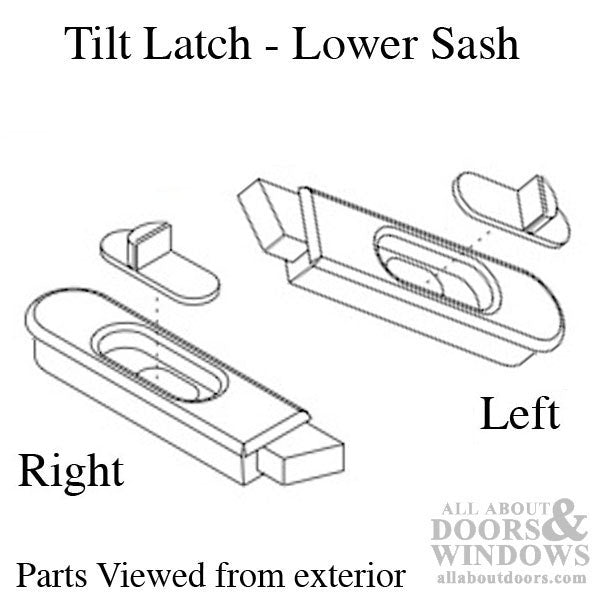

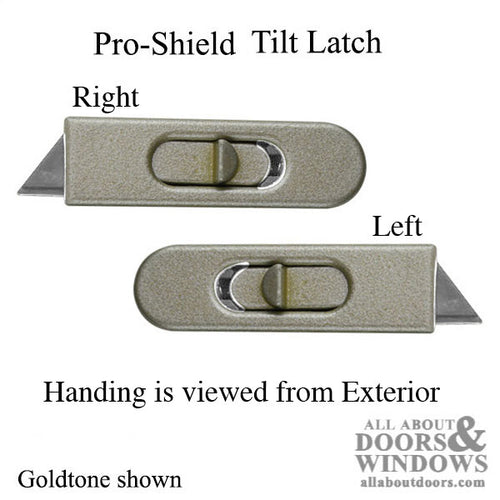

Some companies referred to this as a left hand viewed from the outside.
Other times is is referred to as a right hand viewed from inside.
Please refer to the image to determine which handing you need.
Related Parts:
Tilt Latch Button - 503200
Upper Sash, Right Hand - 503204, with Button
Upper Sash, Left Hand - 503203, with Button
Lower Sash, Right Hand - 503202, No Button (sold separately)
<p class="p1">Weather Shield Part Numbers</p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">Tilt Latch, LOWER Thumb Button Only</p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">(5032001)(5032002) . Code (503200- each)</p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">Left Right Color / Finish </p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">941591 941592 Goldtone 941358 </p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">941589 941590 White 941357</p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;"><span style="font-family:Helvetica;line-height:normal;">941603 941604 </span>Adobe 941606</p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">941593 941594 Bright Brass 941392 </p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">941595 941596 Oil Rubbed Bronze 941389 </p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">941597 941598 Brushed Nickel 941390</p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">941599 941600 Brushed Chrome 941391 </p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;min-height:15px;"> </p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">Tilt Latch, UPPER ( 503000- Pairs )</p><p style="color:rgb(35, 33, 32);font-family:Arial;font-size:13px;line-height:normal;margin:0px;">941316 . 941318 Goldtone Only</p>
