Tilt Latch, Single or Double Hung Vinyl Window, Large Nose, Pair

Part Number: 503021-ALMD
COLOR: - White
Please note, this product has been discontinued.

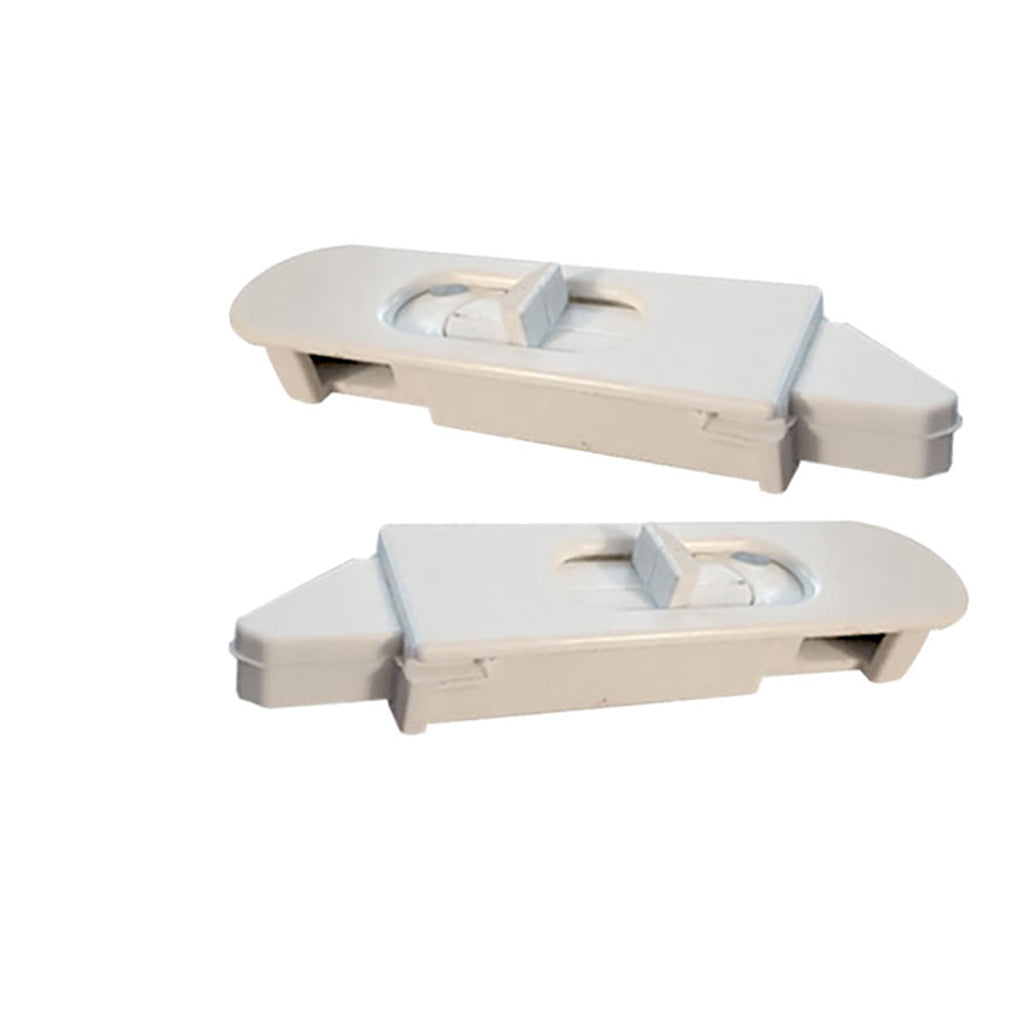

Single or Double Hung Window Tilt-In Latch

Compatible with vinyl, fiberglass, and composite windows. Used by Weather Shield for Visions 3000, Pella 250 Series, and other brands.

Application: Vinyl Single and Double Hung Sliding Windows

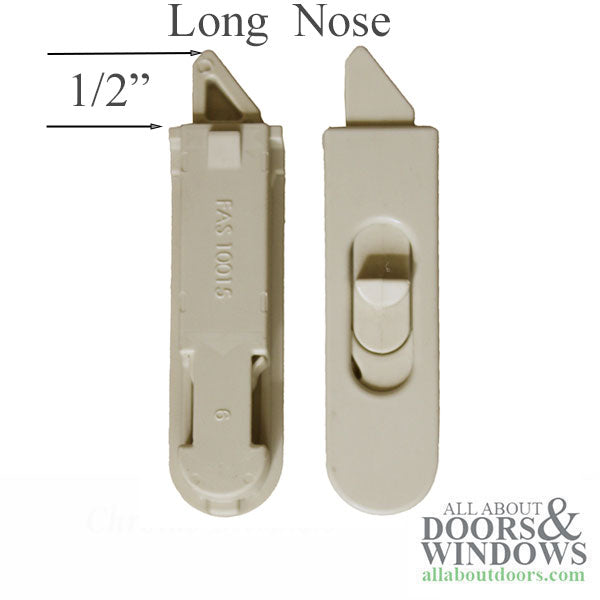

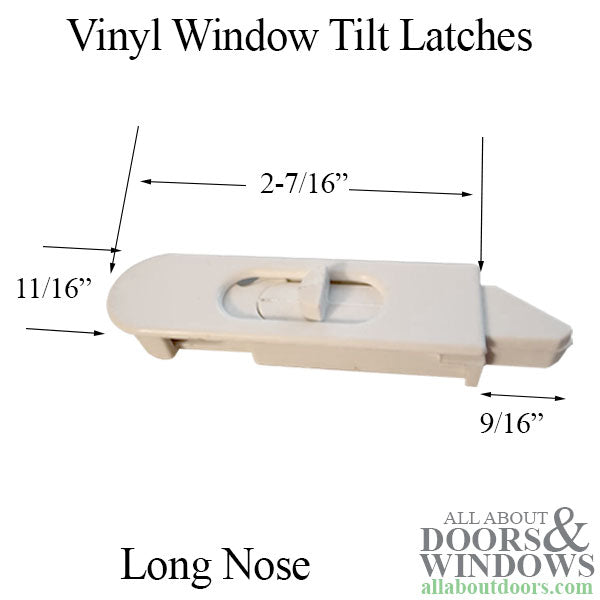

Dimensions: Top Width: 11/16", Top Length: 2-7/16", Nose Offset: 3/16", Nose Projection: 1/2"

Nose Shape: 45 degrees

Thumb Button: Standard or Low Profile

Material: Vinyl/Plastic

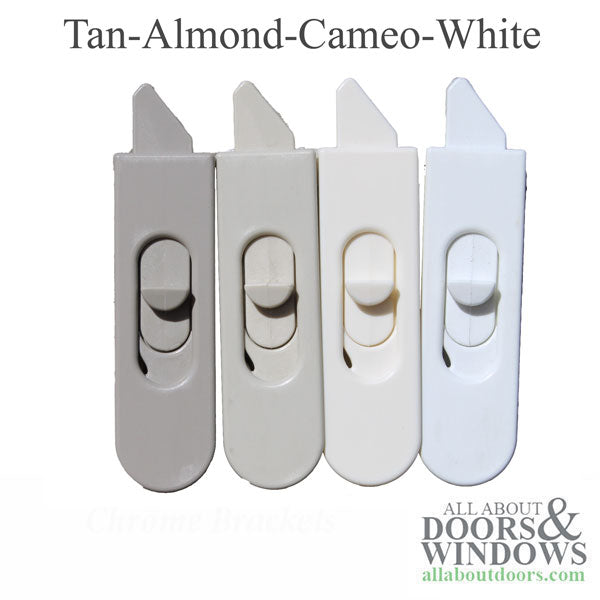

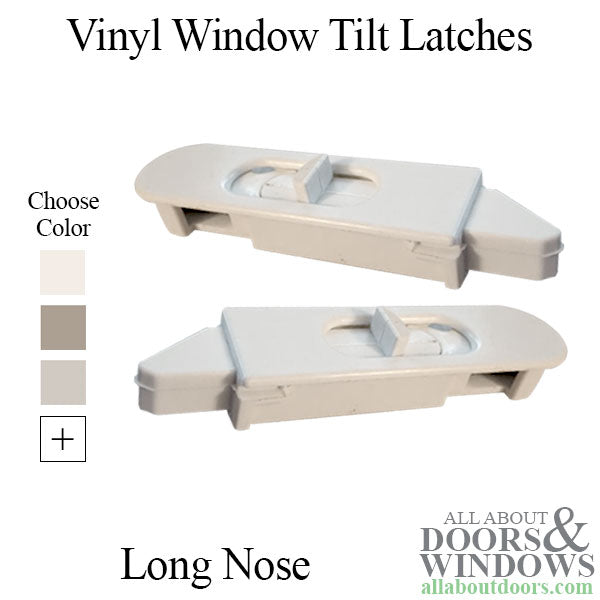

Available Colors: Cameo, Almond, Desert Tan, White

Sold as: Pair (1 Left, 1 Right)

Product Highlights:

Ideal for composite and vinyl windows

Smooth, quiet operation with a stainless steel spring for corrosion resistance

Snug friction fit in check rail

Slide-in installation

Proven design for vinyl, now adaptable to wood without route changes

<p><strong>Single or Double Hung Window Tilt-In Latch</strong></p><p>Compatible with vinyl, fiberglass, and composite windows. Used by Weather Shield for Visions 3000, Pella 250 Series, and other brands.</p><p><strong>Application</strong>: Vinyl Single and Double Hung Sliding Windows</p><p><strong>Dimensions</strong>: Top Width: 11/16", Top Length: 2-7/16", Nose Offset: 3/16", Nose Projection: 1/2"</p><p><strong>Nose Shape</strong>: 45 degrees</p><p><strong>Thumb Button</strong>: Standard or Low Profile</p><p><strong>Material</strong>: Vinyl/Plastic</p><p><strong><u>Available Colors</u></strong><u>:</u> Cameo, Almond, Desert Tan, White</p><p><strong>Sold as</strong>: Pair (1 Left, 1 Right)</p><p><strong><u>Product Highlights</u></strong><u>:</u></p><p>Ideal for composite and vinyl windows</p><p>Smooth, quiet operation with a stainless steel spring for corrosion resistance</p><p>Snug friction fit in check rail</p><p>Slide-in installation</p><p>Proven design for vinyl, now adaptable to wood without route changes</p>
Add to Card
slide

Tilt Latch, Single or Double Hung Vinyl Window, Large Nose, Pair

Tilt Latch, Single or Double Hung Vinyl Window, Large Nose, Pair

Tilt Latch, Single or Double Hung Vinyl Window, Large Nose, Pair

Price: $3.95
