Trilennium 3000 Series Multipoint Lock with Latch Bolts for 6 Foot 8 Inch Doors Right Hand Inswing

Part Number: 499130012-BB
COLOR: - Bright Brass
Please note, this product has been discontinued.

Trilennium 3000 series Multi-Point Lock with Latch Bolts
Standard Trilennium Cross Bore: 2-1/8 inch (use Pinnacle, Eclipse & Grip Hardware)
Optional Crossbore: 1-11/16 ( use Europa, Horizon & Emtek hardware)

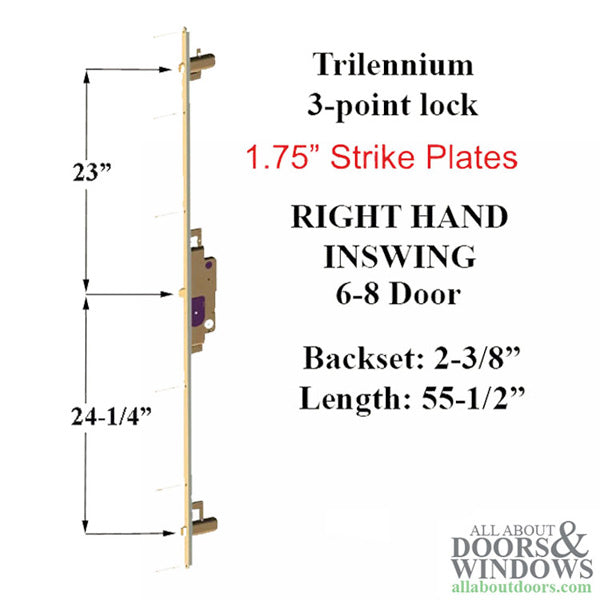

Lock Measurements:
Backset: 2-3/8" (60mm)
Faceplate Width: 1" (25.4mm)
Faceplate Length: 55-1/2" (1410mm) Radius ends
Faceplate Color: 10 Finishes
Deadbolt Throw: 15/16"
Top Latching Bolt: 23"
Bottom Latching Bolt: 24-1/4"
Spindle Diameter: 1/4" (7mm)
Cylinder Type: American with Flat tail piece, Not included
Country of Origin: Made in USA

Handing: As viewed from outside
Handed: Yes, Right Hand Inswing (reversible / see video below)

Operation:
Handle moves down only
To lock - Use key or thumb turn - Extends Latch to Deadbolt function
To unlock - Use Key Outside or Thumb Turn / Lever Inside
Panic Release: Yes, Pressing down on inside handle will unlock

Note:
The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8"cross-bore used on Pella and other doors with larger holes.
