The Trilennium 3070 Series Multipoint Lock features locking latch bolts, providing enhanced security and durability. Commonly used by Pella and other manufacturers, this lock is sold as an assembly only and does not include strike plates.

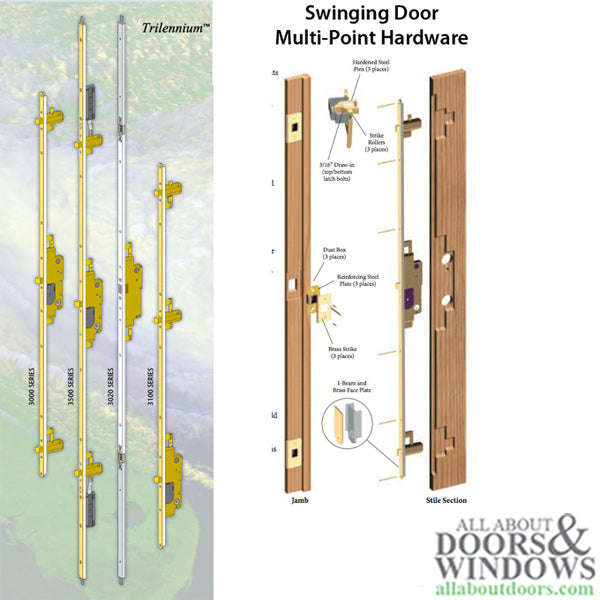

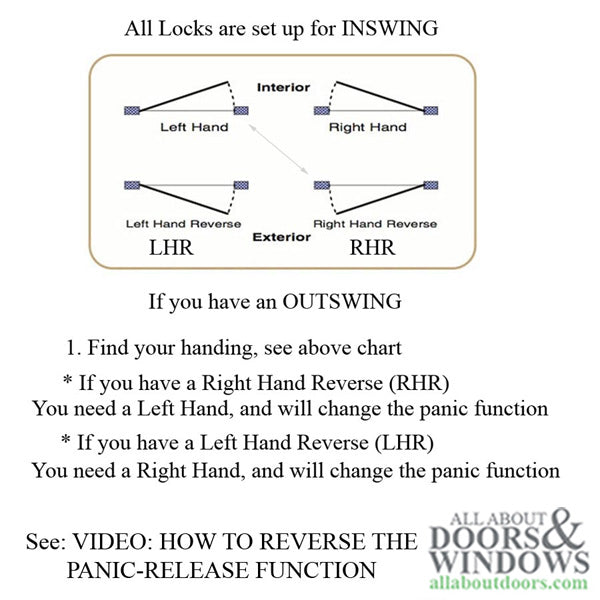

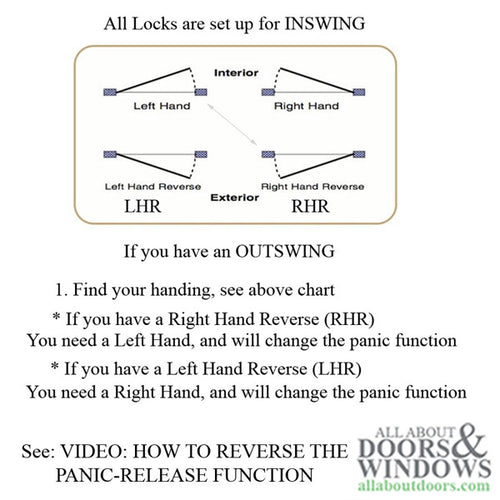

IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function  and latches need to be changed before installation.

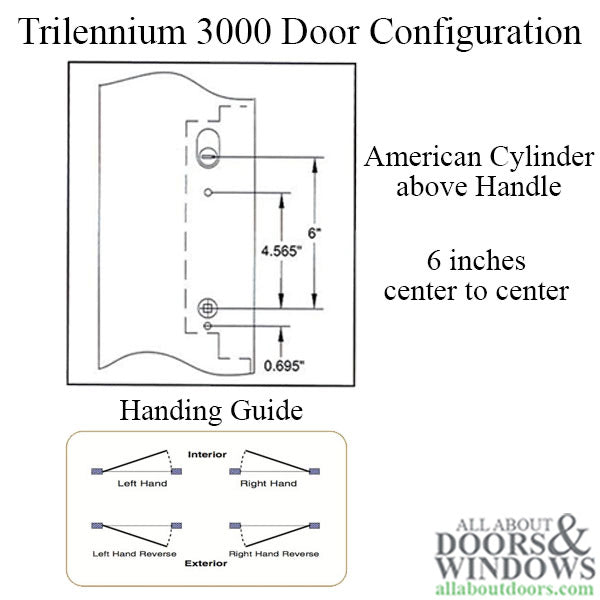

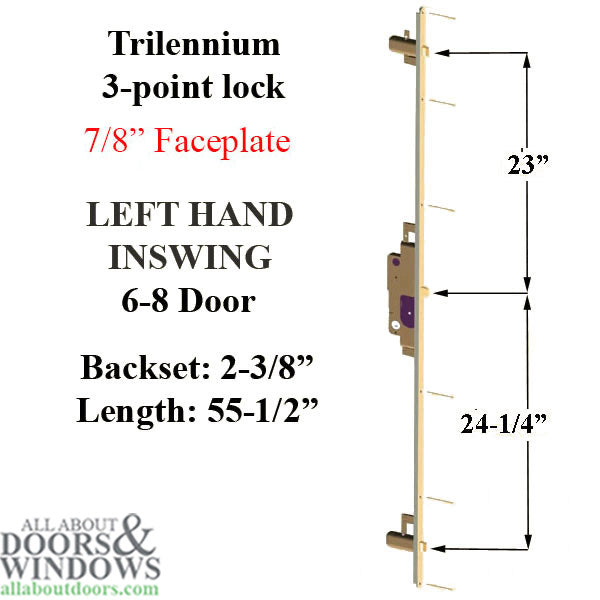

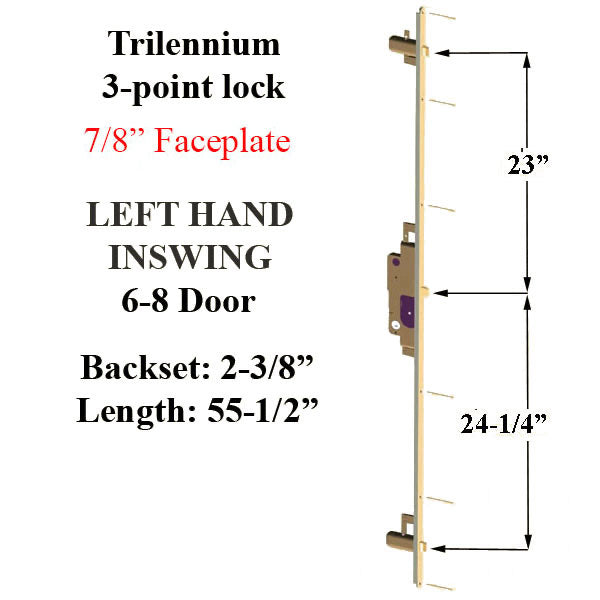

Lock Measurements:

Backset: 2-3/8 (60 mm)

Faceplate Width: 7/8 inch (22mm)

NOTE: Faceplate widths can be 7/8 or 1 inch wide

Faceplate Length: 55-1/2 inch (1410 mm) Radius ends

Faceplate Color: Stainless Steel

Deadbolt Throw: 15/16 inch

Top Latching Bolt: 23 inch

Bottom Latching Bolt: 24-1/4 inch

Spindle Diameter: 1/4 inch ( 7 mm)

Cylinder Type: American with Flat tailpiece

Made in USA

Handed: Yes, Set up for Left or Right Hand doors

Handing: Left-handed Inswing

Note: As viewed from outside, hinge determines handing - If hinge is on Left, it is Left hand door.

Operation:

Handle moves down only

To lock - Use key or thumb turn - Extends Latch to Deadbolt function

To unlock - Use Key  Outside or Thumb Turn / Lever Inside

Panic Release: Yes, Pressing down on inside handle will unlock door

HARDWARE NOTE:

Standard Cross Bore: 2-1/8 inch (Use Trilennium Pinnacle, Eclipse, Rectangular, Curved, or Grip Hardware)

Optional Crossbore: 1-11/16 (Use handle plate width 1-7/8 or wider)

The Horizon, Europa and Emtek plates are only 1-7/8-2" inches wide and will not cover the 2-1/8 inch crossbore used by Pella and other doors with larger holes

Rocky Mountain 2-1/2 wide plate fits either crossbore.

Related Parts:

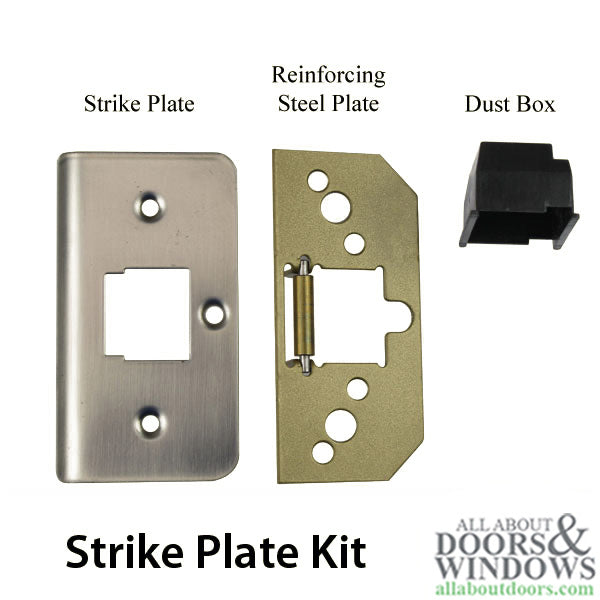

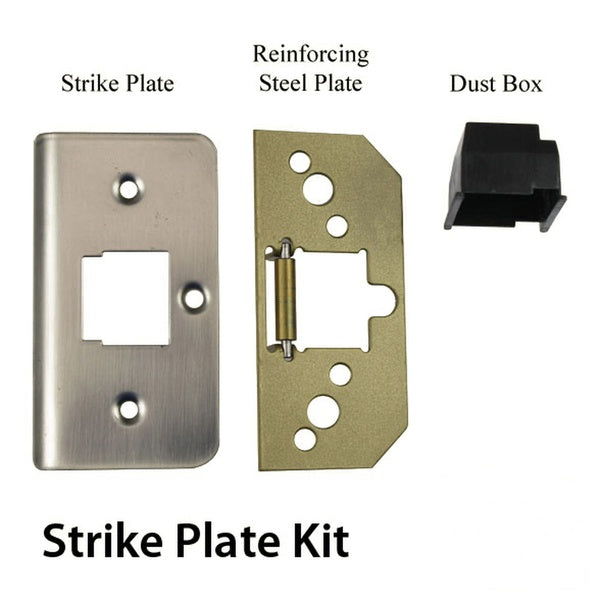

499130054 - Optional: 3 strikes, 3 Reinforcing plates, 3 Dust Boxes with Screws
