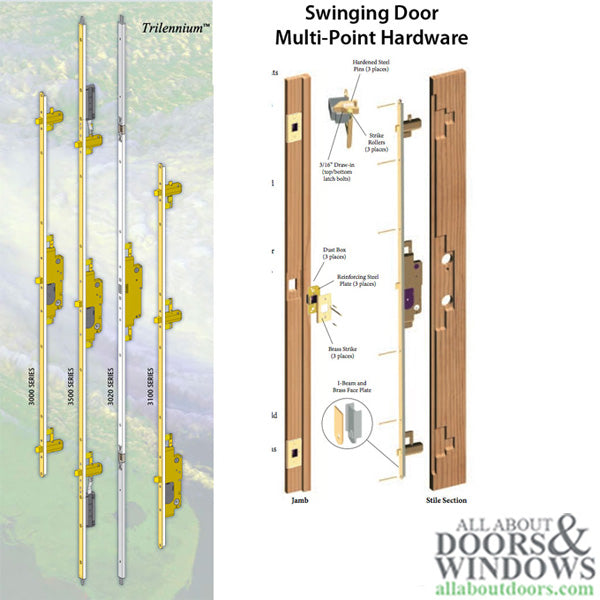

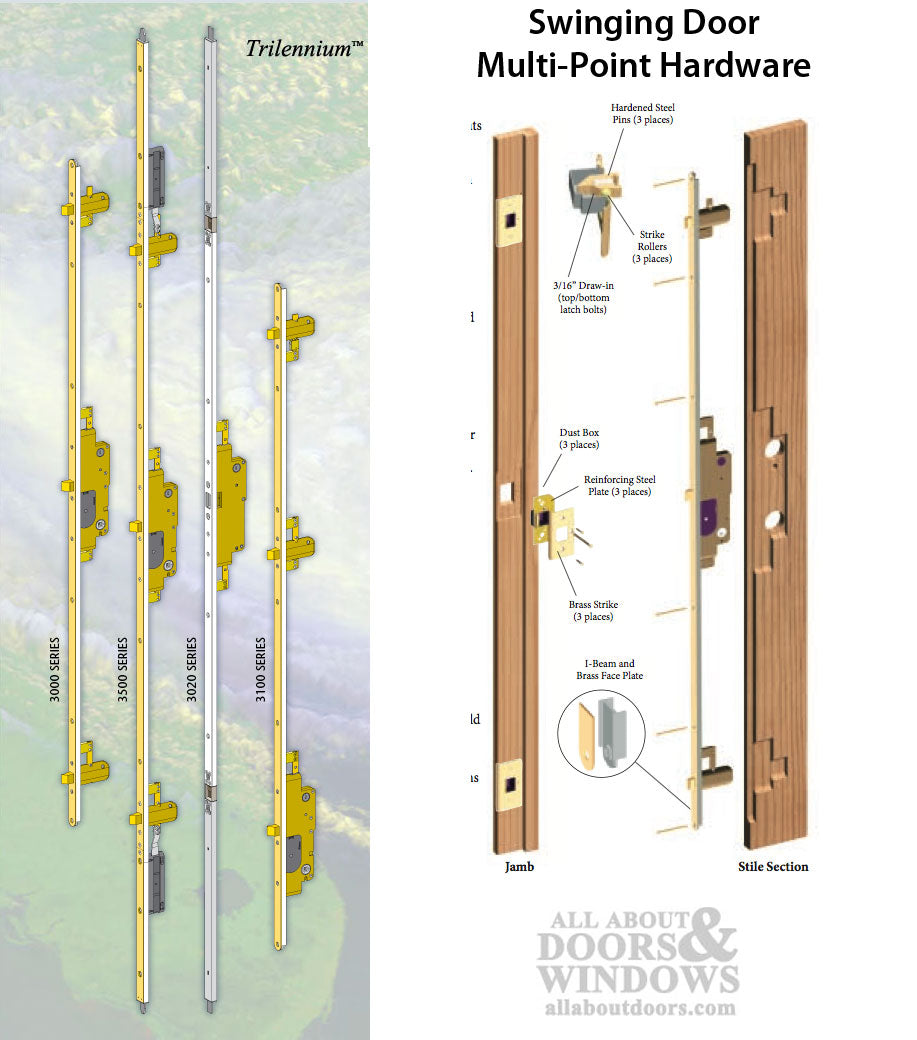

Trilennium 3070 series multipoint lock with locking latch bolts used by Pella and others.

No Strike Plates, Lock assembly only

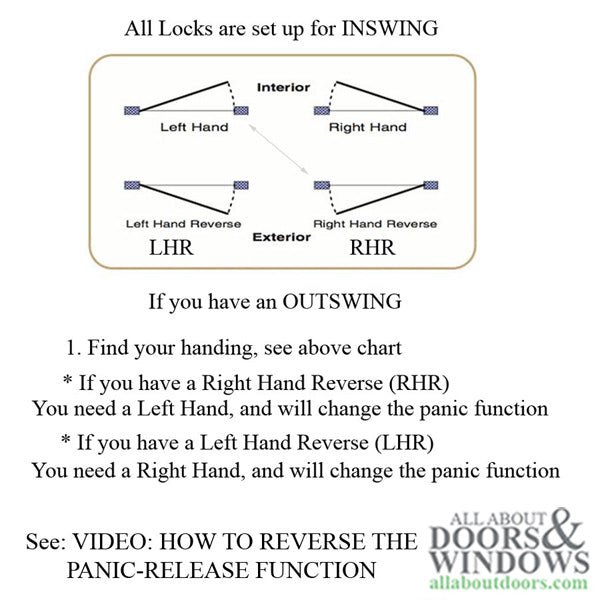

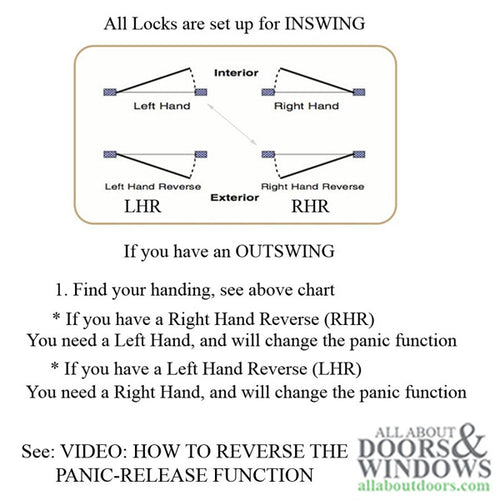

IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function  and latches need to be changed before installation.



Lock Measurements:
Backset: 2-3/8 (60 mm)
Faceplate Width: 7/8 inch (22mm)
NOTE: Faceplate widths can be 7/8 wide or 1 inch
Faceplate Length: 55-1/2 inch (1410 mm) Radius ends
Faceplate Color: Stainless Steel
Deadbolt Throw: 15/16 inch

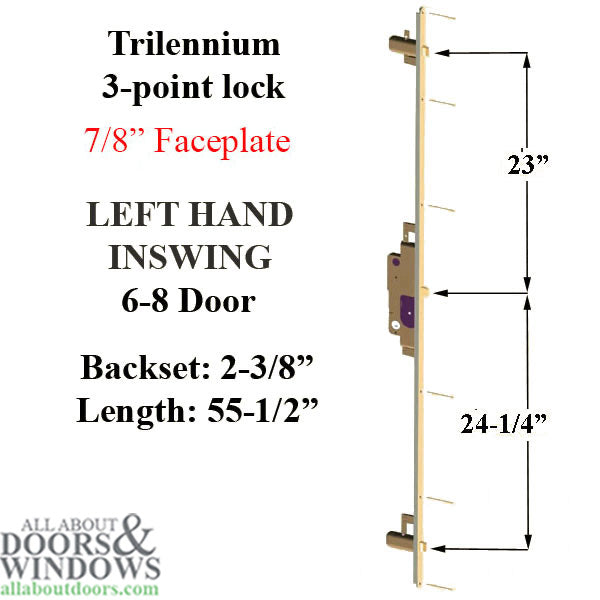

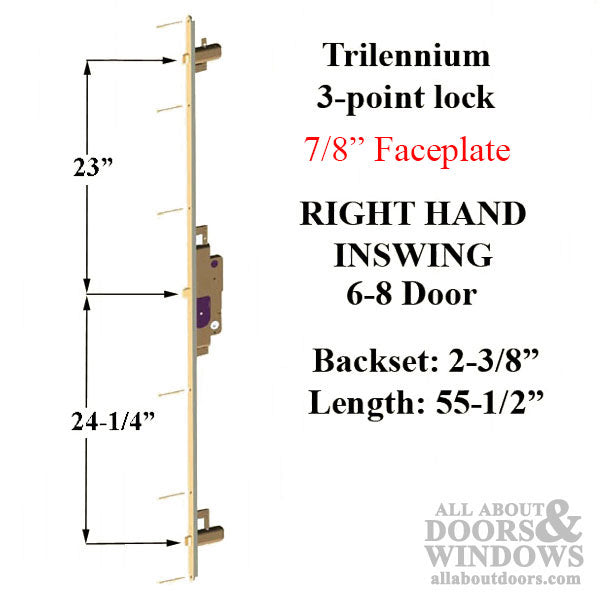

Top Latching Bolt: 23 inch
Bottom Latching Bolt: 24-1/4 inch
Spindle Diameter: 1/4 inch ( 7 mm)
Cylinder Type: American with Flat tail piece

Made in USA

Handed: Yes, Set up for Left or Right Hand doors

Handing: Right-handed Inswing
Note: As viewed from outside, hinge determines handing - If hinge is on Right, it is Right hand door.

Operation:
Handle moves down only
To lock - Use key or thumb turn - Extends Latch to Deadbolt function
To unlock - Use Key  Outside or Thumb Turn / Lever Inside
Panic Release: Yes, Pressing down on inside handle will unlock door

HARDWARE NOTE:

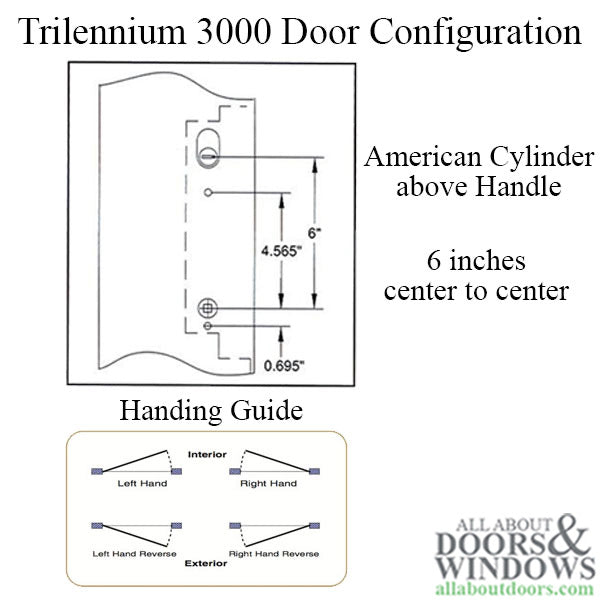

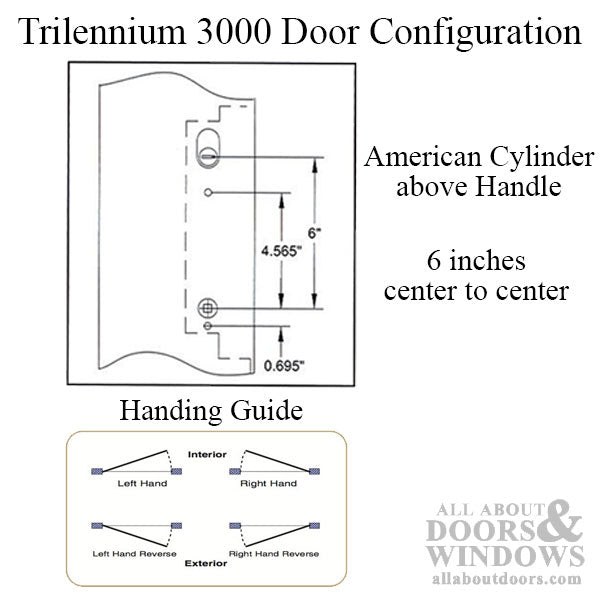

Standard Cross Bore: 2-1/8 inch (Use Trilennium Pinnacle, Eclipse, Rectangular, Curved or Grip Hardware)

Optional Crossbore: 1-11/16 (Use handle plate width 1-7/8 or wider)

The Horizon, Europa and Emtek plates are only 1-7/8-2" inches wide and will not cover the 2-1/8 inch crossbore used by Pella and other doors with larger holes

Rocky Mountain 2-1/2 wide plate fits either crossbore.

Related Parts:

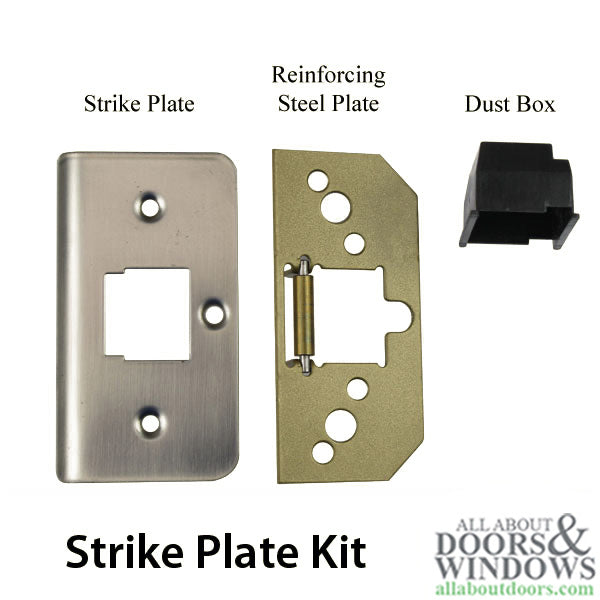

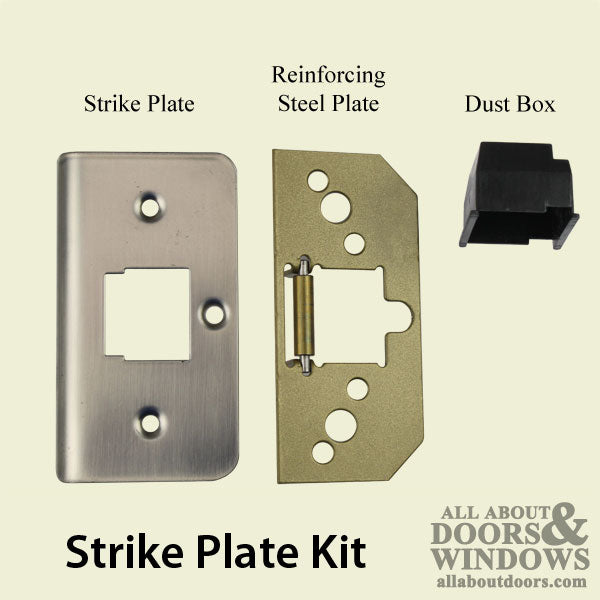

499130054 - Optional: 3 strikes, 3 Reinforcing plates, 3 Dust Boxes with Screws
