Trilennium 3020 series Inactive Panel Multi-Point Shootbolt Lock

IMPORTANT NOTE:

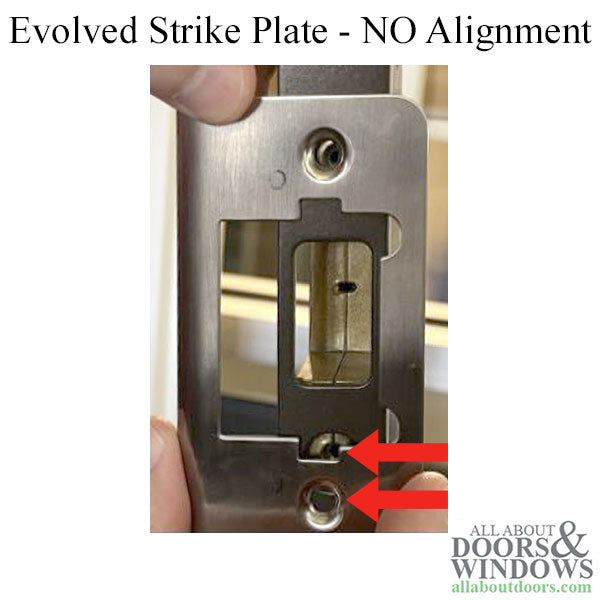

Endura Products is alerting all customers who use the Trilennium TL3020 Multi-Point Locking System that the new Evolved Strike Plate System is incompatible with this lock.
The location of the mounting holes on the Evolved Strike Plate do not align with the ports around the TL3020 bolt receivers, which are used to secure the strike plates along the lock.
Endura will continue to support these locks with the original Trilennium strike plates.
For all other Trilennium active locking systems (Trilennium TL3000, Trilennium TL3070 and Trilennium TL3500), customers should utilize the new Evolved Strike Plates.
(see image 4 for visual example)

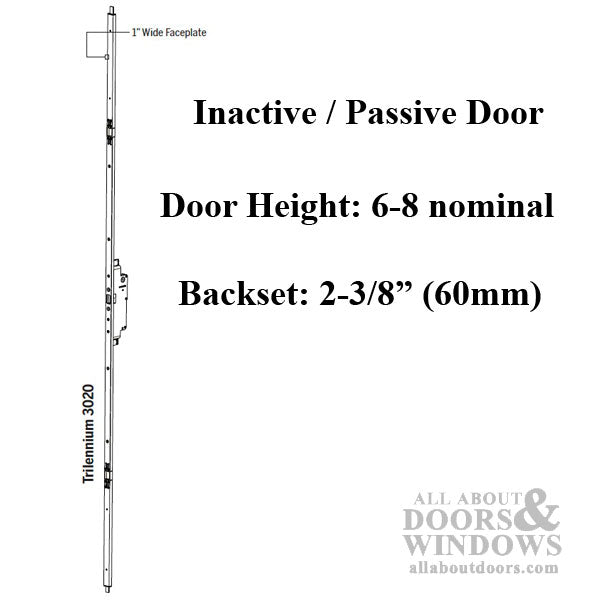

Size: 6-8 Door (The passive locks are custom sized to fit door panel height)
Handed: Non-Handed (can go on right or left-handed doors)
Color/Finish: Bronze

Please include the following in the comments box when you place your order:

1. Exact Size of Door Panel
2. Desired Handle Height (35" & 36" are most common)
3. Backset: 2-3/8" is standard, (2-3/4" is available with up charge)

Non-stock standard lead time: 2 weeks
Compatible Handle set: 40065 - Trilennium Peachtree Passive T-Turn Drive, 3020 Series Handle Set

Strike plates - see part 499130059
