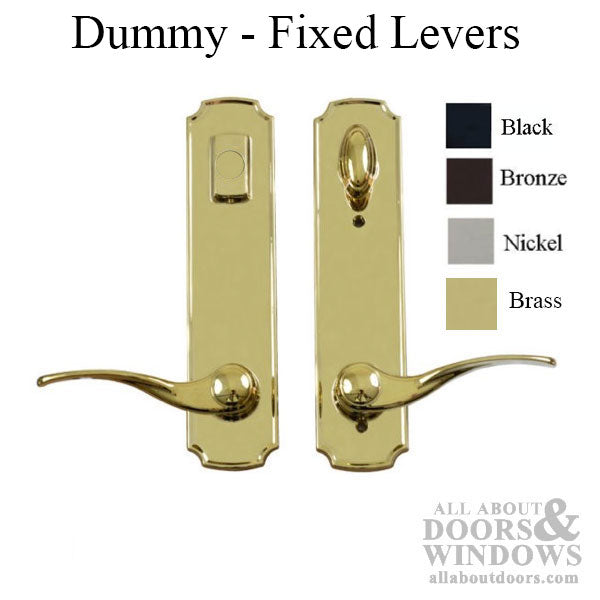

The Trilennium Eclipse Handle Set with Fixed Dummy 6" PZ is crafted for decorative use on non-operational doors. Its sleek design complements any door setup, adding an upscale touch.
1-3/4 inch Door, Eclipse Handle Set
Function: Dummy Trim with Fixed Levers

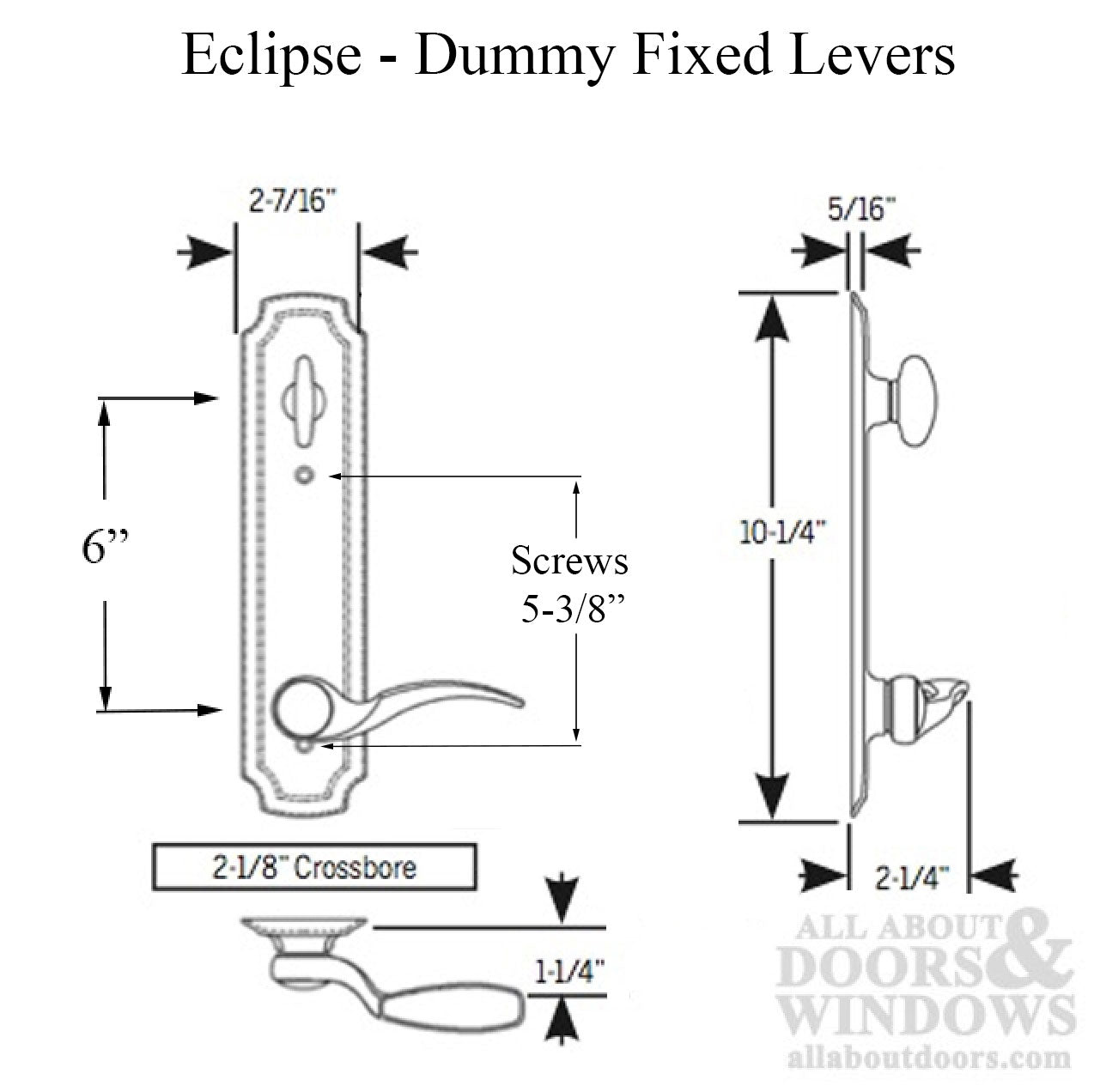

Handle to Cylinder Centers: 6 inch (152.4mm)
Installation Screw Hole Spacing: 5-3/8 inch (136mm)
Door Thickness: 1-3/4 inch (45mm)
Escutcheon Plate Width: 2-7/16 inch (61.9mm)
Escutcheon Plate Length: 10 inch (254mm)
Color / Finishes: Choose Options
Note 1:
Standard bore on most W&F or Endura hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handlesets are only 2 inches wide and will not cover the larger holes.
Cross Bore: 2-1/8 inch (Pinnacle, Eclipse & Grip Hardware)
Optional Cross Bore: 1-11/16 (Emtek & Horizon hardware)
