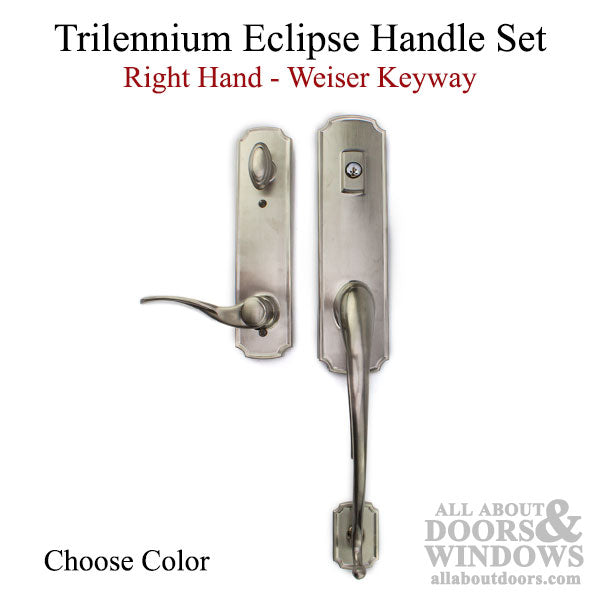

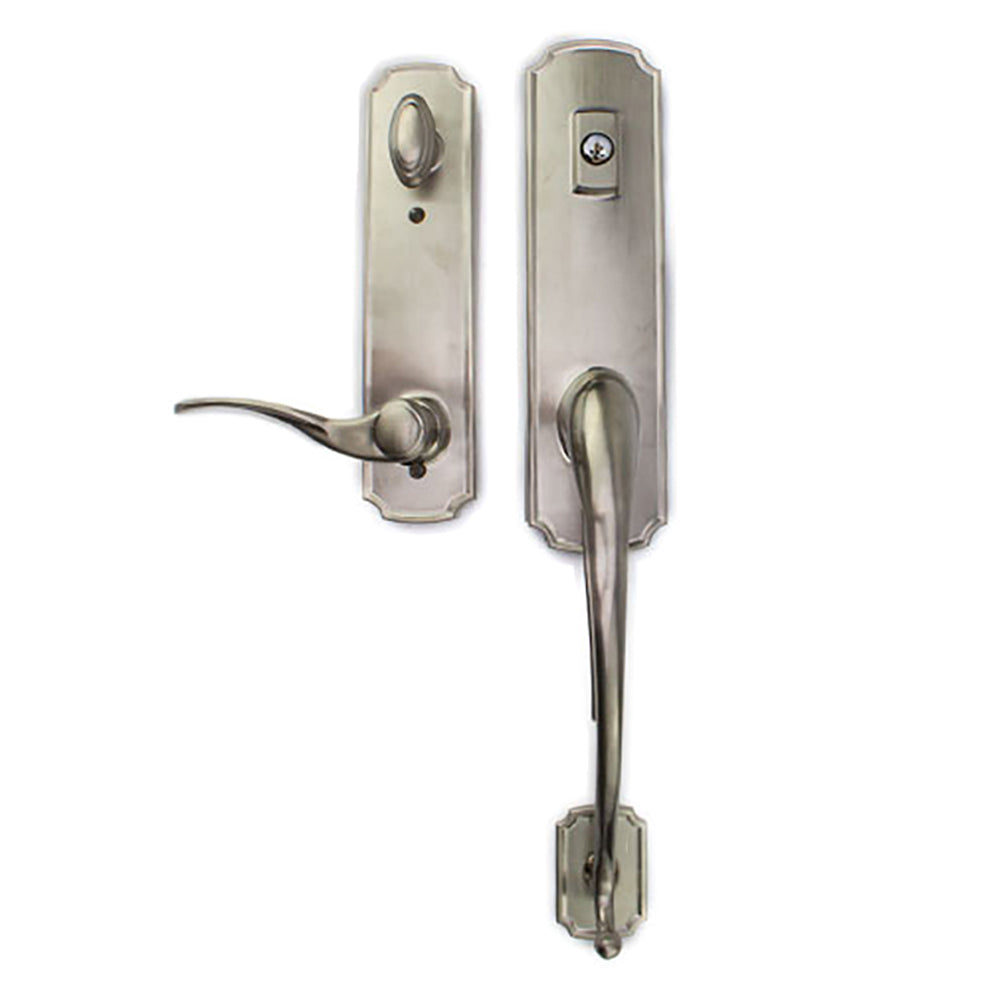

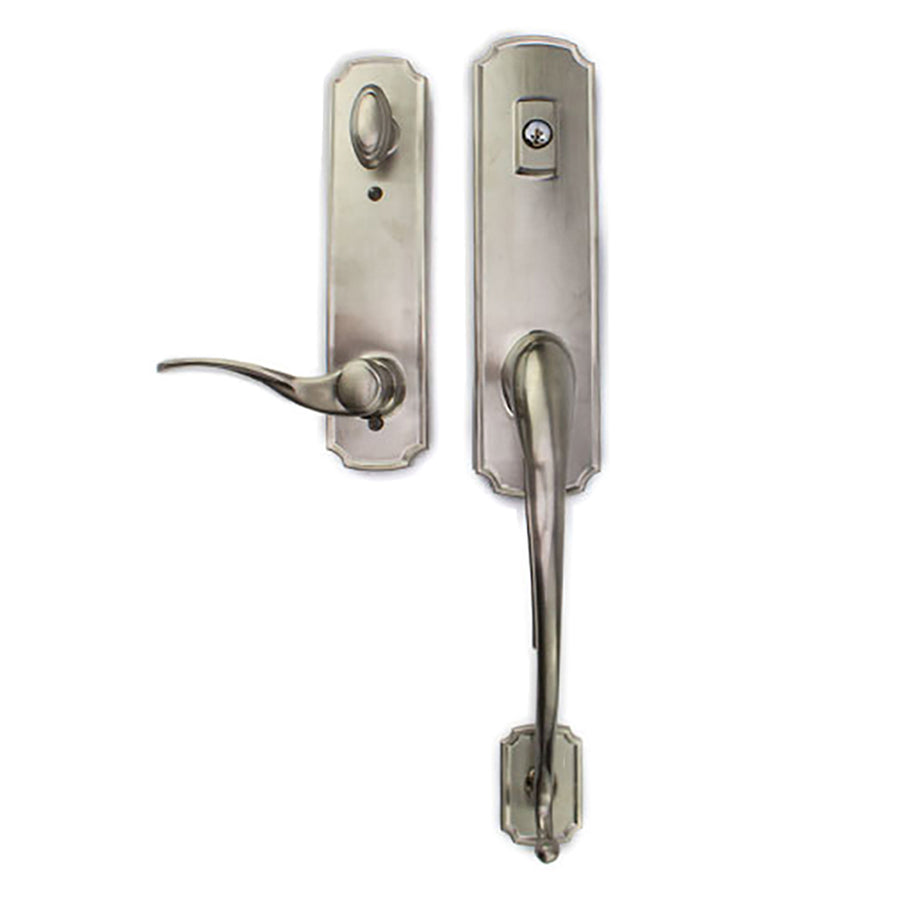

Trilennium Eclipse Handle with Grip, Right Hand, Kwikset/Weiser - Choose Color

Part Number: 499130100-WS-VBRZ Price: $399.95
COLOR: - Victorian Bronze
Trilennium 3000 Series Grip Handle for active Multi-Point Lock
Used by W&F, Peachtree IPD, Pella Entry Doors and others

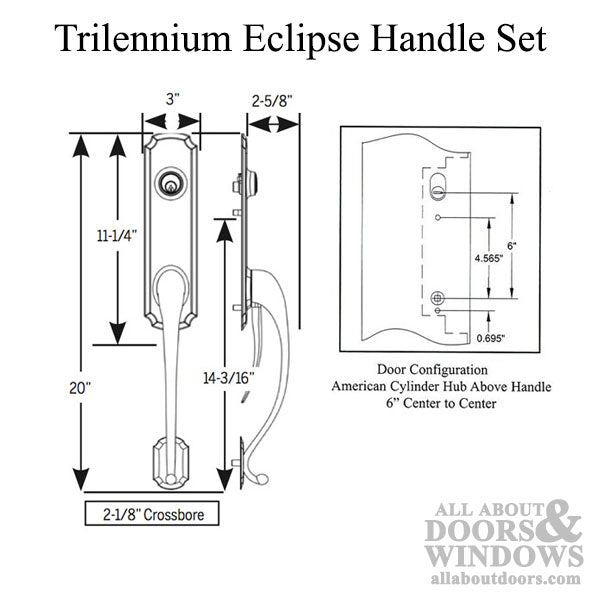

Door Cross bore: Standard 2-1/8 inch
Handle to cylinder PZ: 6 inch
Handed: YES, Right Hand
They are handed because of lever and torque body inside lock
Keyway: Weiser 5 Pin Lock works with Kwikset, Old Dexter/ Master and some Weslock
Escutcheon Plate Width: 2-7/16 inch
Escutcheon Plate length: 10-1/4 inch
Door Thickness: 1-3/4 inch, optional 2-1/4 inch Special Order

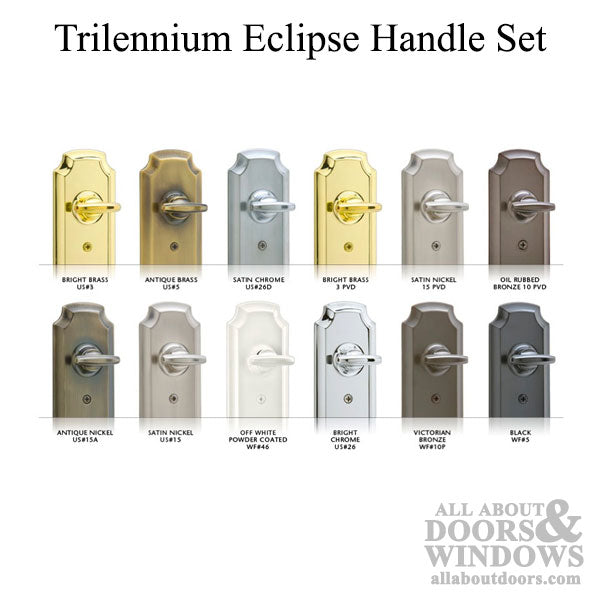

Color / Finish:
Brushed/Satin Nickel

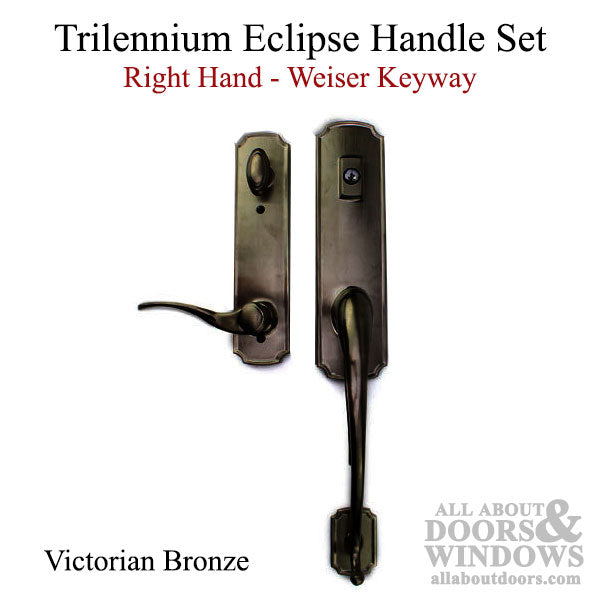

Victorian Bronze
Black
Bright Brass

Please note that these handle sets are special order and cannot be returned or exchanged.
Some handle sets may take 6 to 8 weeks for delivery.

NOTE:
Lock cross bore on doors vary, some are 1-11/16, others 2-1/8 inch.
Pella Standard entry door with Trilennium locks used 2-1/8 inch Cross Bore
Peachtree IPD used 1-11/16 Cross Bore
Pinnacle, Eclipse & Grip Hardware will cover all bores
Emtek & Horizon hardware is 2 inches wide and covers optional 1-11/16 Crossbore only
