Adams Rite Steel Security Ornamental Storm Door Trim Kit
Use the arrows or swipe left to view all images for this product
REMOVAL AND INSTALLATION MANUAL

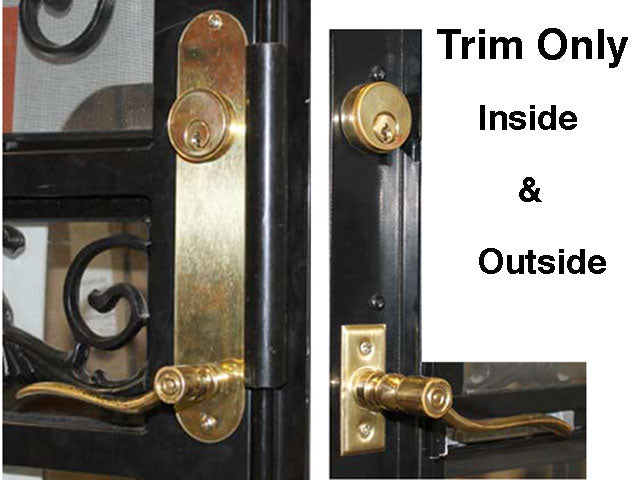

Adams Rite Steel Security Ornamental Storm Door Trim Kit - BrassA

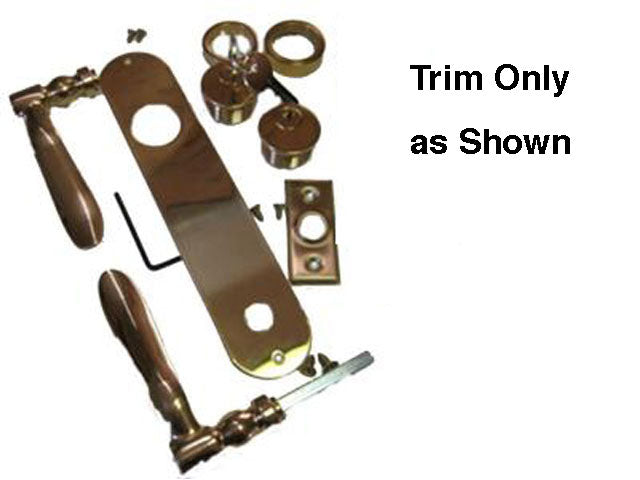

Includes Handles, escutcheon plates and keyed cylinders

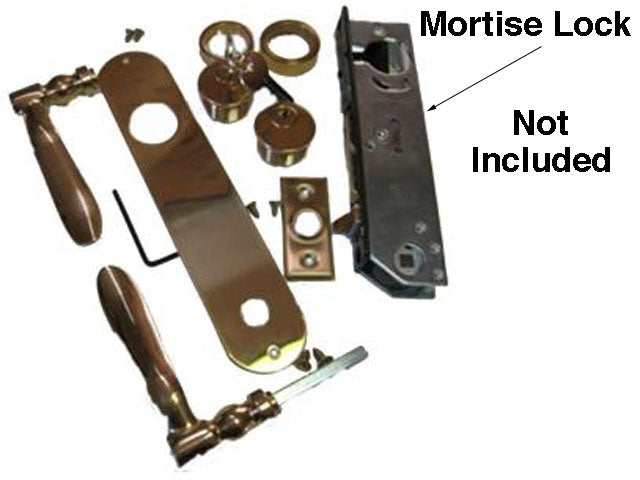

Does NOT include - Internal Mortise lock or Latch Cover plate
Dimensions:A
Escutcheon Plate 1-3/4 x 9 inches;A
Hole spacing from center of key Cylinder to center of handle: 5-1/4 inchesA
Handle Hole Diameter: 1/2 inch
Cylinder Hole Diameter: 1-1/8 inchA
NOTE: Hole for cylinder is off center; Handle hole is CenteredA
Inside Handle Plate: 1-1/16 x 2-1/2 inches
Cylinder Length: 13/16 inch; Adams Rite Tail piece
Keyway: Yale Y1, 5 pin Rekeyable
Related Hardware:
40085 - Complete Hardware Kit - Brass - Left
40086 - Complete Hardware Kit - Brass - Right
40087 - Trim Only; Handles and Plate - Brass
40088 - Mortise Lock Body, Right Hand
40089 - Mortise Lock Body, Left Hand
