This item has been discontinued. Replace with 6-33279-07-0-BL

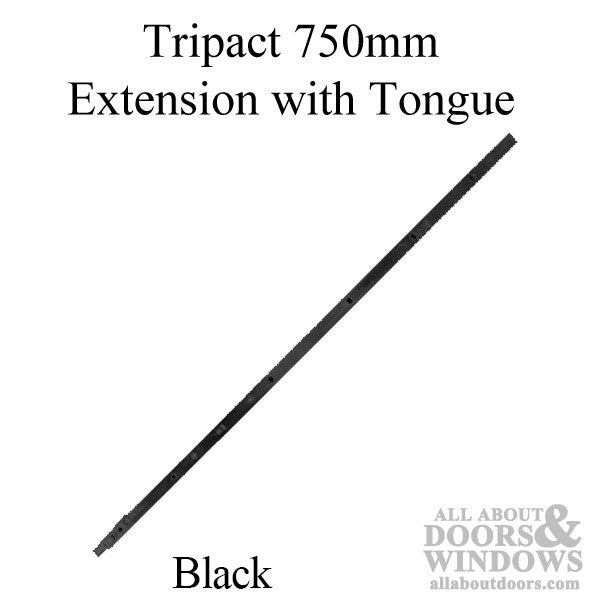

GU Europa 750mm Tripact Extension with Tongue locking Point
This extensions adds 1 additional locking point ( tongue ) for taller doors.
This extension is a stand alone, additional extensions can not be added to the top ( No Serrated Teeth)
If you need the tongue higher on the door you will need a plain extension and then add the additional Tongue.
Used with Tripact Europa Series Key below Lever
Measurements in inches:
Faceplate width: 5/8 inch ( 16mm)

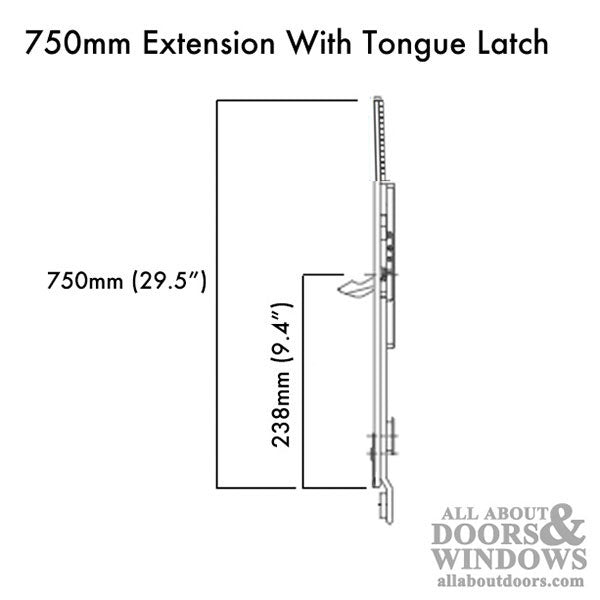

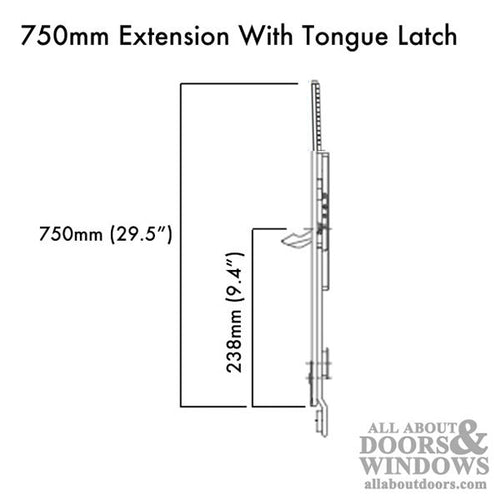

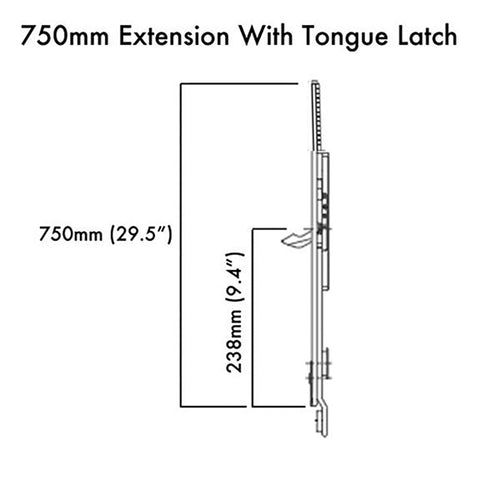

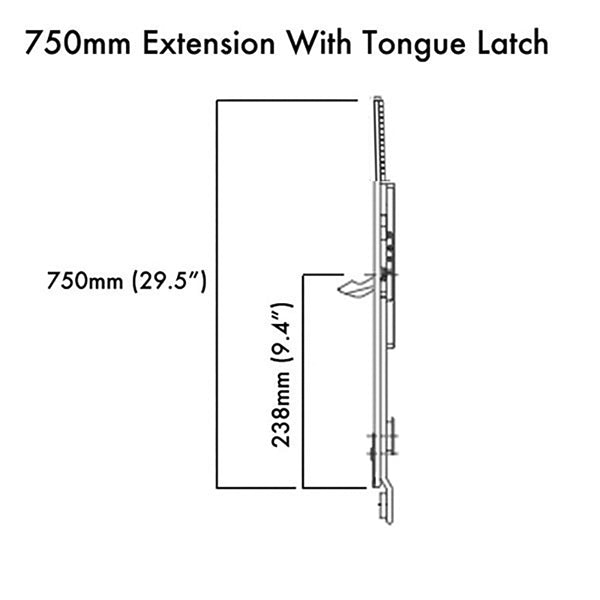

Overall Faceplate Length: 29-1/2 inch (750mm)
Top Tongue position: 9 inches (229mm) from bottom of faceplate
Color / Finish: Black
Adjustable Height by cutting top extension
Minimum Distance from first tongue 16 inches
Maximum Distance from first tongue 22-3/8 inches

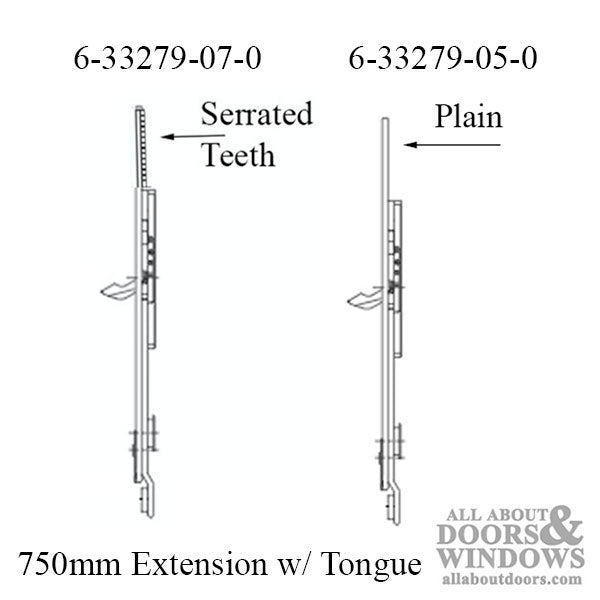

Note: Extensions come plain or with locking point for Roller, Tongue or Hook versions
Related Parts:
G-16790-05-0-1R 500mm Extension NO Lock Point - Standard
6-33279-05-0-1 750mm Extension w/ locking point
6-33279-07-0 750mm Extension w/ locking point & Serrated Teeth
