Truth 13.17 Awning Window Hinge and Track, Pairs 26" - E-Gard® Steel

Part Number:13.17-KIT-EG Price: $27.86

Description
Additional Information

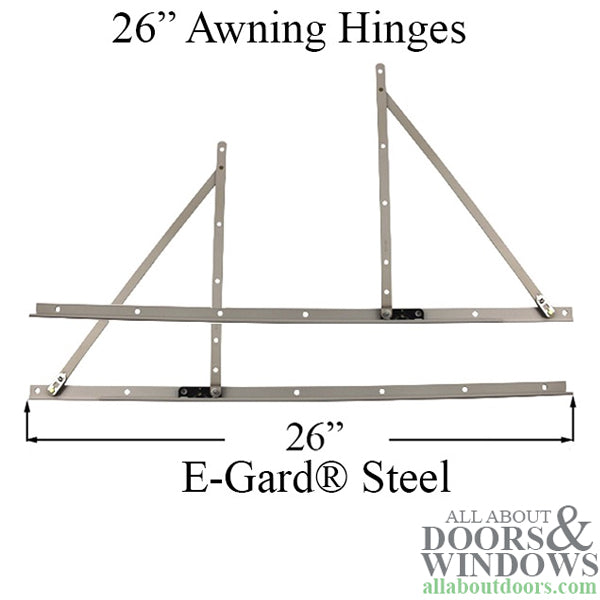

Awning Window Hinge and Track, Pairs 26" - E-Gard® Steel

Amesbury Truth 13.17 series concealed awning window hinge assembly. Stainless Steel Track and E-Gard steel corrosion resistant hinge arms

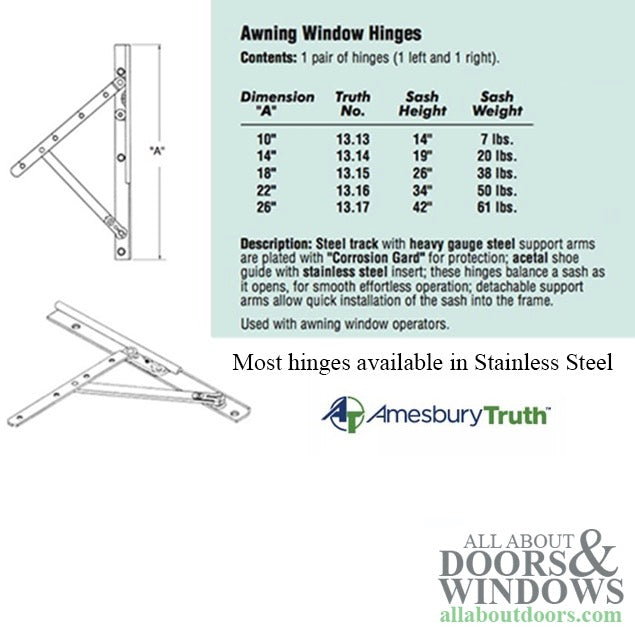

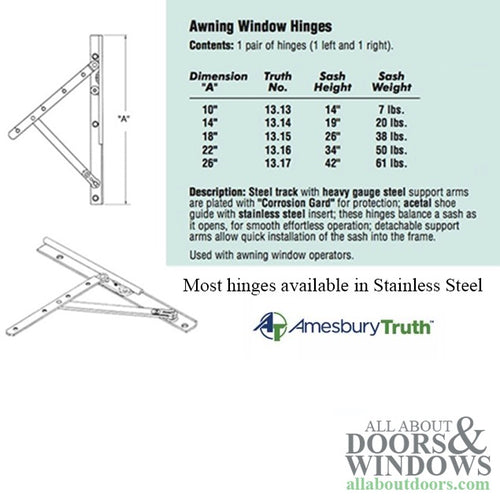

Specifications:

Truth Part: 13.17

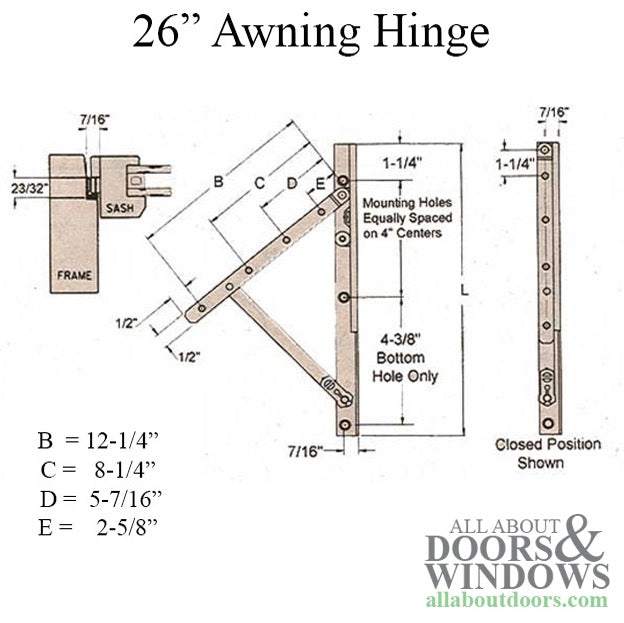

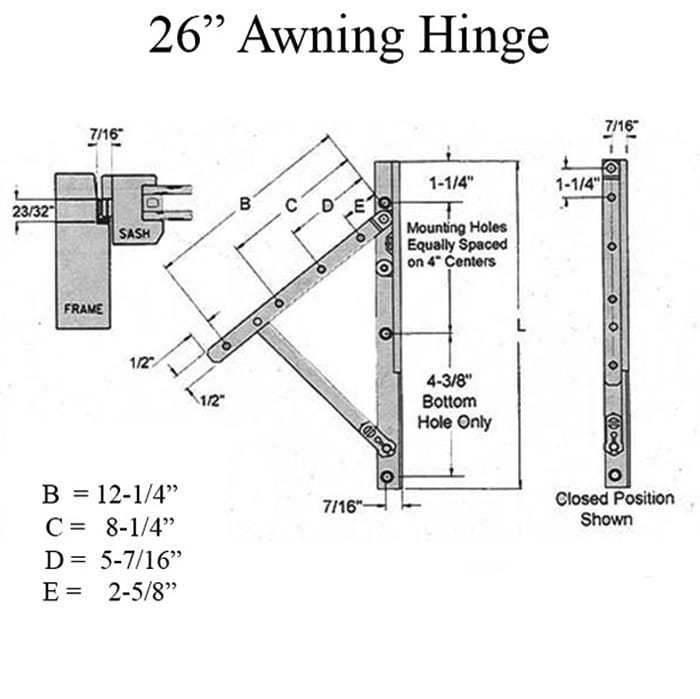

Track Dimension: 26 Inch
Sash Weight: 61 Pounds Maximum
Sash Height: 34-42 Inches

Priced and sold in pairs.

Contents: Includes 1 left and 1 right hand Track and Hinge arms, No Screws

Truth Hardware awning and casement window hinges are handed and come packed one left and one right per package. The window hinges have an E-Gard(R) bottom track with two E-Gard(R) support arms and a plastic acetal slide shoe. The support arm has a brass snap stud for ease of installation or removal of the window sash. The Truth Hardware awning window hinges are used by many window manufacturers. Recommended Screws: Wood #7 x 3/4 inch Phillips flat head sheet metal screws to match track material. Recommended Screws: PVC #7 x 3/4 inch Phillips flat head, Undercut sheet metal screws to match track material. Actual screw size may vary depending on application and window material.
