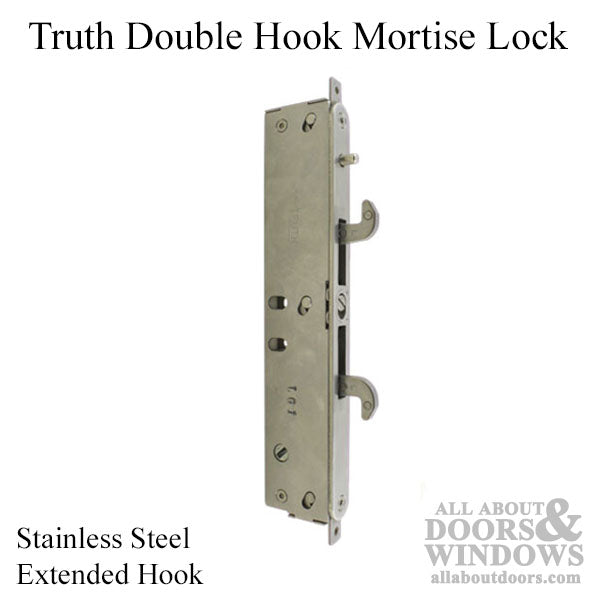

Nexus lock by Truth 13317 Double Hook Mortise Lock, Short Face with Extended hooks in Stainless Steel

Manufacturer: Truth Hardware
Model: Nexus 13317 2-point lock
Description: Stainless Steel Adjusted Range Two-Point Mortise Locks

Application: For Sliding Glass Doors
Stainless Steel Construction
Adjusted Range: Extended Adjustment .36 (9.1mm) to .49 (12.4mm)
Two-Point Locking Hook
Backset: 1-1/16 inch
Part: Male End w/ 2 Locking Hooks*

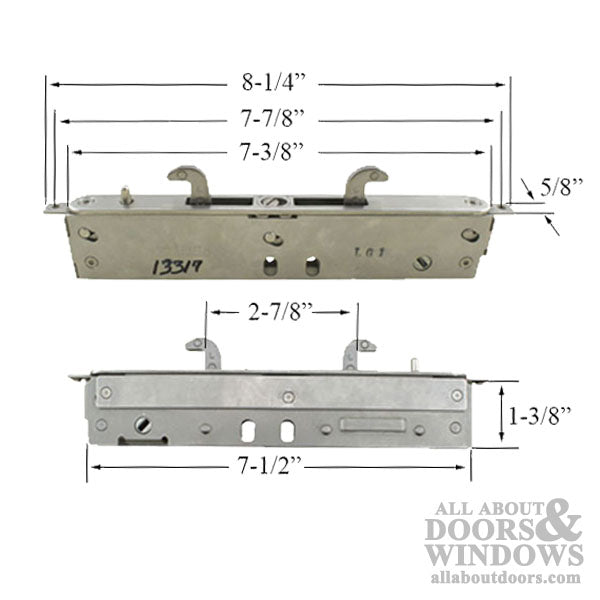

Overall Dimensions: 5/8" x 1.5" x 8.25"
2-Hole Mounting
*Does not Include Female Receiver

Priced and Sold Each.

Related Truth 2 point Lock, Short Face, Adjustable Hooks -
13314- Steel, Standard Adj. .25(6.3mm) to .38 (9.6mm)
13315-Stainless, Standard Adj. .25(6.3mm) to .38 (9.6mm)

13316-Steel, Extended Adj. .36(9.1mm) to .49 (12.4mm)
13317-Stainless, Extended Adj. .36(9.1mm) to .49 (12.4mm)



This product is similar to or the same as the following part numbers in these brands:<br/> Truth: 13317.1
