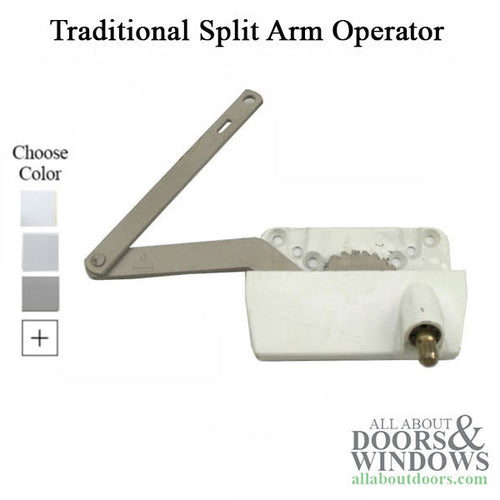

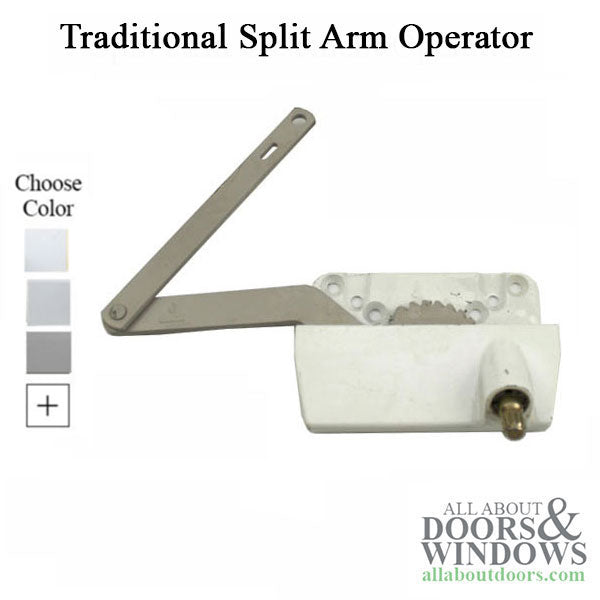

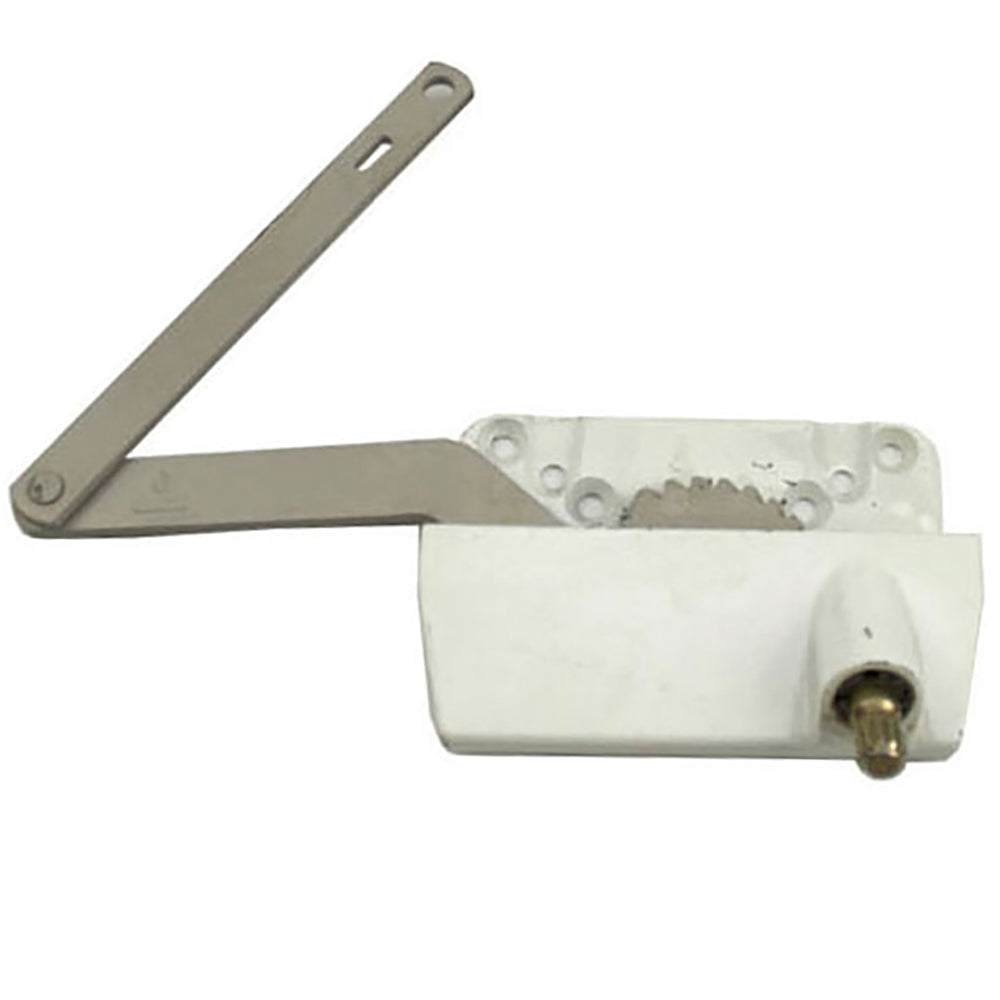

Truth 15.30 Traditional Split Arm Casement Operator, Split Arm, RH

Part Number: 15.30-TRA-RH-EG-CAM
COLOR: - Cameo / E-Gard Plated
MATERIAL: - Cameo / E-Gard Plated
Truth 15.30 Traditional Split Arm Operator has been discontinued and limited to existing inventory.
The 15.30 Ellipse with a softer more modern look is the replacement - see additional images
Truth Traditional Dyad Split Arm Casement Operator, Sill Mount for wood or vinyl windows
Used by Weathershield on their Visions 2000 vinyl casement window and many other companies

Application: Casement windows, Sill Mount
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Markings: Main Body, Truth # 45135
Markings: Straight Arm link, Truth # 31850
Arm Length: 5 inch
Link Length: Rivet to Stud post Hole: 4-1/2 inch
Link Mount: Mounted on Top of main arm
Detach clip: None

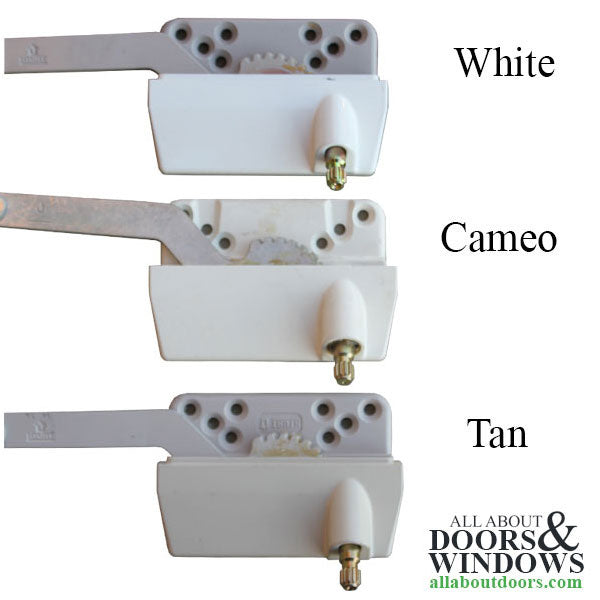

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard or stainless steel arms

Sold Each, No screws or crank handle

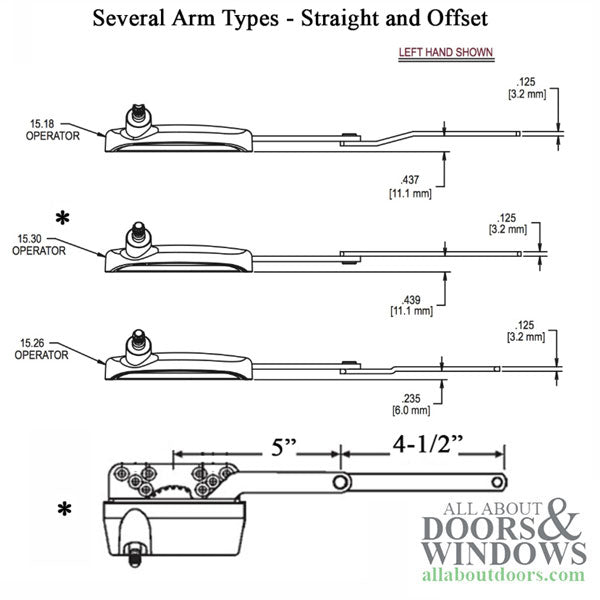

Note 1: There are 4 configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

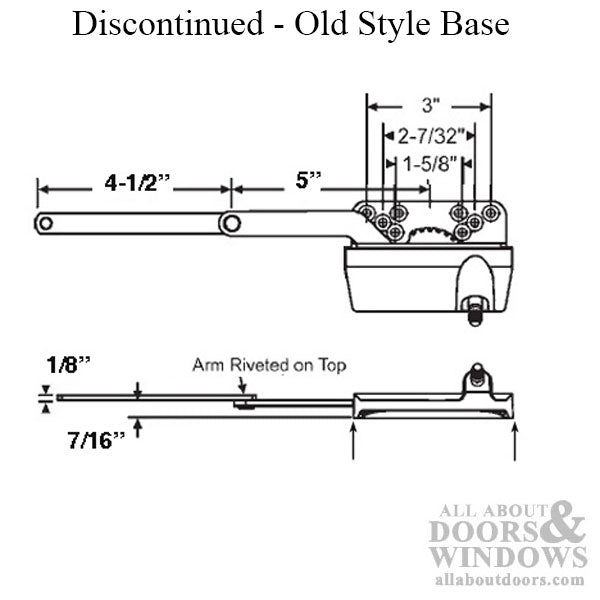

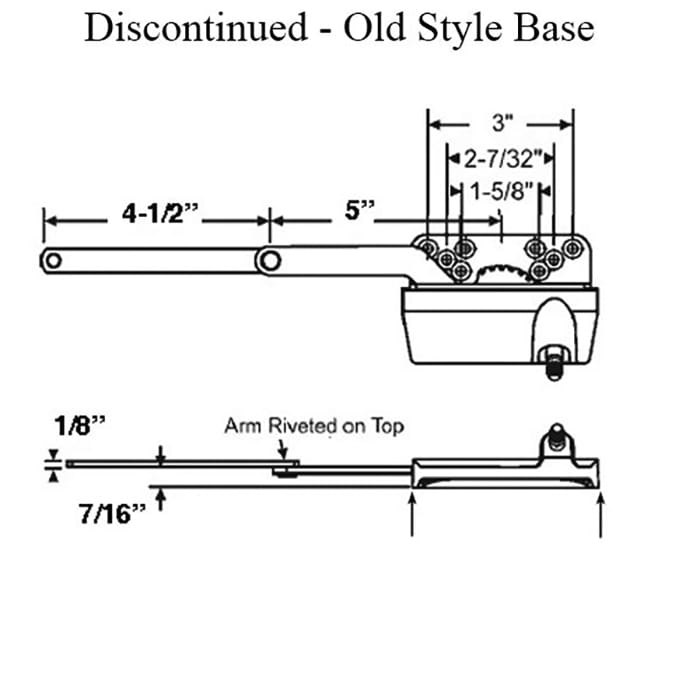

NOTE 2: See additional Pictures for line drawings
