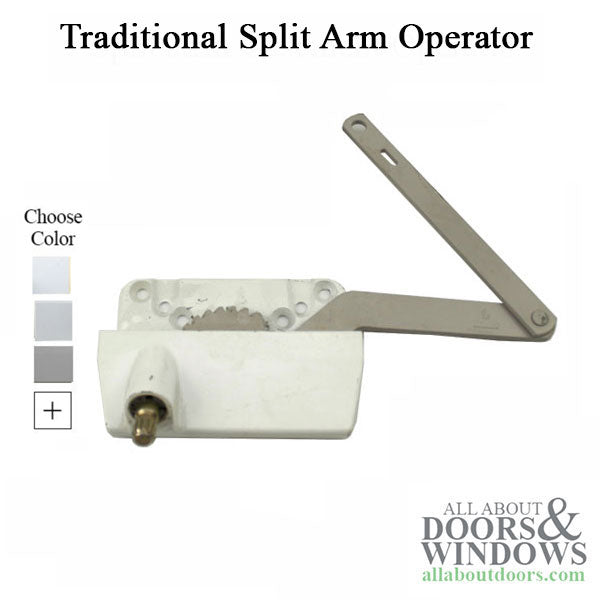

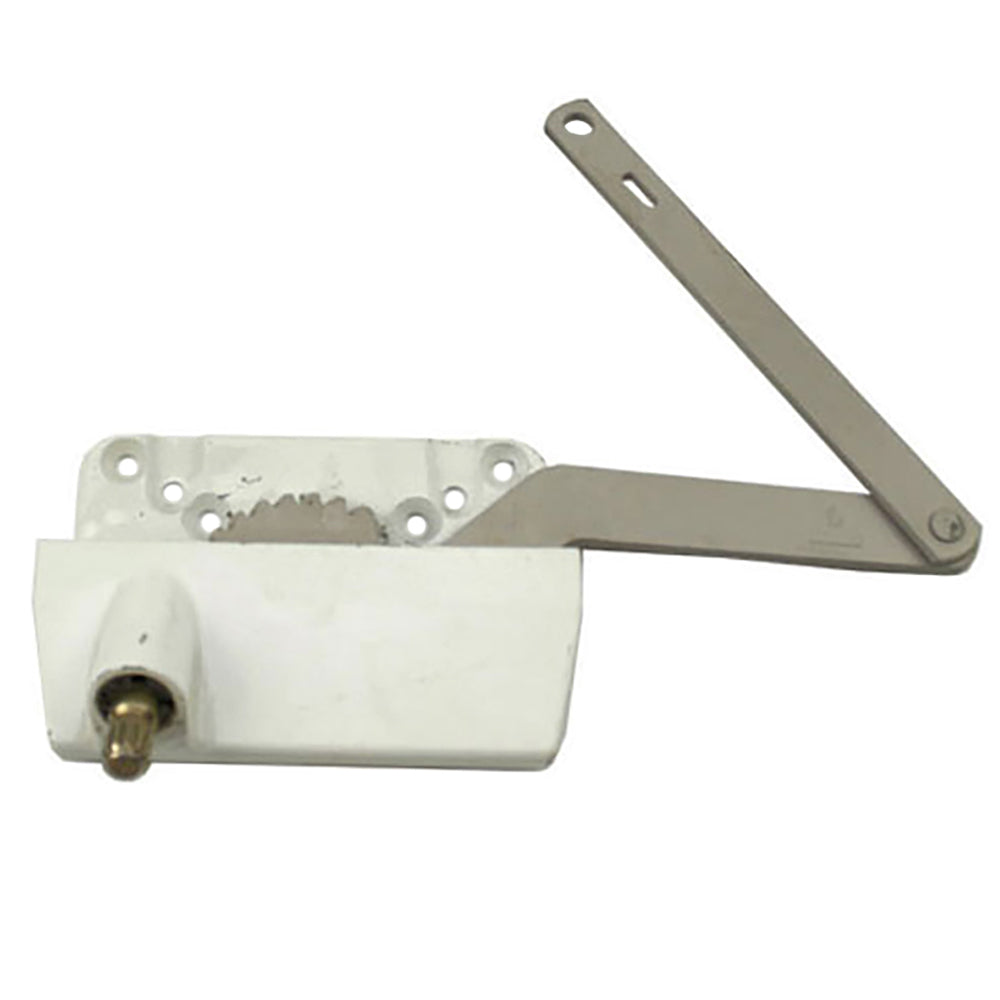

Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2" Link, Left Hand

Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2
Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2
Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2
Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2
Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2
Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2
Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2
Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2

Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2" Link, Left Hand

Part Number:15.30-TRA-LH Price: $20.75
Color
Material

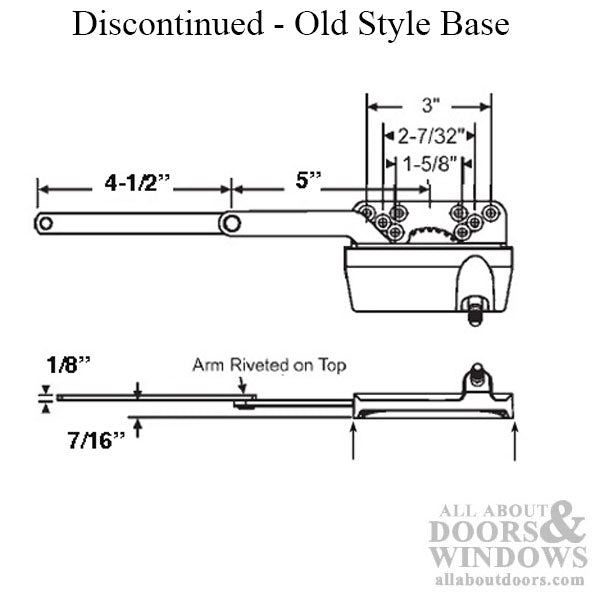

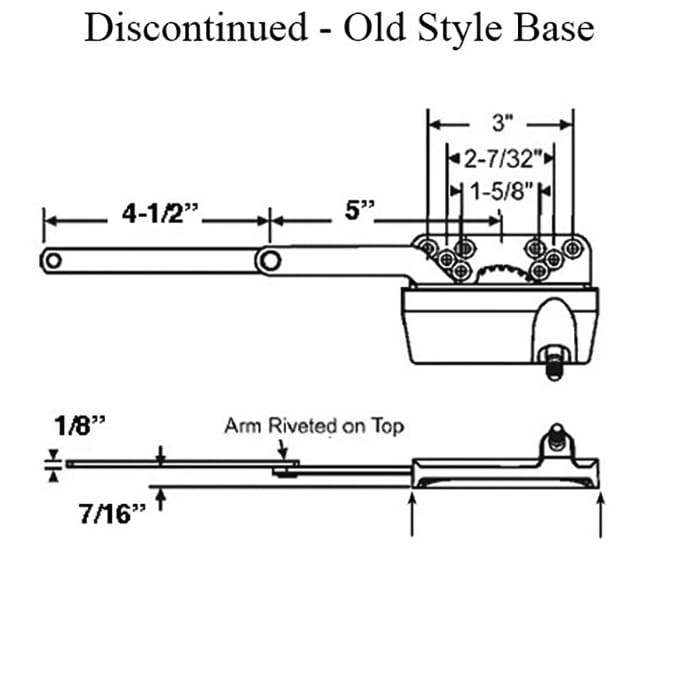

This product has been discontinued. Replace with #50.60.00.211.
Additional components required with this replacement:
Cover/Handle #55308 and Stud/Snap-On Bracket #551094.

This operator was used by Weathershield on their Visions 2000 vinyl casement window, as well as by many other companies.

Application: Casement windows

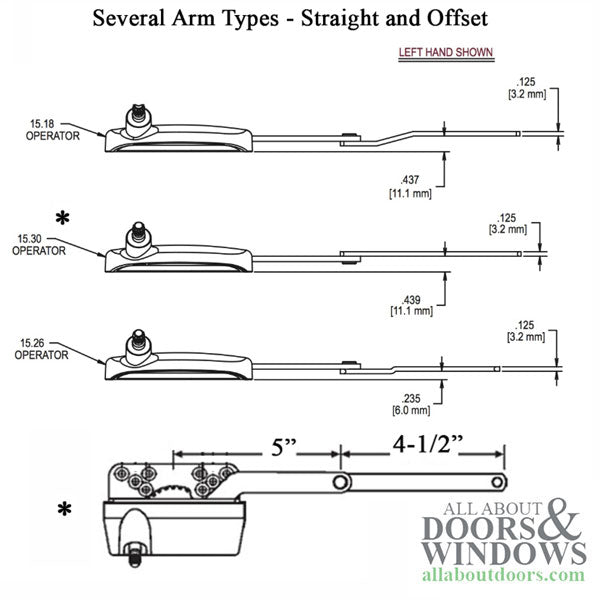

Operator Type: Split Arm
Link Length: 5 inch
Rivet to Stud post Hole: 4-1/2 inch
Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard or stainless steel arms

Sold Each, No Screws or Crank Handle

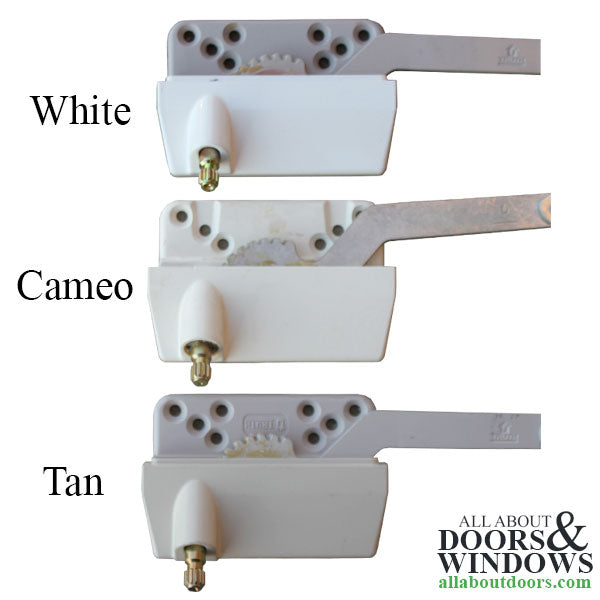

Weather Shield Part Numbers <br> Standard Seacoast <br> White Left 972959 972976 <br> White Right 972960 972977 <br> Tan Left 972610 940009 <br> Tan Right 972611 940010 <br> Cameo Left 941331 941333 <br> Cameo Right 941332 941334
