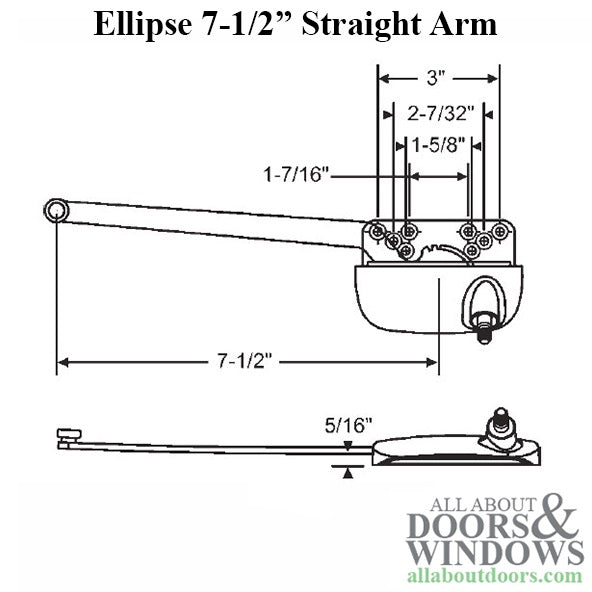

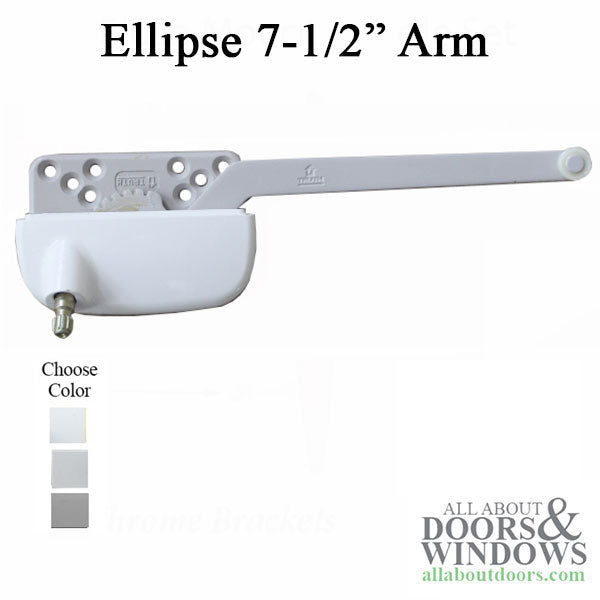

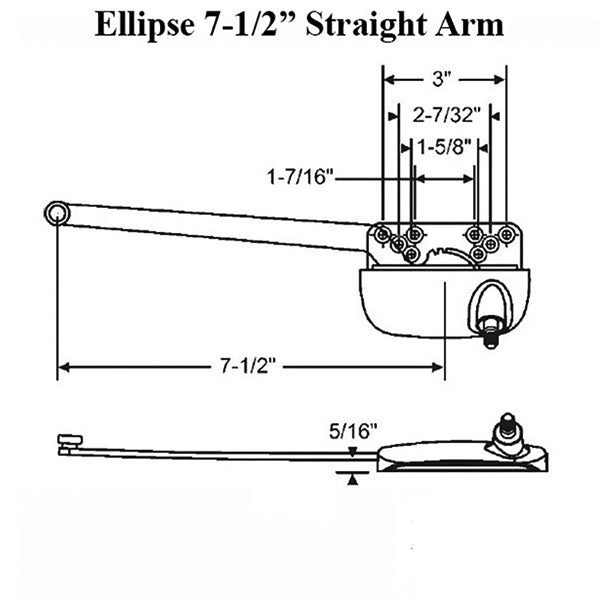

Truth 15.56 Ellipse 7-1/2 single arm casement operator, nylon roller, Right
Part Number: 15.56-ELL-RH-CAMTruth 15.56 Ellipse 7-1/2 Straight Arm operator for wood or vinyl windows
Used by many window companies including Weather Shield on their Visions vinyl casement window.
Application: Casement windows, Sill Mount
Operator Style: Ellipse
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Arm Length: 7-1/2 inch with Nylon Roller attached
Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard steel arms
Markings: Main Body, Truth
Used by many window companies including Weather Shield on their Visions vinyl casement window.
Application: Casement windows, Sill Mount
Operator Style: Ellipse
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Arm Length: 7-1/2 inch with Nylon Roller attached

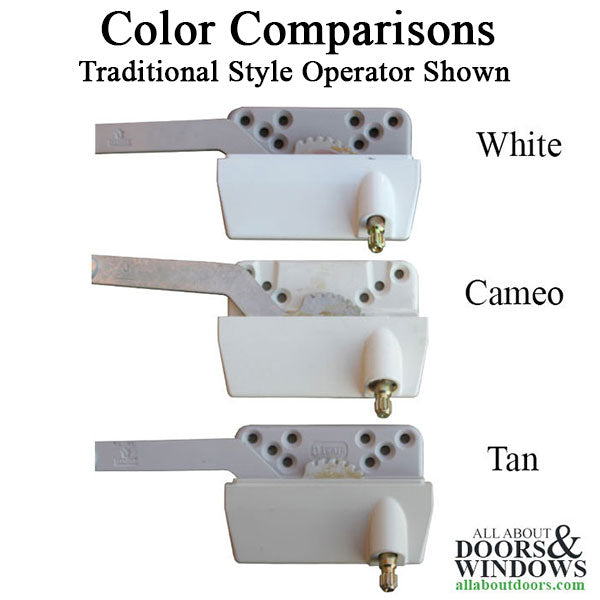

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard steel arms
Markings: Main Body, Truth
