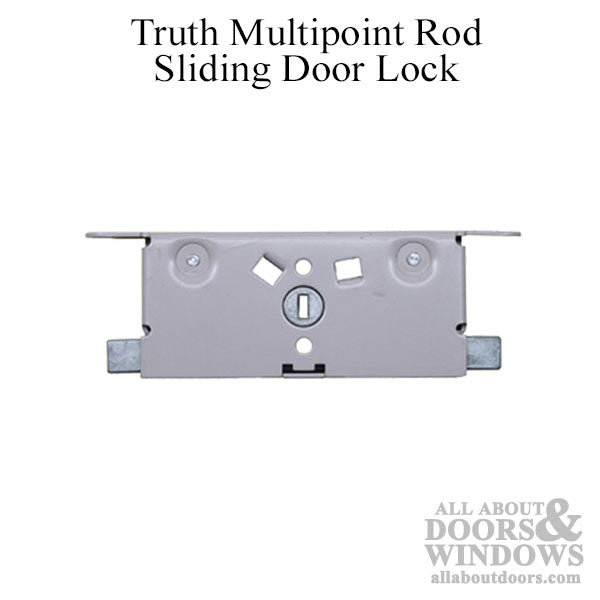

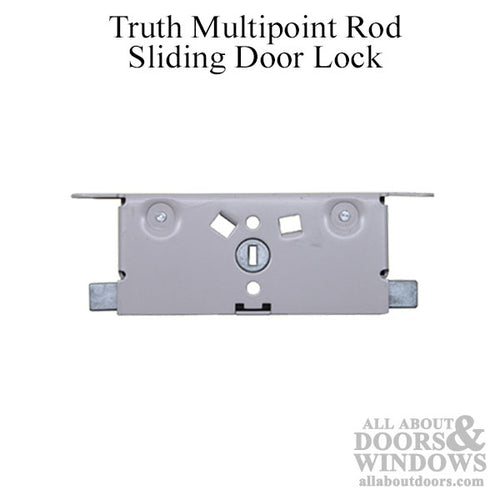

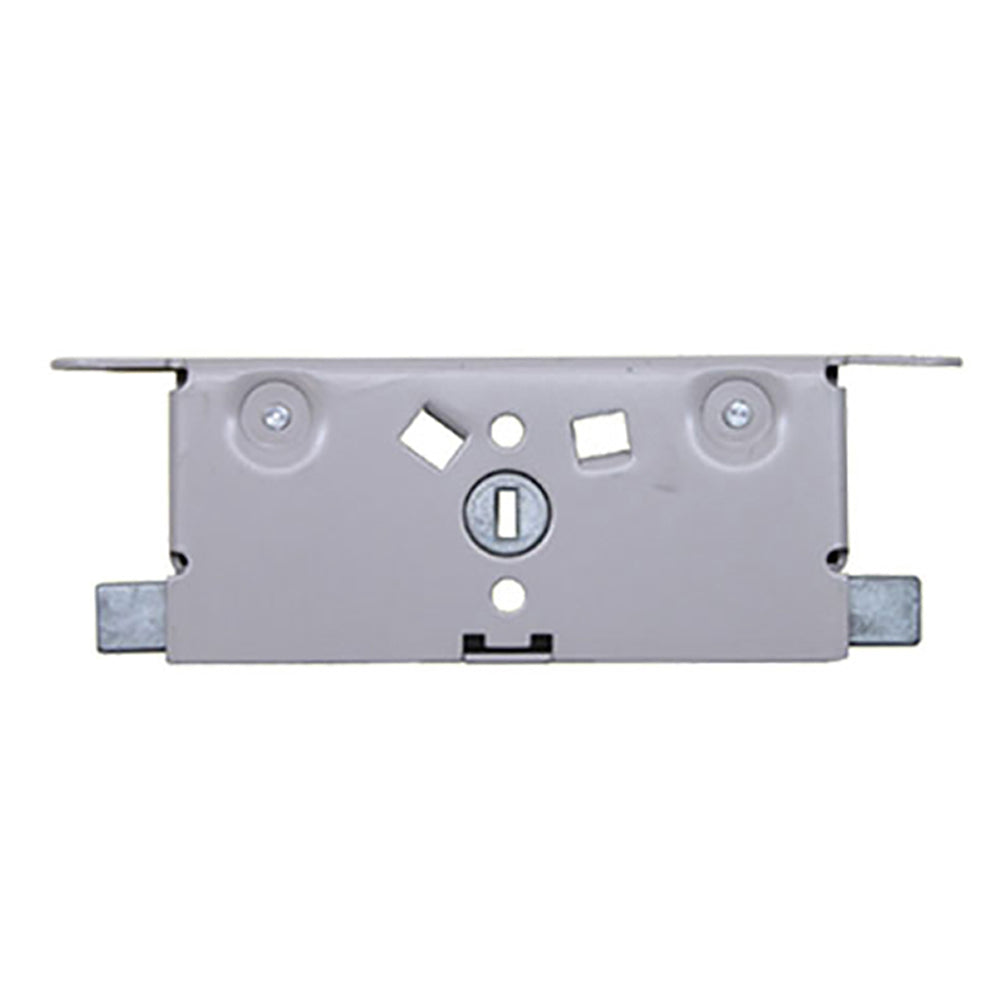

Truth Multi Point Vertical Rod Sliding Door Lock

Part Number:15335
Please note, this product has been discontinued.

Discontinued - Truth EntryGard Vertical Rod Mortise Lock for Sliding Door
Used by Marvin and others
Multipoint rod lock that is to be used with rods attached for Latching door at top and bottom of sliding panel


REPLACEMENT OPTION - Covert mortise Lock to 15145 + Strike Plate 15061
Need to replace handle set - we suggest
14587 - 1.25 x 12 Square Top, Keyed ( Should cover most marks from old handle set )
14588 - 1.25 x 12 Square Top, Non-Keyed ( Should cover most marks from old handle set )

Truth Part 40504 no longer being made
U.S. Pat. 4,362,329
Can. Pat. 1984

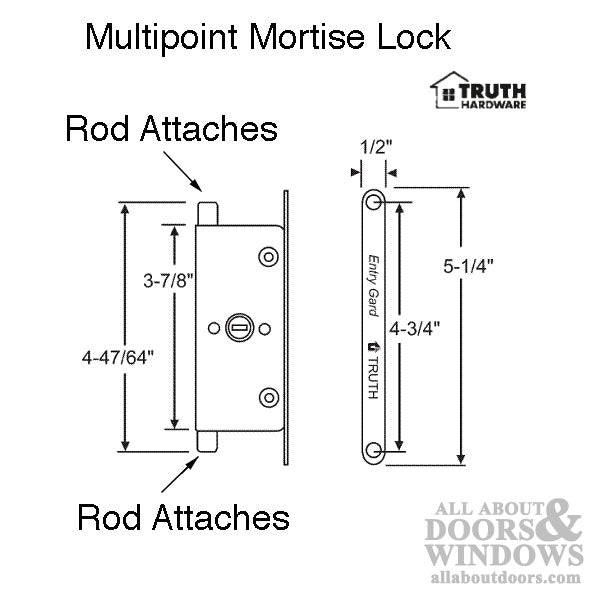

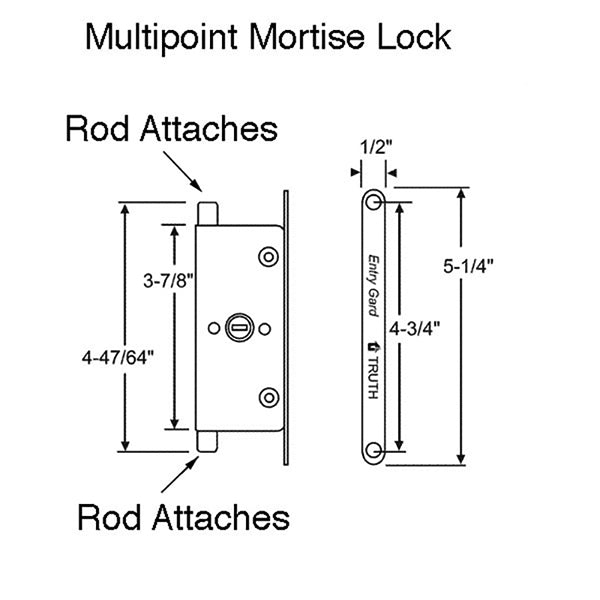

Faceplate: 1/2 x 5-1/4
Screw holes: 4-3/4 inch
Lock Body: 3-7/8 inch
Sold Each

Rods are no longer available. When purchasing, please save existing rods to use.

Related Truth Parts:
14011 - Marvin Inside Handle only  - Discontinued
14012 - Marvin Outside Pull Only Does NOT include cylinder  - Discontinued
15033 - Key Cylinder
15335 - Mortise Lock for Vertical Rod Application - Discontinued

This product is similar to or the same as the following part numbers in these brands:<br/>Strybuc Industries: 16-685<br/>Truth: 40.10.00.001
