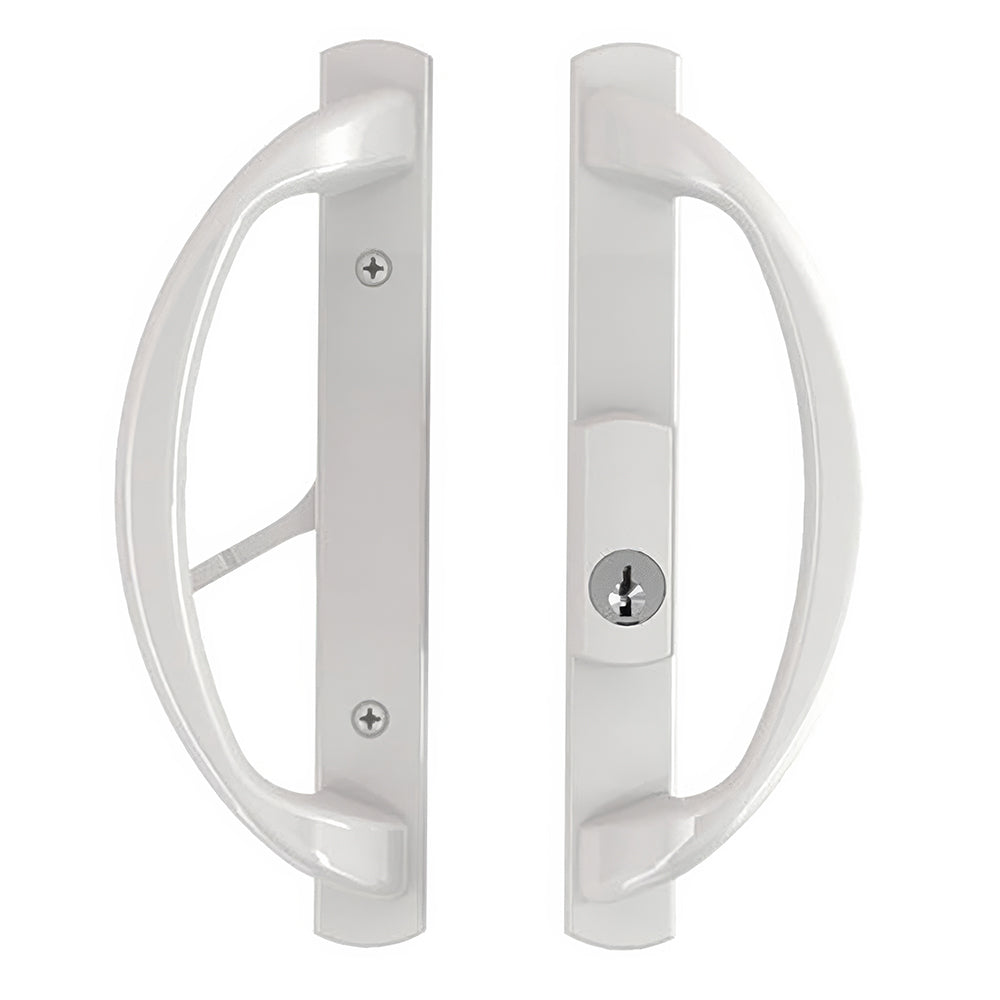

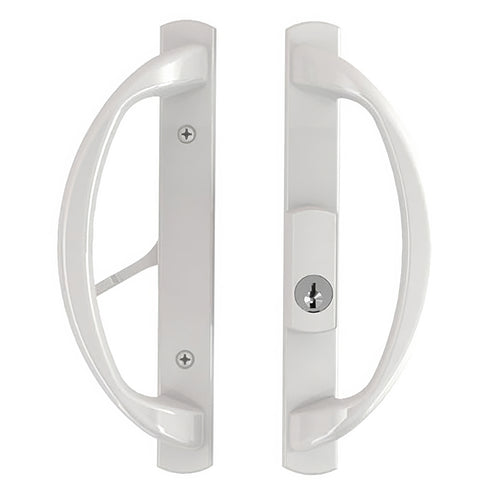

Truth 98.05 Sliding Patio Door Handle Set  Smart Key Non-Handed

This handle set has 1 key, it is a Kwikset Smart key cylinder, homeowners can reset key to match other kwiksets locks.
Key cylinder and housing can be set up for left or right hand door

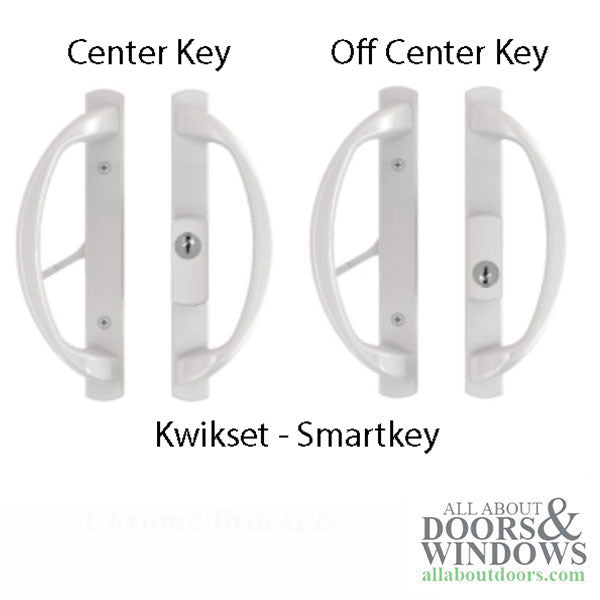

Handle set, non-handed, can be used for center or off center key.
Fabrication works with 3 or 4 hole patterns, can be used with single or dual hook mortise lock.

Door Thickness: 1-1/2 - 1-5/8 inch
Screw Hole Spacing: 3-15/16 inch (100mm) 3.93
Escutcheon Plate Width: 1 inch (25.4mm) 1.00
Escutcheon Plate Length: 8 inch (203mm) 8.00
Handle Height: 1-13/16 inch (46.23mm) 1.82
Thumb latch Tail Projection: 3/4 inch
Key Cylinder Tail Projection: 1 inch
Key: (1) Kwikset Smartkey, rekeyable by homeowner, Instructions included
Material: Zinc
Handle Screws: 8-32 x 1-7/8
Color: Standard White
