Truth EntryGard Dyad arm Casement Operator, Wood windows, Link offset UP, Left hand
High pressure diecast zinc operator base, steel arms with E-Gard corrosive resistant finish.
Application: Sill Mount, Wood Windows
Arm Type: Dyad, Split ARM OPERATOR

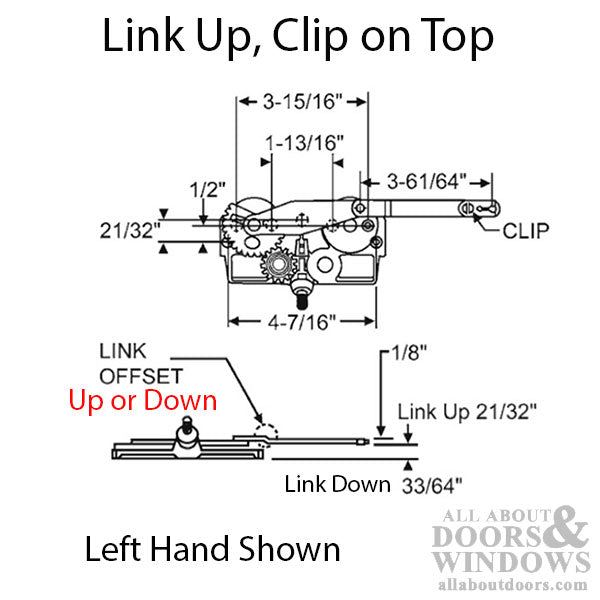

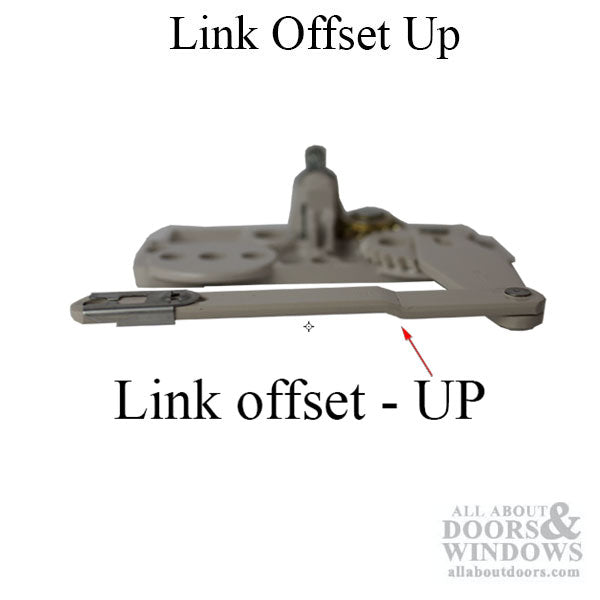

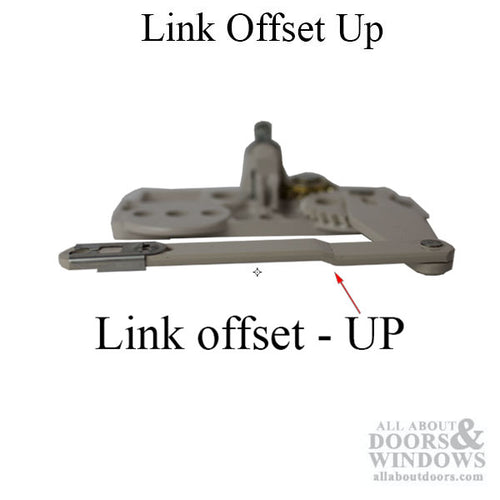

Link Offset: UP
Clip: Mounted on Top, Can be removed and put on bottom

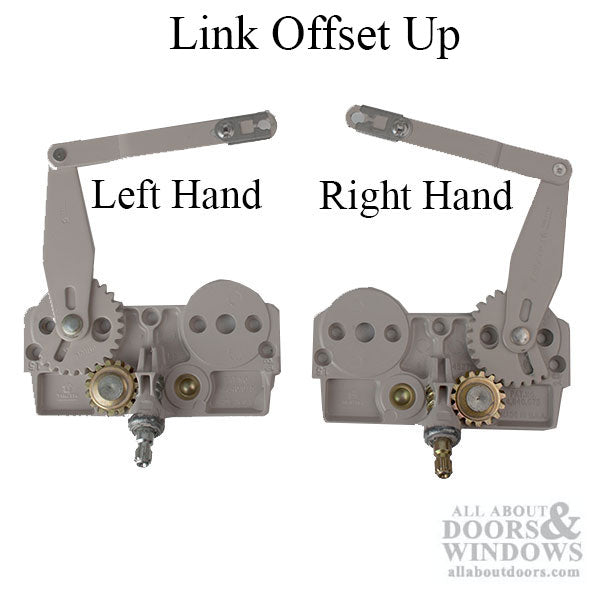

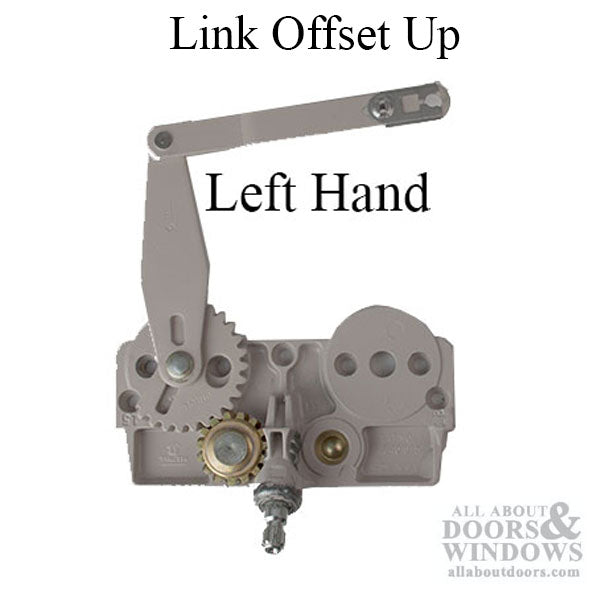

Handed: Yes, Left Hand as shown
Handing is determined by side hinge is on when viewed from OUTSIDE
Markings on first arm # 30636
Truth numbers stamped on housing # 30471
Number stamped on link # 20810
Cover and Handle is not included. ( Mechanism Only)
