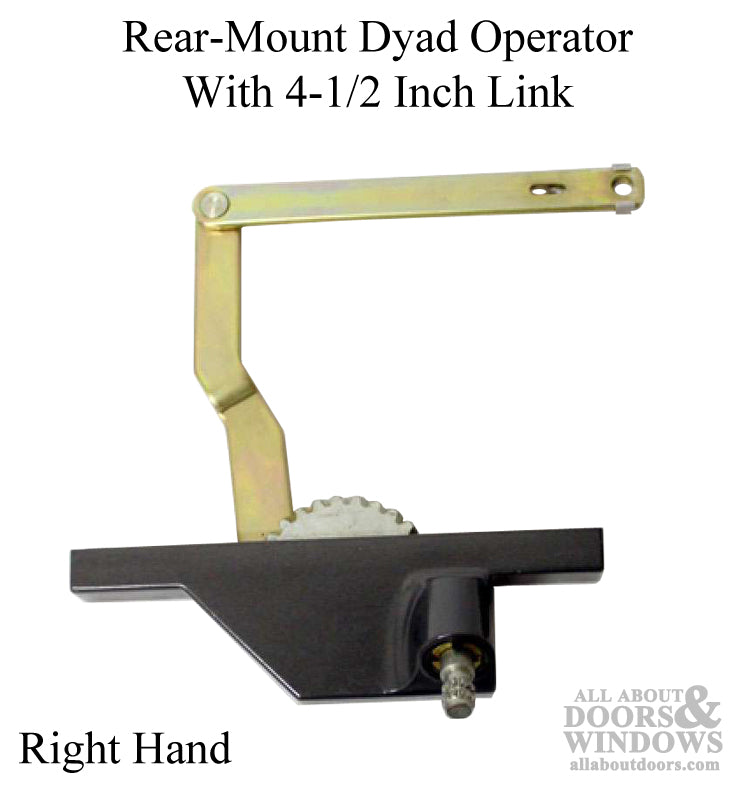

Truth Dyad Operator, Rear Mount 4.5 inch holes, Right Hand - Chestnut Bronze
Part Number: Price: $75.00Truth Rear Mount Dyad Operator, OFFSET Arm, 4-1/2 inch holes

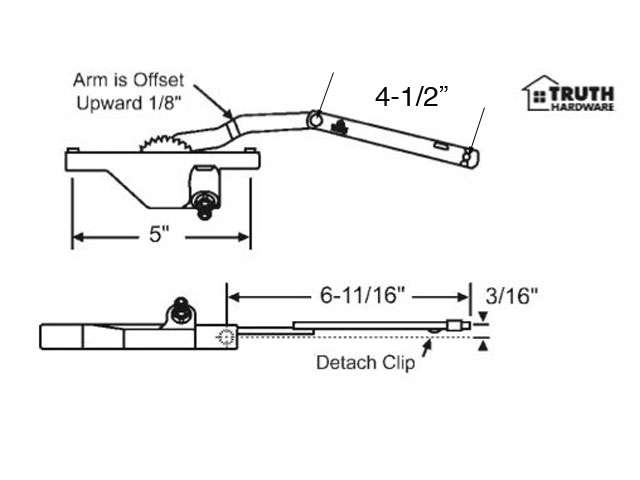

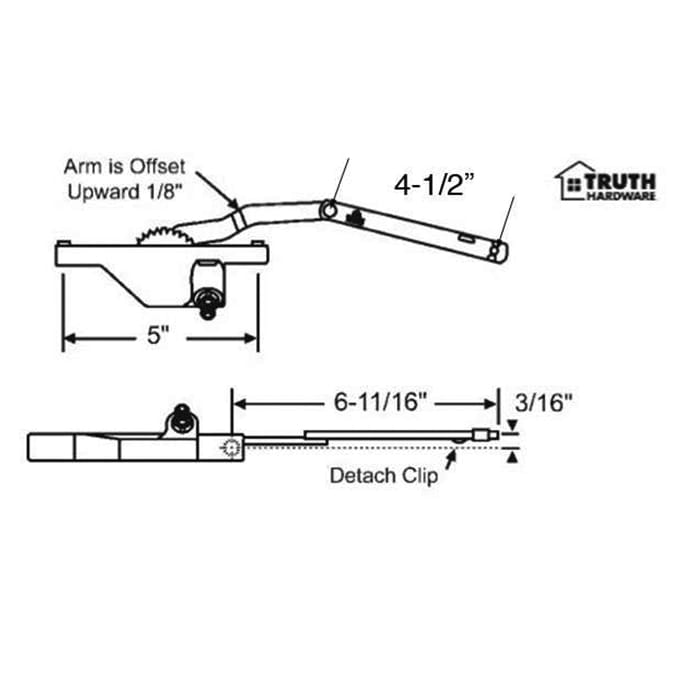

Main Arm: OFFSET 1/8 inch upward
Link Arm: 4-1/2 inch, Center of rivet to center of hole
Link arm Length: 5 inch overall, Flat
Detach Clip: on Bottom / underside; can be reversed
Markings: Flat link # 30866
Color: Dark Chestnut Bronze
Rear Mount Screws: 5 inches apart
optional Color: Coppertone on request
Main Arm: OFFSET 1/8 inch upward
Link Arm: 4-1/2 inch, Center of rivet to center of hole
Link arm Length: 5 inch overall, Flat
Detach Clip: on Bottom / underside; can be reversed
Markings: Flat link # 30866
Color: Dark Chestnut Bronze
Rear Mount Screws: 5 inches apart
optional Color: Coppertone on request
