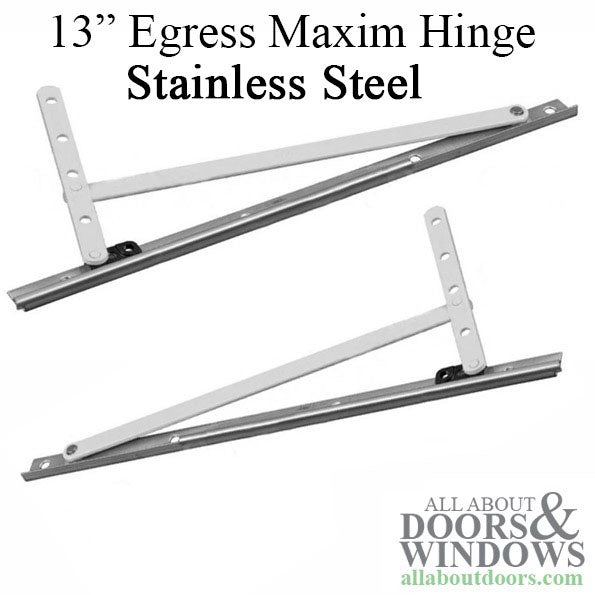

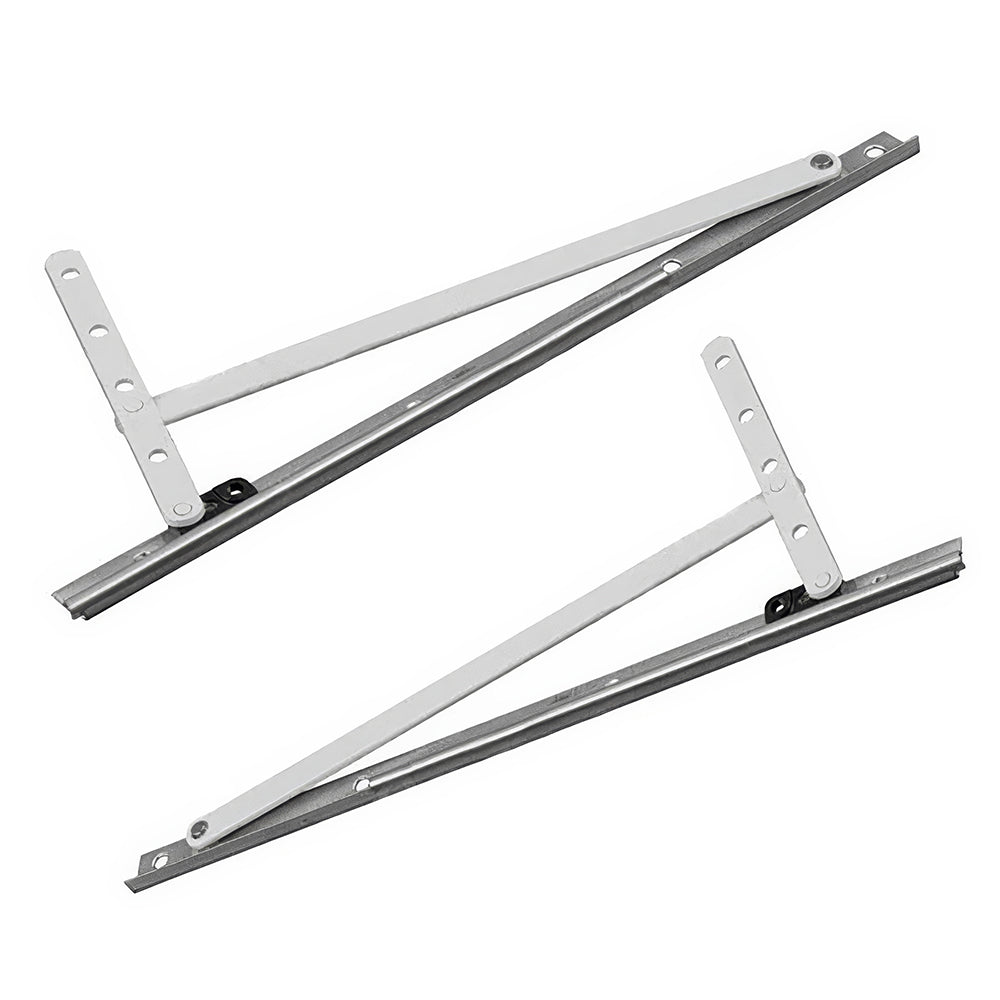

Truth Egress Casement Arm Hinge Kit - SS
Part Number: Price: $28.84Truth 14.12. Series Egress 2-Bar concealed casement hinge assembly, 13 inch stainless steel track with Stainless Steel hinge arms.

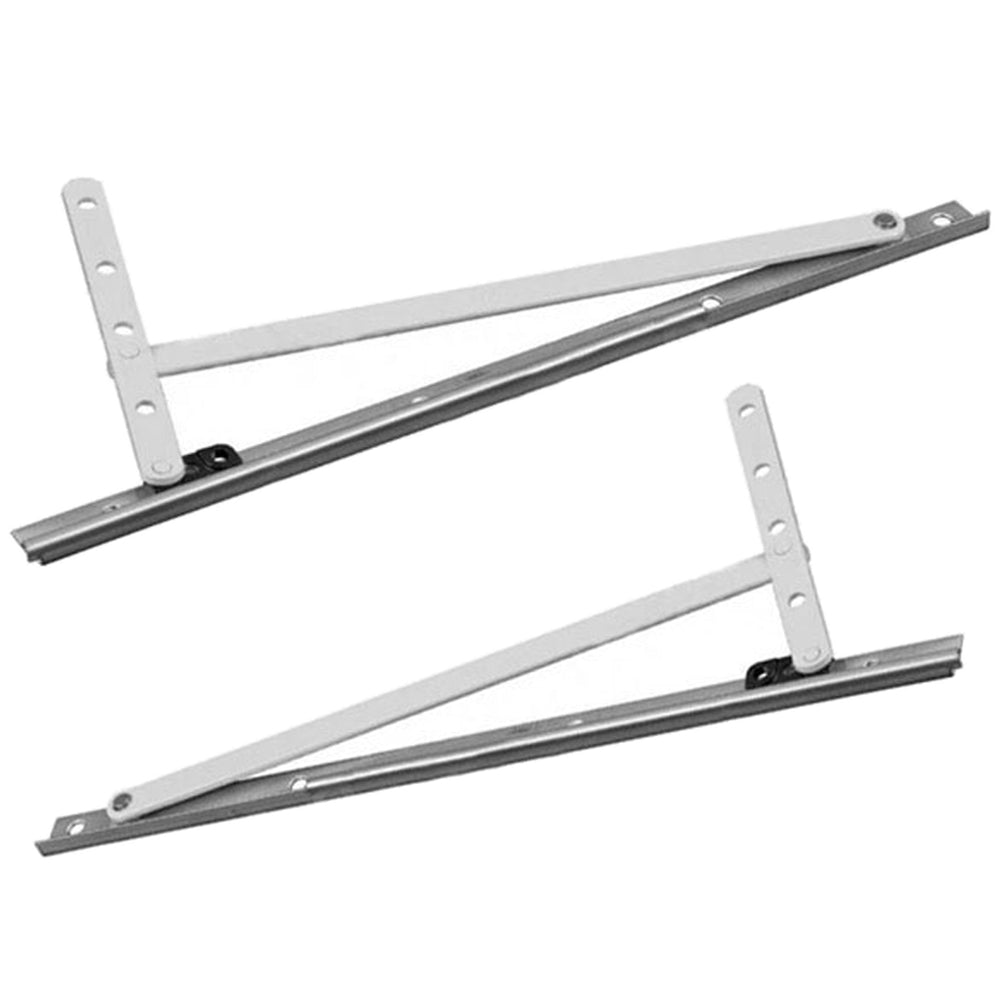

This kit is comprised of four (4) Amesbury Truth components to make a pair of upper and lower hinge assemblies for casement windows. Hinge and track assemblies 14.12.00.505 and 14.12.00. 506
Screws are not included, type of screws required are determined by application and profile material.
This kit will fit left or right hand casement windows.
Application: Hinges mounted on left or right side of casement windows
Series: Egress, Hinge arm snaps onto track stud
Track Length: 13 inches
Track Width: 7/16 inch
Track Material: Stainless Steel with Brass Stud

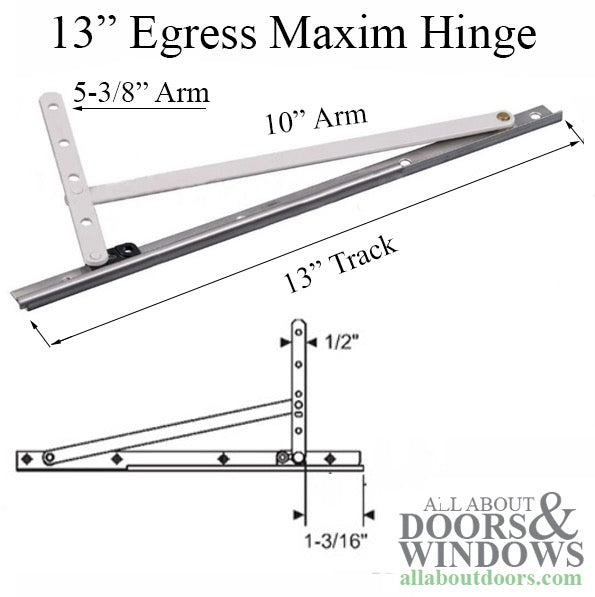

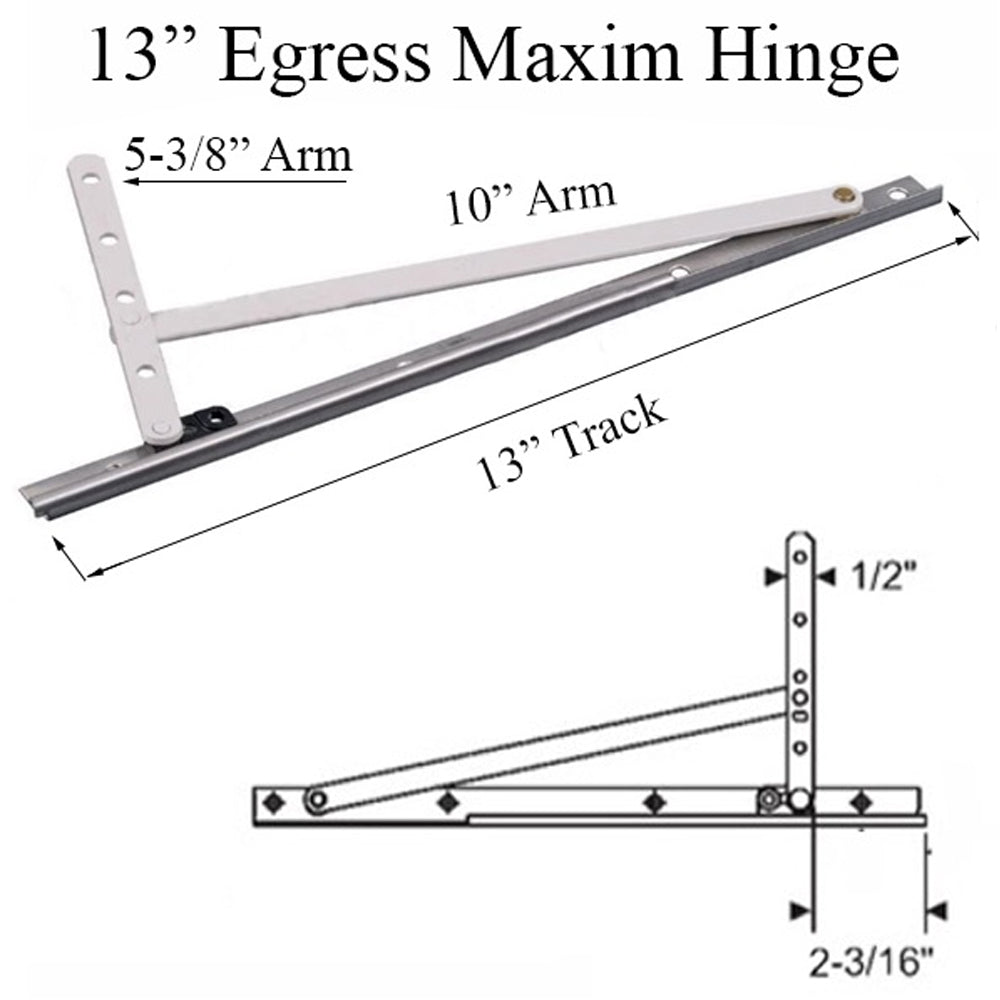

Hinge Opening: 2-3/16 inch 2.179 actual - (See additional images)

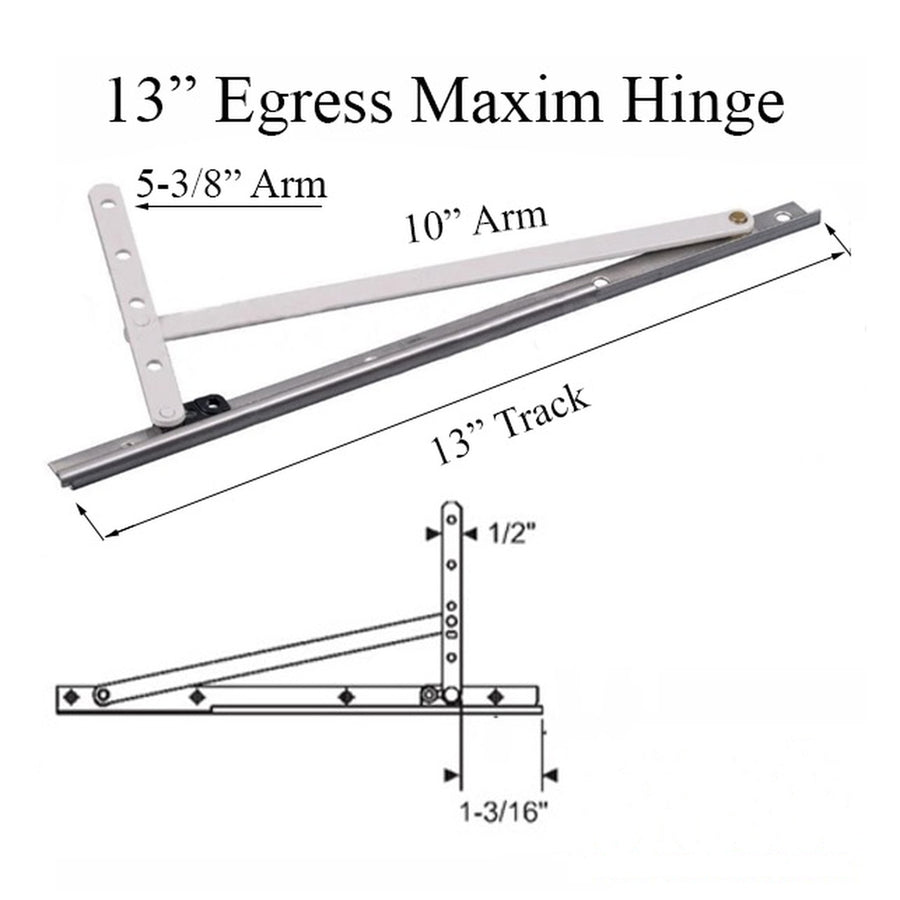

Arm Lengths: Long arm is 10 inches, shorter arm is 5-7/16 inches 5.452 actual
Arm Material: Stainless Steel
Stack Height: 7/16 inch
Handed: Yes, Right Hand and Left hand Pair
Sold in Pairs: 1 Upper, 1 Lower Hinge Assembly
Screws are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual screw will be determined by application and window material.
Markings on Hinges: Truth 32062, 31861
Additional Information:

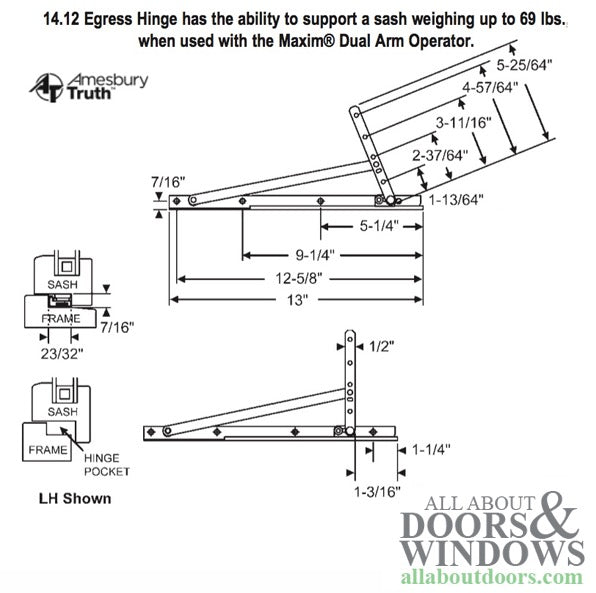

Truth 14.12 Maxim Concealed Casement Window Hinge is NOT for use on awning windows. Used specifically with the Maxim Dual Arm Operator, in order to achieve egress access in required situations. Hinge arms are made of heavy gauge steel to give sash weight carrying capability of up to 69 pounds
EGRESS INFO:
International Building Code advises that every bedroom must contain at least one egress window.
Basically, The operable portion of the window must be at least 24-inches high and at least 20-inches wide, with a net area at least 5.7 square feet, with an opening no higher than 44 inches from the floor. Check local codes for more information.
Amesbury Truth ‘egress’ hardware essentially stays tucked in close to the jamb, with minimal ‘pivoting’ towards the center of the unit—thereby creating a greater net-opening width.
Egress hinge provides Approximately 2-5/8 inch wider opening to meet some code requirements on Emergency Exit.
This kit is comprised of four (4) Amesbury Truth components to make a pair of upper and lower hinge assemblies for casement windows. Hinge and track assemblies 14.12.00.505 and 14.12.00. 506
Screws are not included, type of screws required are determined by application and profile material.
This kit will fit left or right hand casement windows.
Application: Hinges mounted on left or right side of casement windows
Series: Egress, Hinge arm snaps onto track stud
Track Length: 13 inches
Track Width: 7/16 inch
Track Material: Stainless Steel with Brass Stud
Hinge Opening: 2-3/16 inch 2.179 actual - (See additional images)
Arm Lengths: Long arm is 10 inches, shorter arm is 5-7/16 inches 5.452 actual
Arm Material: Stainless Steel
Stack Height: 7/16 inch
Handed: Yes, Right Hand and Left hand Pair
Sold in Pairs: 1 Upper, 1 Lower Hinge Assembly
Screws are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual screw will be determined by application and window material.
Markings on Hinges: Truth 32062, 31861
Additional Information:
Truth 14.12 Maxim Concealed Casement Window Hinge is NOT for use on awning windows. Used specifically with the Maxim Dual Arm Operator, in order to achieve egress access in required situations. Hinge arms are made of heavy gauge steel to give sash weight carrying capability of up to 69 pounds
EGRESS INFO:
International Building Code advises that every bedroom must contain at least one egress window.
Basically, The operable portion of the window must be at least 24-inches high and at least 20-inches wide, with a net area at least 5.7 square feet, with an opening no higher than 44 inches from the floor. Check local codes for more information.
Amesbury Truth ‘egress’ hardware essentially stays tucked in close to the jamb, with minimal ‘pivoting’ towards the center of the unit—thereby creating a greater net-opening width.
Egress hinge provides Approximately 2-5/8 inch wider opening to meet some code requirements on Emergency Exit.
