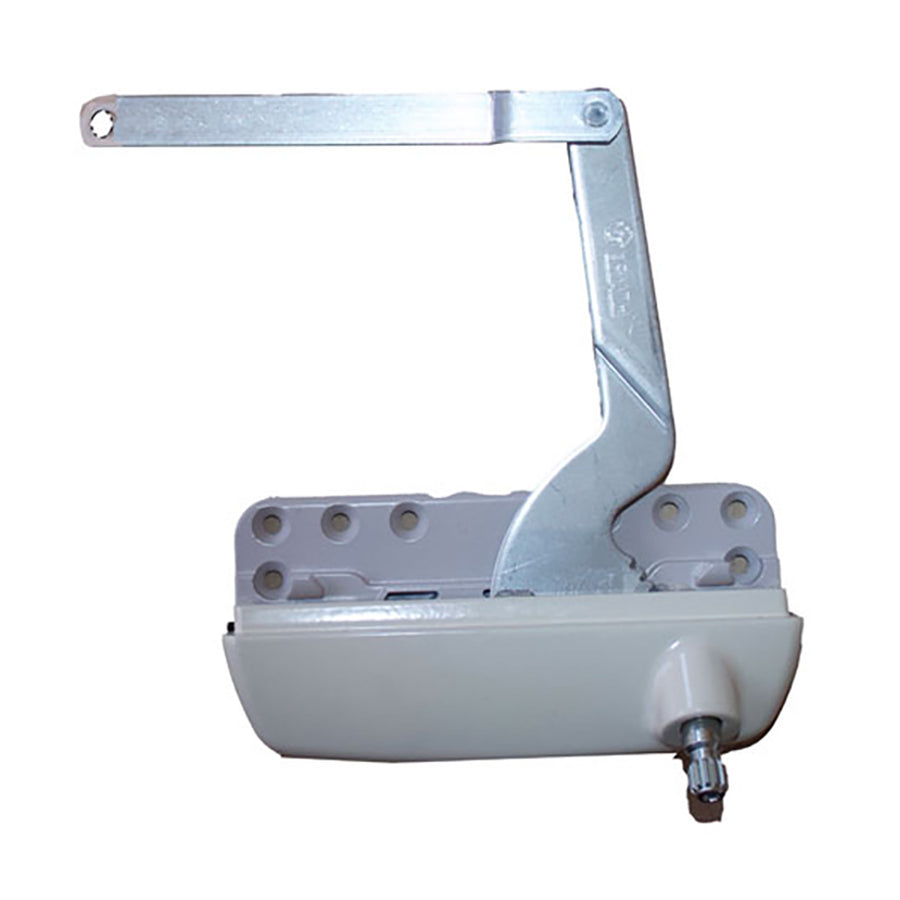

Truth Maxim 50.50 Dyad Operator, split arm, Sill Mount Right Hand - CHOOSE COLOR

Part Number: 50.50-RH $25.00

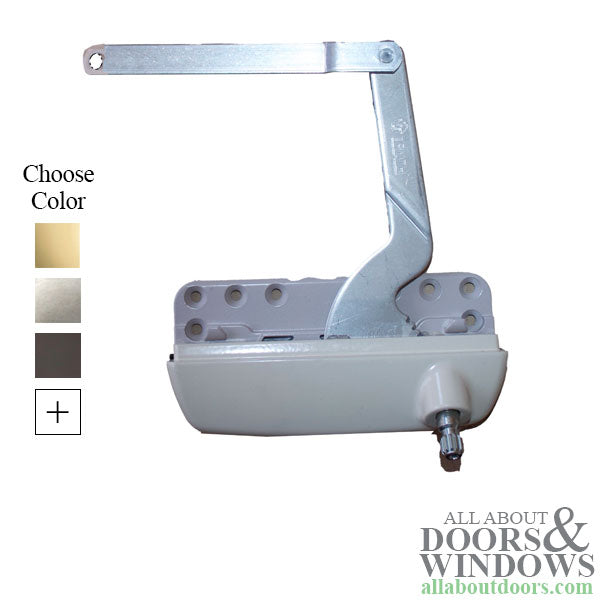

Color
Material

Review our shipping information and returns policy.

Request a Quote

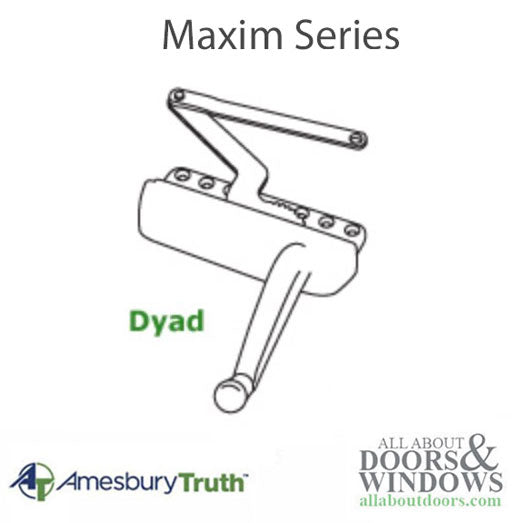

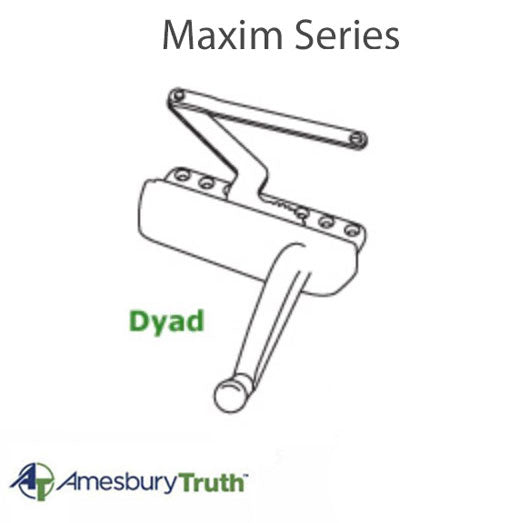

Truth Maxim 50.50 Series

Surface Mount Dyad Operator

This product has been discontinued. See below for newer models.

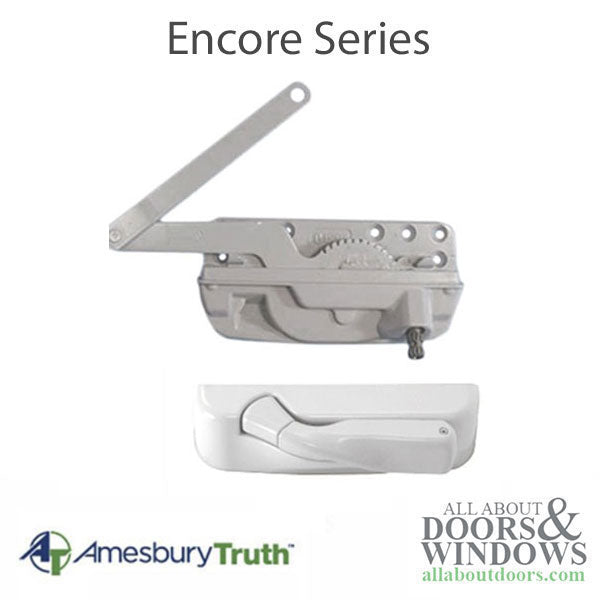

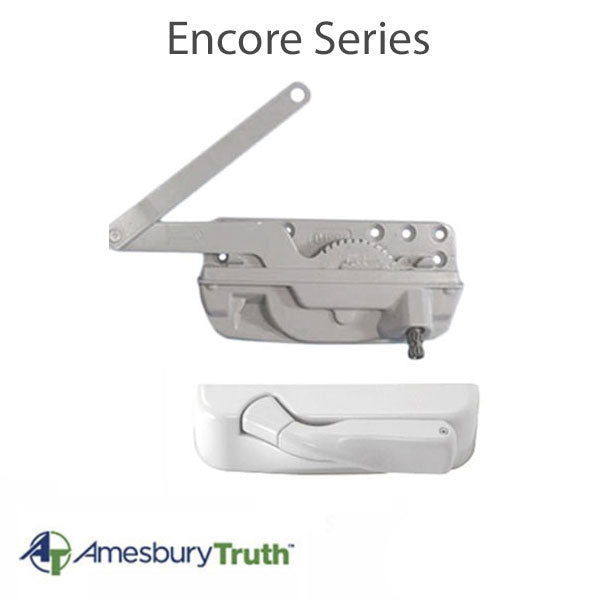

The Maxim® Series is designed for narrow windows, but will operate with a sash weight of up to 55 lbs., on a frame 16" to 32" in width, and up to 72" in height. Fits in all profiles currently using the Encore® or EntryGard® Dyad operators.

Used by Hurd CCSE DLX, Bilt Best, Weathershield, and others.

All Maxim operators are designed to meet teh AAMA 901-96 Cycle Test at a commercial rating. The operators are “sealable” to help reduce air and water infiltration.

Maxim Dyad provides over 7 inches of washability with the standard Maxim® 13 inch hinge, and is compatible with Truth’s standard 10 inch hinge as well (with reduced washability).

For coastal applications with high humidity, we recommend the stainless steel finish over the E-Gard coating. There are also versions available in low-profile dyad operators, single or dual arm operators, reverse dyad operators, awning operators, and more. Contact customer service if the desired configuration of handing, color, and coating/material is not currently posted on our site, we may still be able to find a part for you.

Specifications

  • Markings:
    • Truth Link Number: 31876
  • Glass Size: 11 or 15 inch casement window

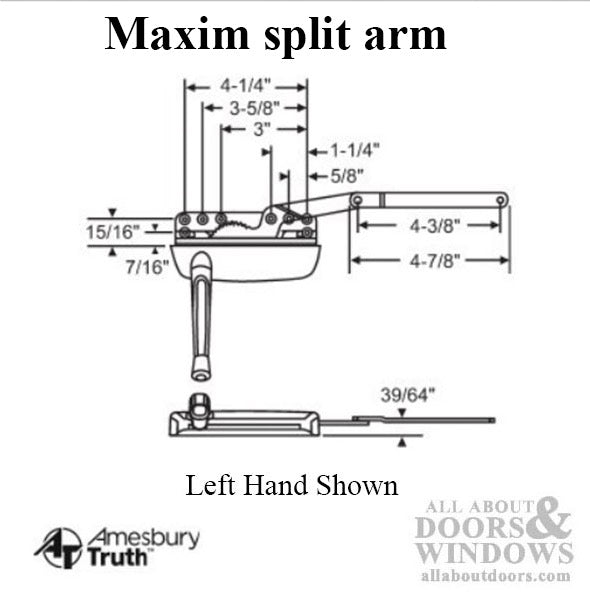

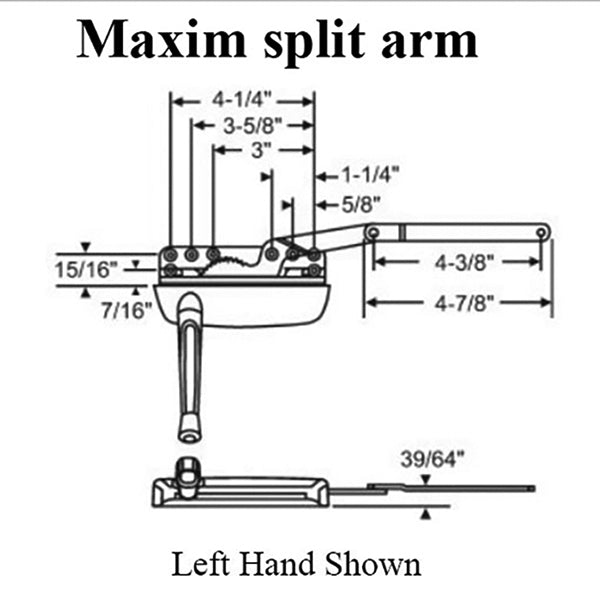

  • Arm Link:  Offset Down
  • Link Length:  4-7/8 inch (124 mm)
  • Link Hole Centers:  4-3/8 inch (111 mm)
  • Recommended screws:  6 #8 × 1 flat head sheet metal (not included)
    Clip:  None
  • Handed:  Yes, as shown
  • Material:   Die cast body, stamp steel arm with E-Gard corrosion resistant finish, or stainless steel for coastal applications

Priced and sold each. Crank handle and screws not included.
