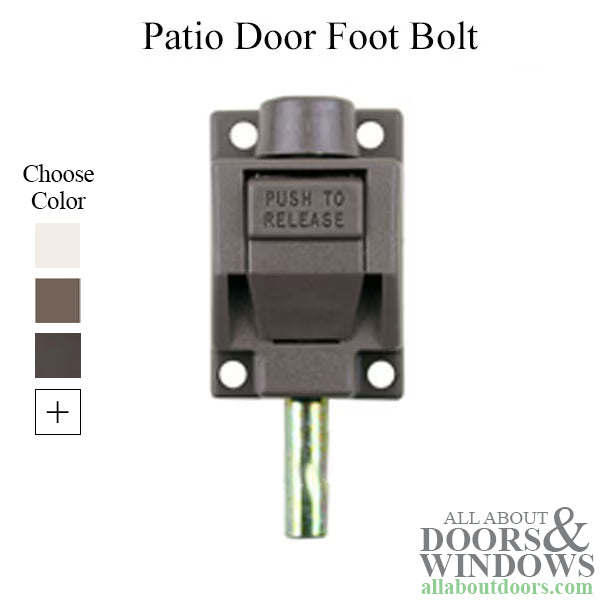

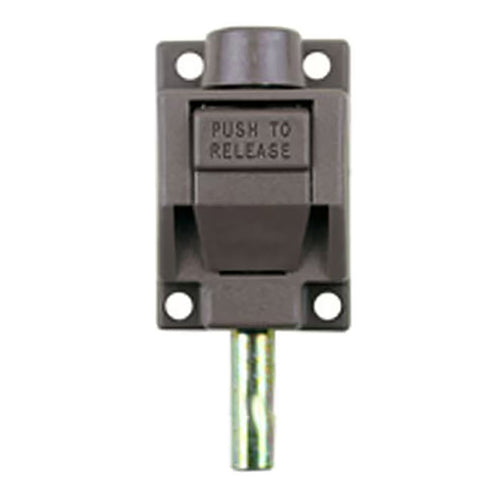

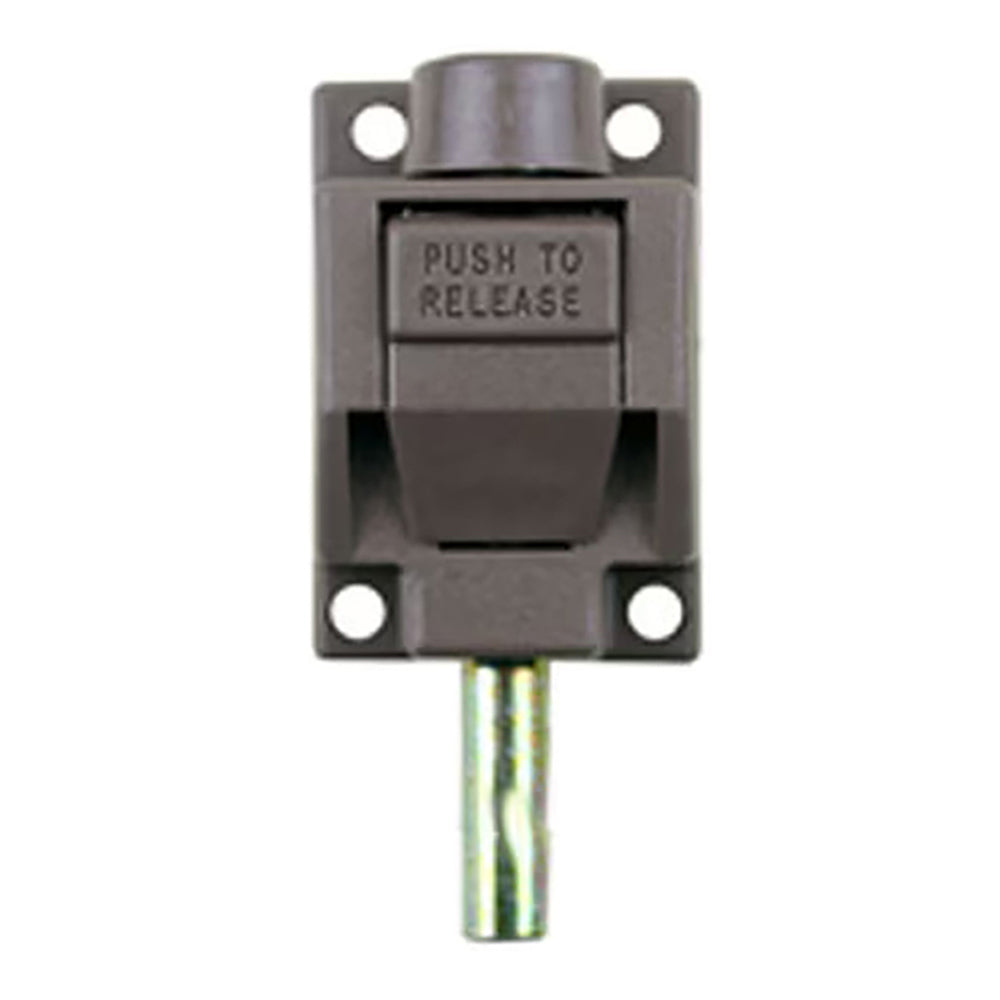

Truth triangular spring action foot bolt for patio door - Long 25/32 inch (20mm) Bolt

This foot bolt has four screw holes, plastic triangular base and spring action 5/16 inch diameter bolt.
The bolt protrudes .79 inch when extended in locked position.
Foot bolt is used with one of 3 strikes that are not included but can be found below in Related Parts.

Body Height:1-3/4 Inch
Body Width: 3 Inch.
Overall Height: 2-5/8 Inch
Bolt Diameter: 5/16 Inch
Bolt Extension: .79 Inch
Bolt Throw: 1" when locked
Hole Center: 1-7/8 Inch (bottom holes), 2-1/8 inch (top holes)
Hole Pattern: 4 Hole

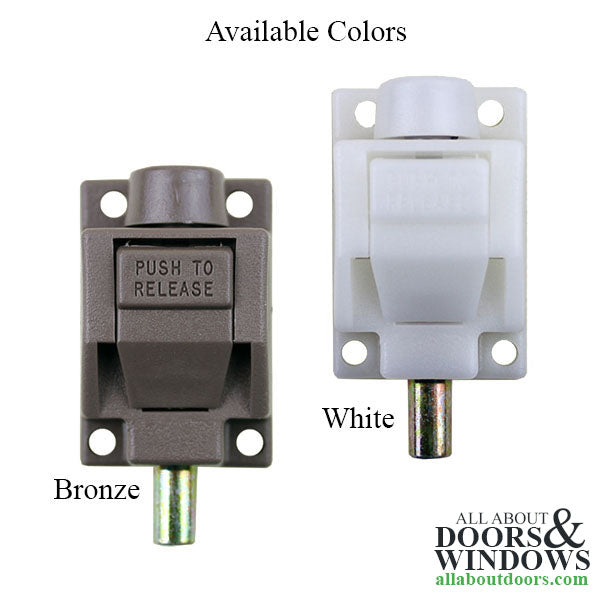

Finish: Available in white or bronze.

Contains 1 foot bolt.
Priced and sold each.

Note: Truth foot bolts are available with standard .56 inch and long .79 inch bolt
15301 - Triangular Base, .56 inch bolt
15302 - Rectangular Base, .56 inch bolt
15303 - Strike Plate, 2 hole Flat
15304 - Strike Plate, 1 Hole Offset
15305 - Strike Plate, 2 Hole Angled
