DISCONTINUED NO LONGER AVAILABLE, Replace with HOPPE Ultimate Adjustable Hinges


Used by Weathershield, Pozzi, Caradco, Hurd, Jeldwen and others.

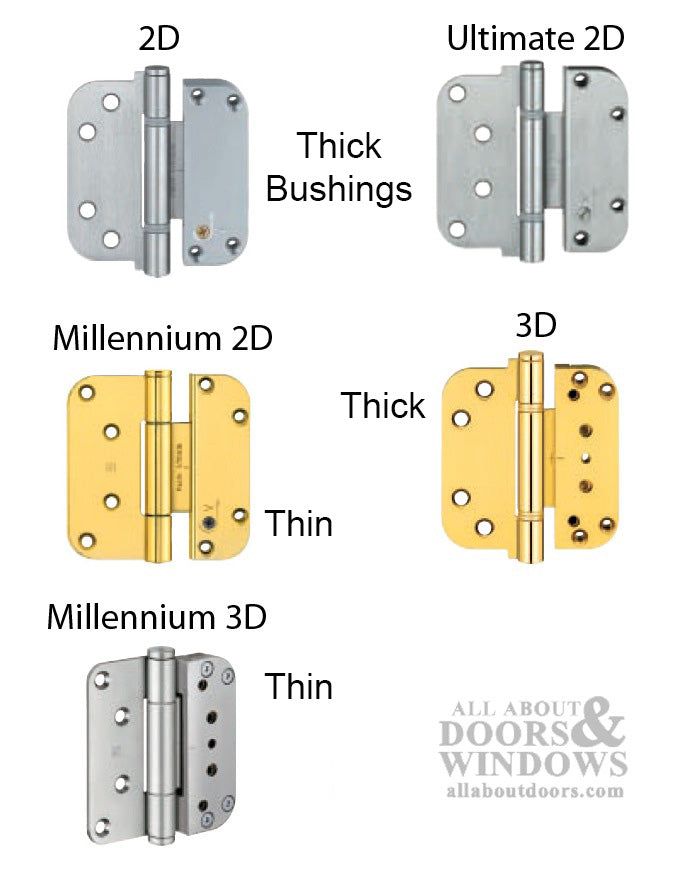

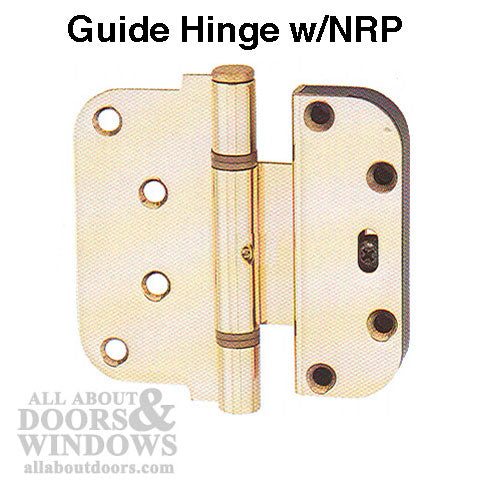

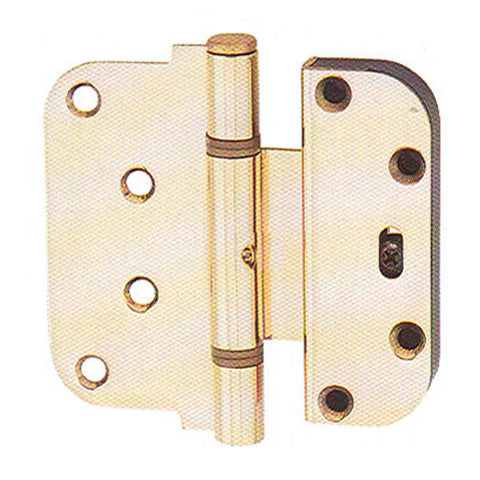

Guide hinge (H) is installed at the top and bottom to provide horizontal adjustment.

Used with the set hinge (V) which is installed at the center of the door.

Four hinge doors have an additional guide hinge.

Hinge will work on inswing or outswing doors.

Most often found on doors with Fuhr multipoint lock hardware.

Standard 3 hinge door would have 2 guide hinges; top and bottom and 1 set hinge in center.

Standard 4 hinge door would have 2 guide hinges; top and bottom and 2 set hinges in center.


Ultimate 2D Adjustable Hinge Specifications: NRP, Non-Removable Hinge (set screw)

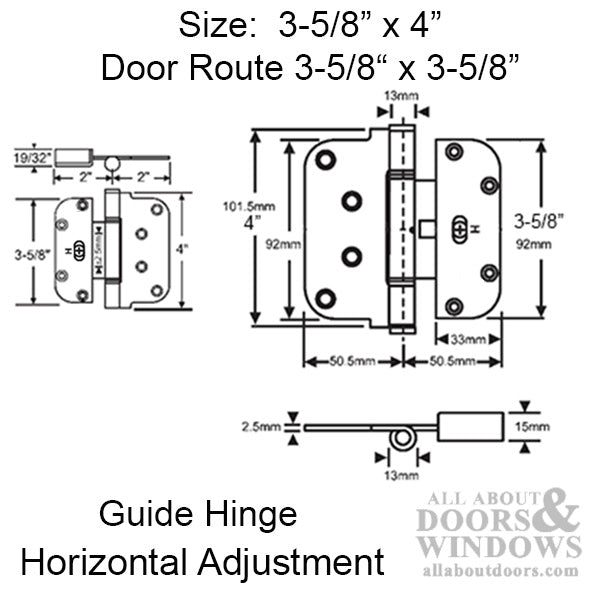

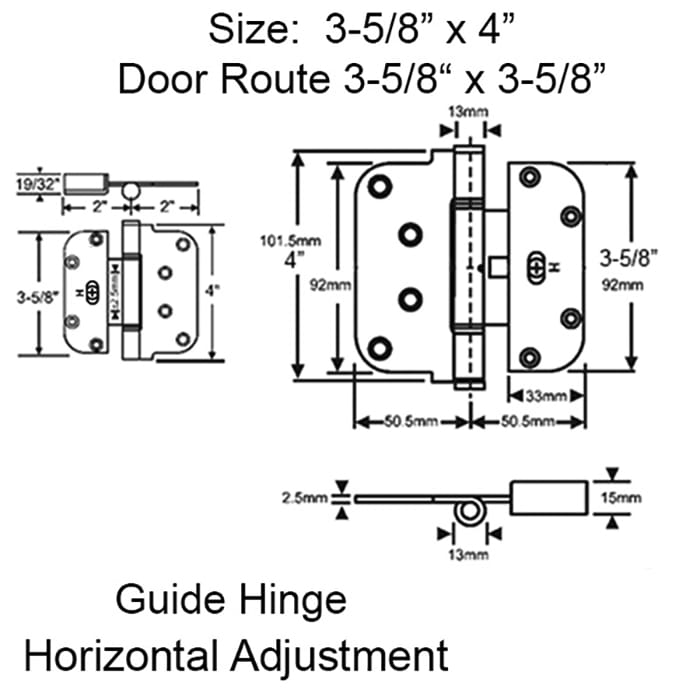

Hinge Type: Ultimate 2D Extended Leaf, open width  measures 4 inches (101mm)

Route in Door: 3-5/8 inch  (92mm)

Route in Frame: 3-5/8 inch  (92mm)

Hinge Type: SET HINGE (V), Adjustable for Vertical movement

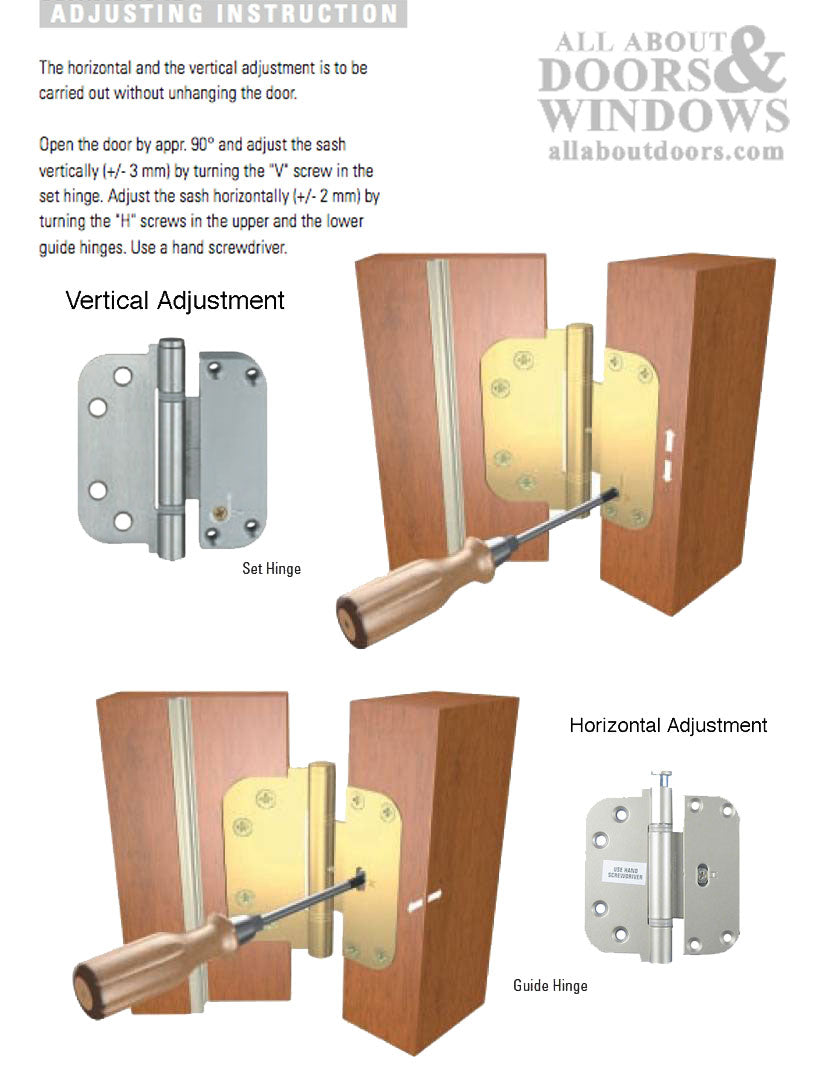

The Guide Hinge (H) is installed at the top and bottom to provide horizontal adjustment.

They are used with the SET HINGE (V) which is installed at the center for vertical adjustment

Four hinge doors have an additional Set or Guide Hinge depending on weight.

Jamb Screws - #9 x 3/4 Phillips Flathead;

Panel Screws - #8 x 1-1/2 Phillips Flathead.

Handing: Non-handed, Reversible,  Removable Pin for Left or Right hand doors

Material: Steel

Color / Finish: Plated Brass

Markings: Pat. Nr - 5.701.636


Sold Each, Priced Each - NO Screws


Note: If you need only 1 or 2 hinges to replace bad ones, use this limited supply.

If you need a complete set of 3 or 4 hinges, replace with the current style Hoppe hinge.


Replacement Options:

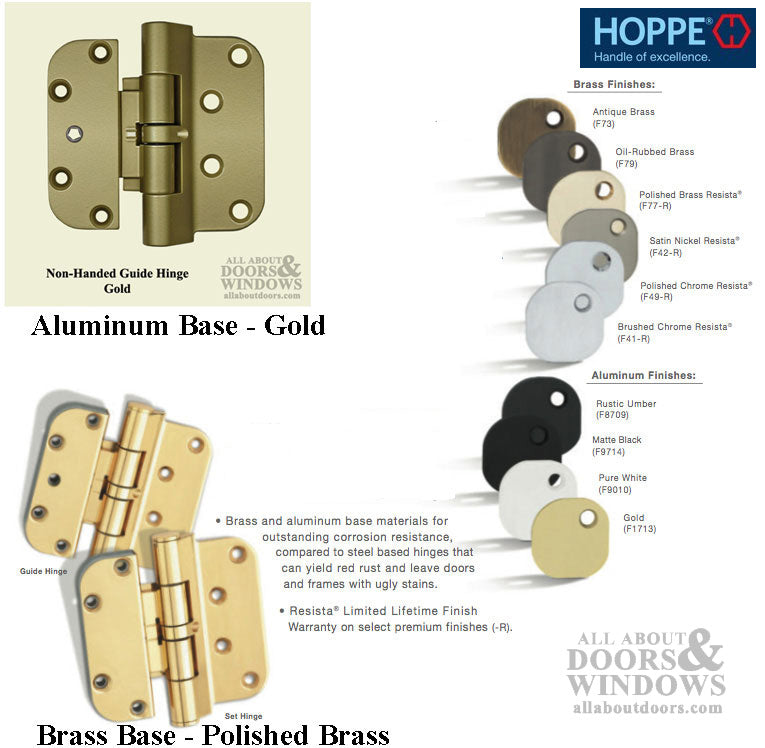

Option 1. Hoppe - We suggest replacing with the Hoppe Adjustable Guide and Set Hinge.

If replacing with Hoppe hinges, you should replace all 3 hinges ( 3 hinges, 1 set and 2 guide.)

Hoppe is the same size and screw hole pattern as the Ultimate 2D hinge


Option 2. Amesbury - makes an all in one Adjustable Hinge, with Vertical and Horizontal adjustment
