DISCONTINUED HINGE - See Replacement Options:

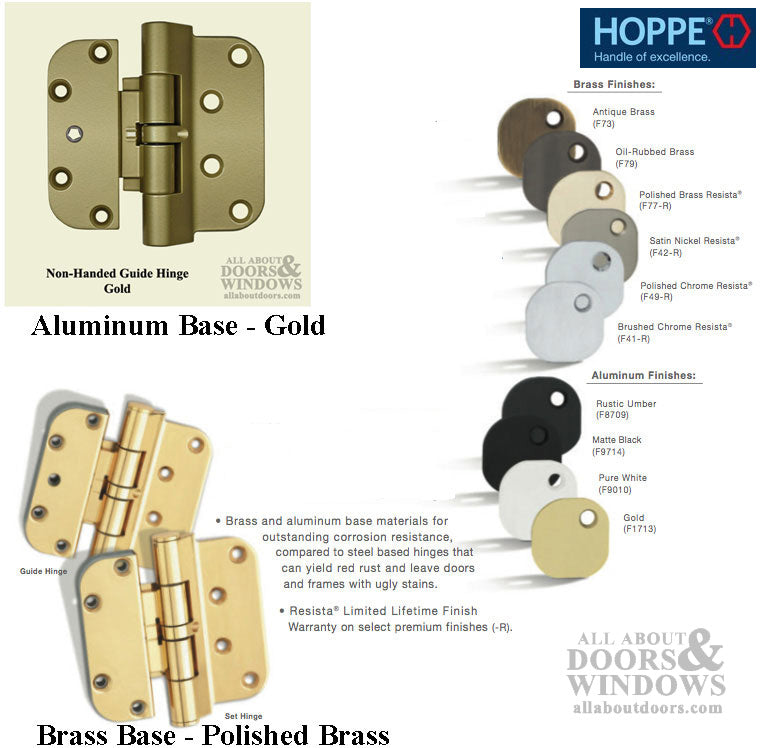

Option 1. Hoppe - We suggest replacing with the Hoppe Adjustable Guide and Set Hinge.

If replacing with Hoppe hinges, you should replace all 3 hinges ( 3 hinges, 1 set and 2 guide.)

Hoppe is the same size and screw hole pattern as the Ultimate 2D hinge


Option 2. Amesbury - makes an Adjustable Hinge, with all in one Vertical and Horizontal adjustment

The Leaf side has the same screw hole pattern, the Door side screw pattern has 2 screws in different locations.


Most often found on doors with Fuhr multipoint lock hardware.

Used by Hoppe HTL, Weathershield, Pozzi, Caradco, Hurd, Jeldwen and others.

Hinge will work on inswing or outswing doors.


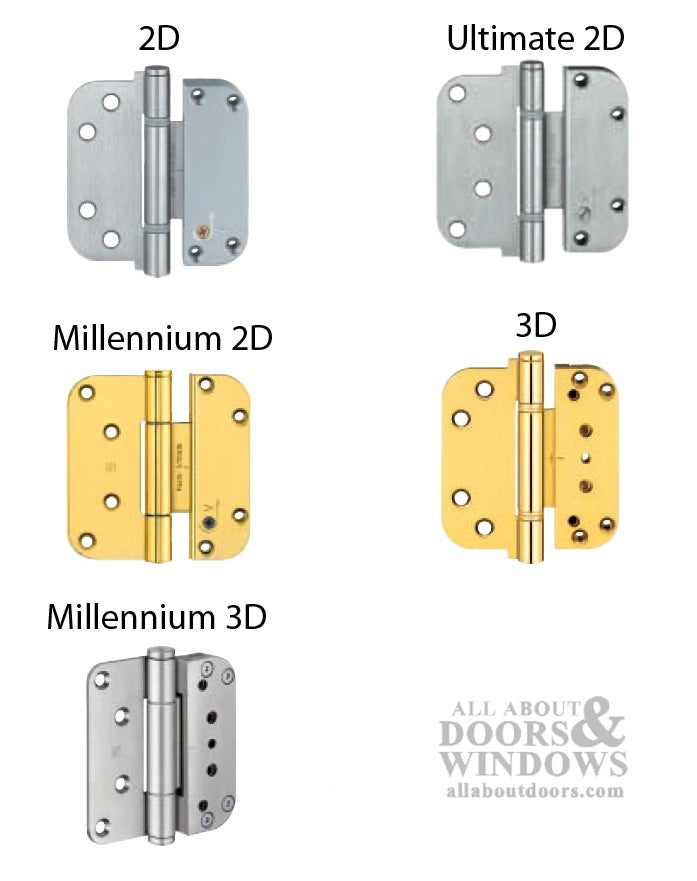

Ultimate 2D Adjustable Hinge Specifications:

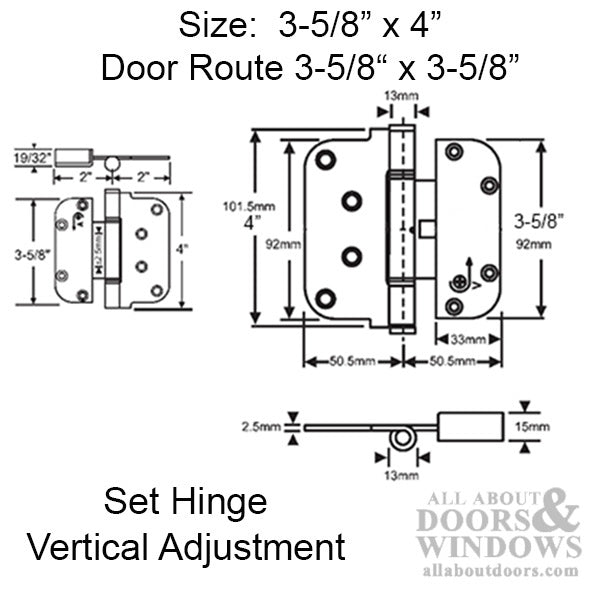

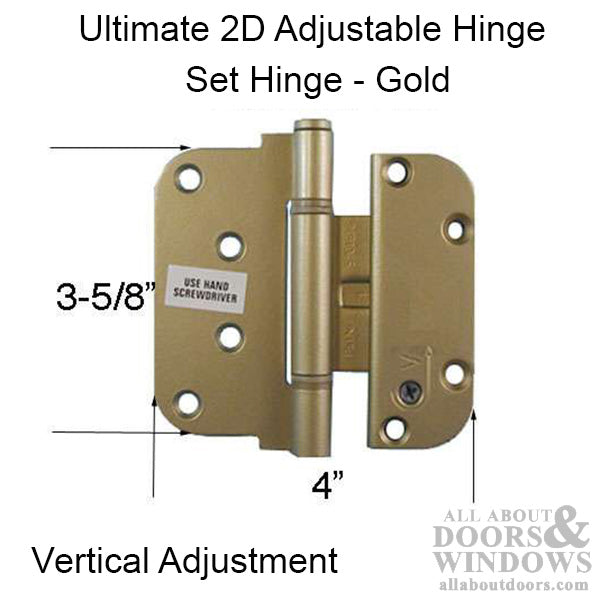

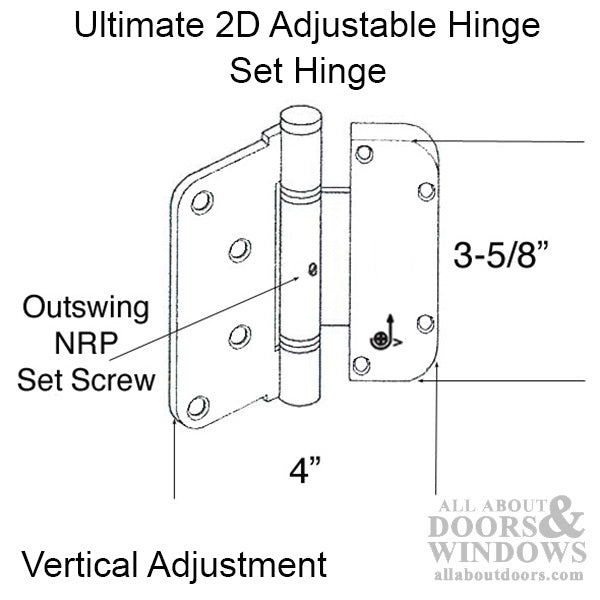

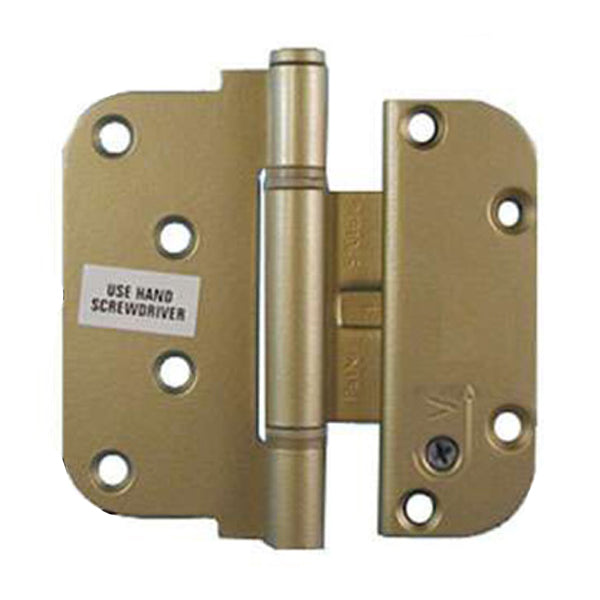

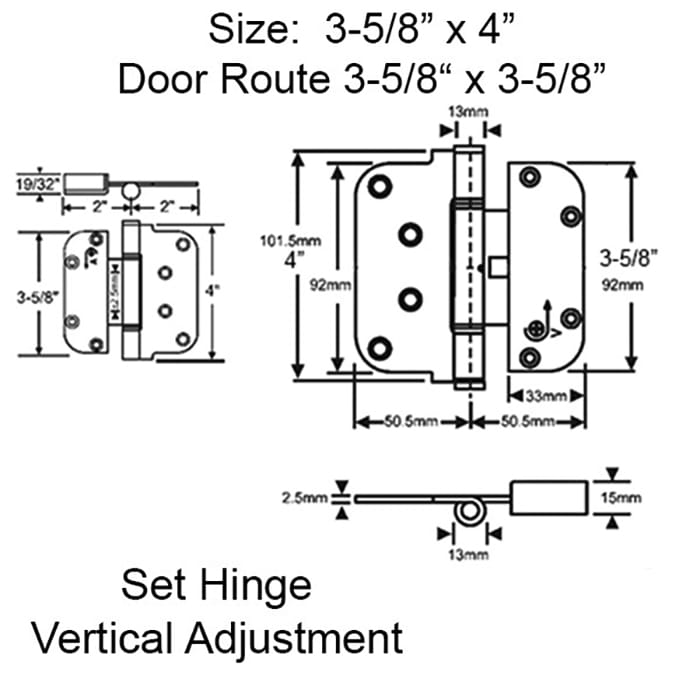

Hinge Model: Ultimate 2D Extended Leaf, open width  measures 4 inches (101mm)

Hinge Type:  SET HINGE (V), Adjustable for Horizontal movement

Route in Door: 3-5/8 inch  (92mm)

Route in Frame: 3-5/8 inch  (92mm)

Hinge Thickness: 19/32 inch on door panel side

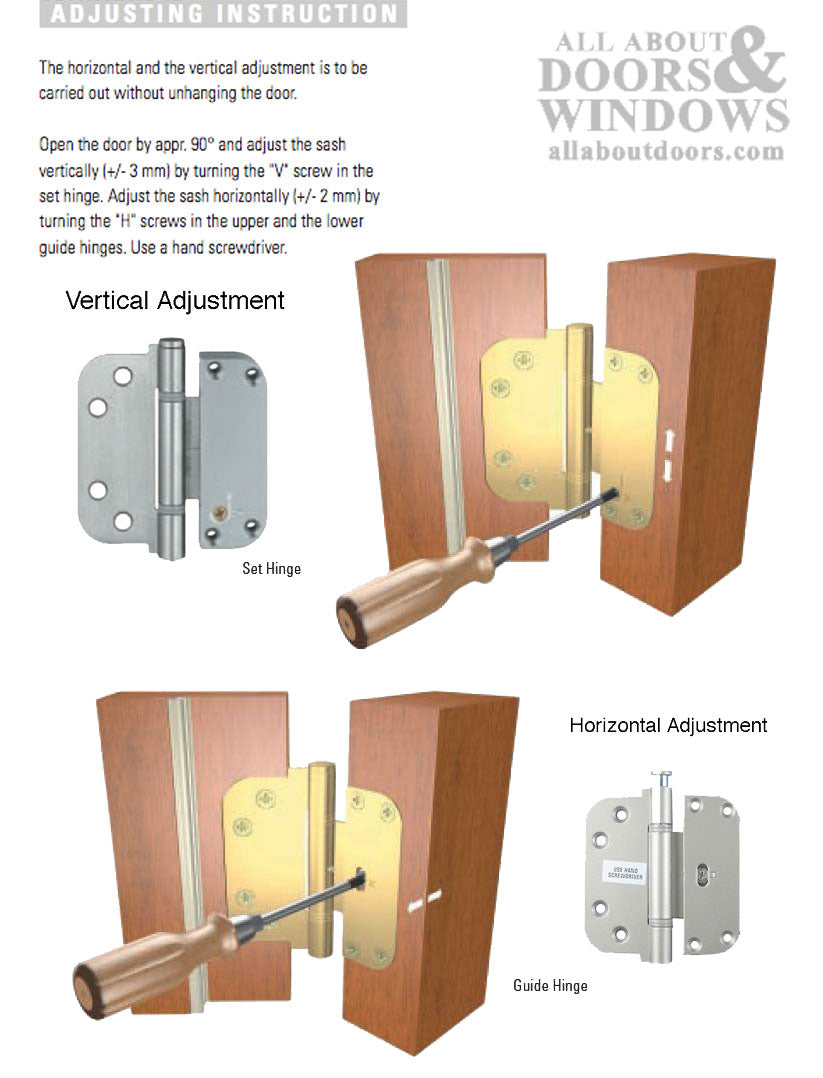

The Guide Hinge (H) is installed at the top and bottom to provide horizontal adjustment.

They are used with the SET HINGE (V) which is installed at the center for vertical adjustment

Four hinge doors have an additional Set or Guide Hinge depending on weight.

Jamb Screws - #9 x 3/4 Phillips Flathead;

Panel Screws - #8 x 1-1/2 Phillips Flathead.

Handing: Non-handed, Reversible,  Removable Pin for Left or Right hand doors

Material: Steel

Color / Finish: Gold Powder Coat

Markings: Pat. Nr - 5.701.636
