UNAVAIL. Papaiz ML75 Storm Door Lock - Replacement Avail.
Part Number: 301003THIS LOCK IS CURRENTLY UNAVAILABLE. Can be replaced with: 302043, but you will have to redrill the holes in your door for the faceplate; new faceplate will cover old holes

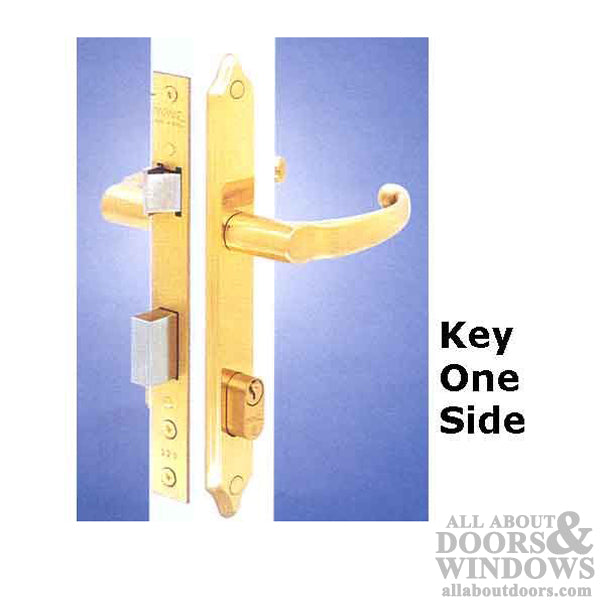

Papaiz Lock: Complete Mortise Lockset : ML-75

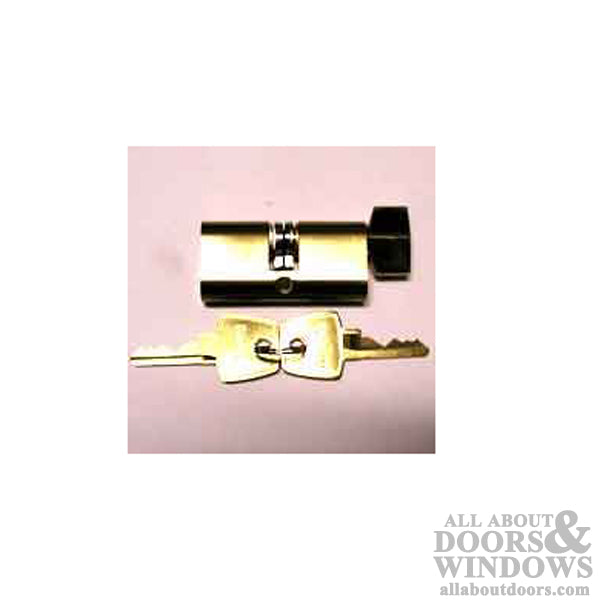

Includes: Solid Brass Handles, Trim Plates, 323 Slimline Lockcase , Screws, Single cylinder lock, with key on one side, and 2 keys.

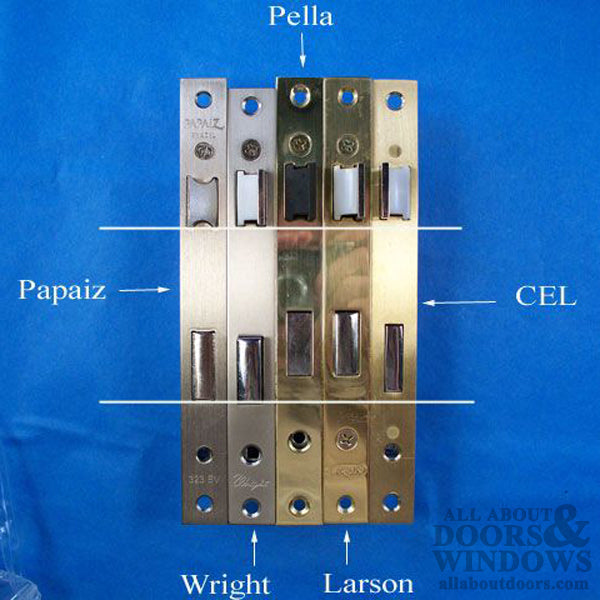

Will replace most Pado, Emtek, Emco, Juralco, and Wright brands.
Fits doors from 1 to 1-3/8 inch thick.
IF door is 1-1/2 to 1-7/8 inches thick it requires longer spindle and screws..PLEASE measure and tell us the thickness of your door with your order. Note: The 323 Lockcase uses a 13/16 inch wide by 7-11/16 inch face plate for the spring latch and the deadbolt.
Resources:
How to Install Papaiz Locks
How to Replace Mortise Locks.
Papaiz Lock: Complete Mortise Lockset : ML-75
Includes: Solid Brass Handles, Trim Plates, 323 Slimline Lockcase , Screws, Single cylinder lock, with key on one side, and 2 keys.
Will replace most Pado, Emtek, Emco, Juralco, and Wright brands.
Fits doors from 1 to 1-3/8 inch thick.
IF door is 1-1/2 to 1-7/8 inches thick it requires longer spindle and screws..PLEASE measure and tell us the thickness of your door with your order. Note: The 323 Lockcase uses a 13/16 inch wide by 7-11/16 inch face plate for the spring latch and the deadbolt.
Resources:
How to Install Papaiz Locks
How to Replace Mortise Locks.
