Unavailable - 20 Inch Enhanced Casement Hinge, Head, Right, 1995-1998

Part Number:1361338
Please note, this product has been discontinued.
This part has been Discontinued and is limited to existing inventory.

Discontinued; Limited Quantities or Replace with New style Corrosion Resistant HingeYears in Service: 1994-1998.

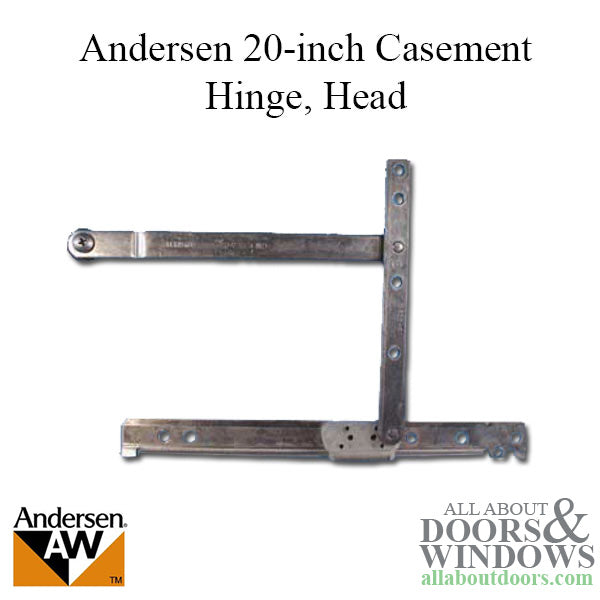

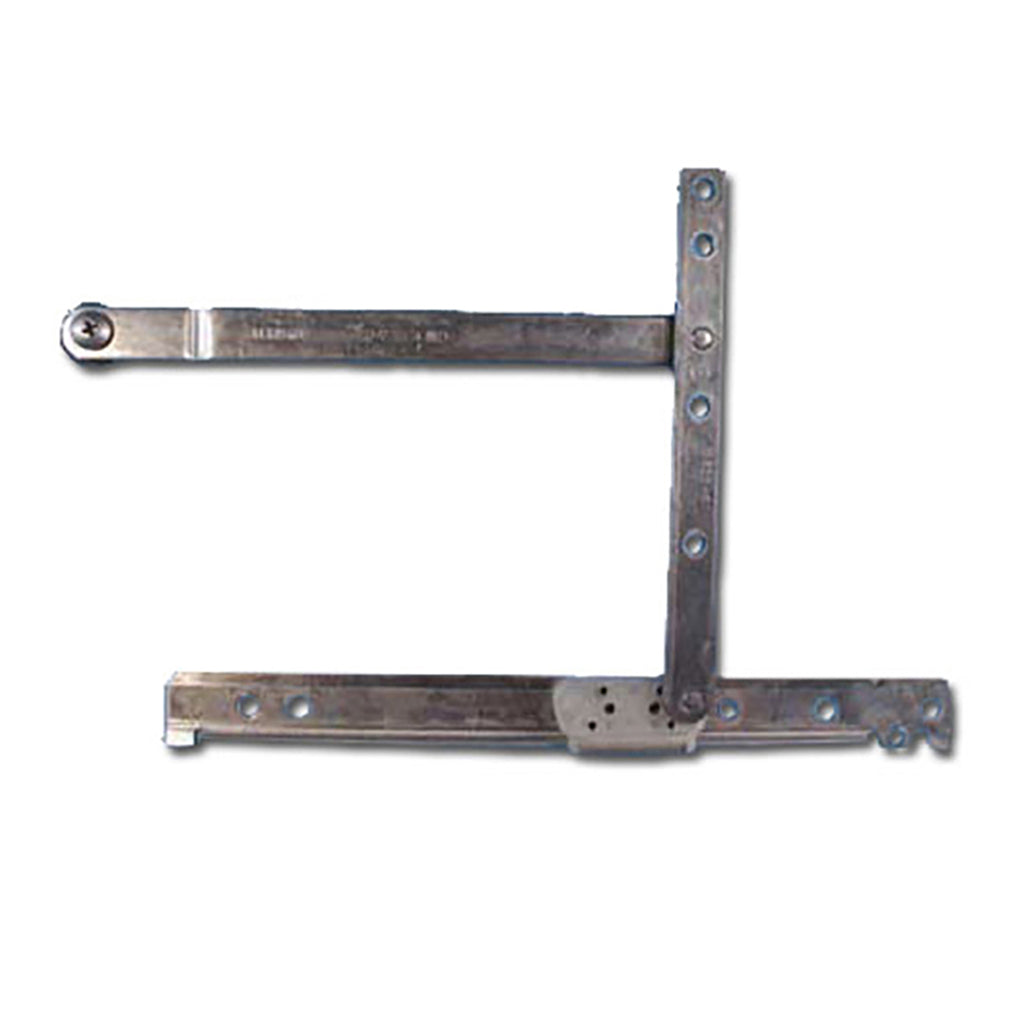

Andersen Enhanced Casement Window; Head Hinge ( top ) Right Hand.
Shoe Color: White

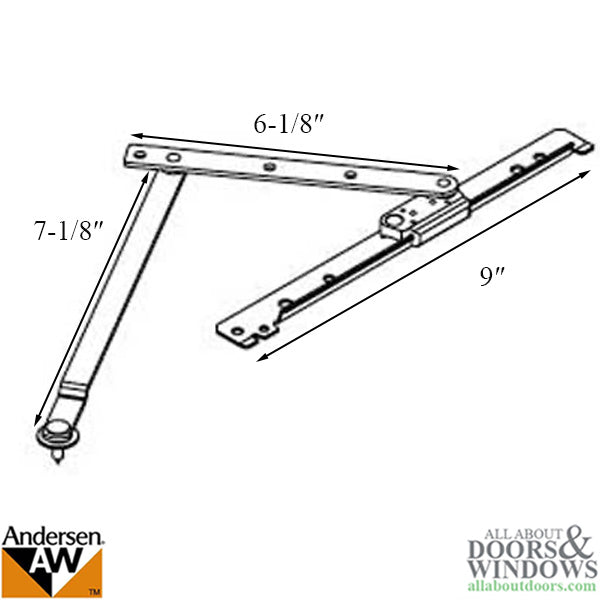

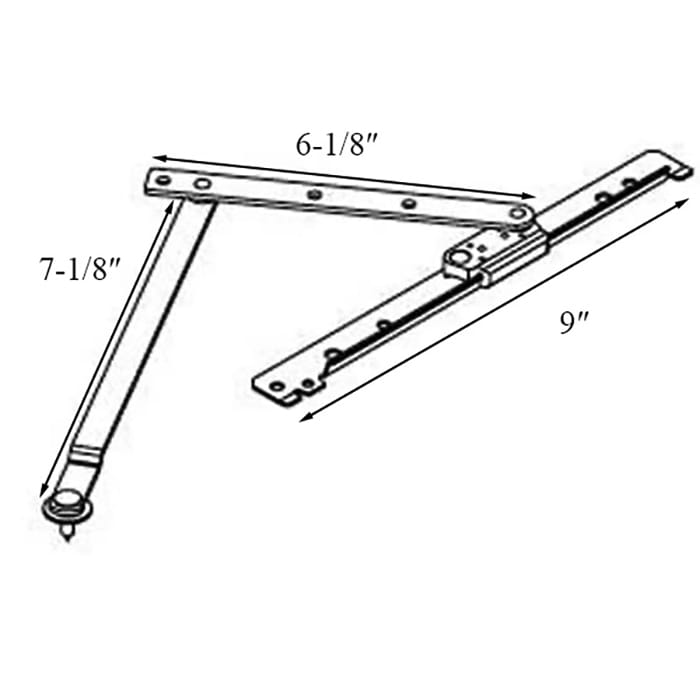

Track Length: 9 inch
6-1/8 inch Hinge link Markings: 9425-4
7-1/8 inch Hinge link Markings: 9436-3 ( link with screw)
Window Size: 20 Inch Opening; CW35-6 and CW6 Windows
Hinge Type: Standard Head Hinge, Split Arm with Screw
Window Handing: Window are viewed from Outside, by location of hinge
Pricing: Sold Each

NOTE: When standard hinge is not available replace with new Corrosion Resistant Hinge
Related Parts:
Standard Head Hinge: (top) 1361339 Left ; 1361338 Right N/A (discontinued)
Standard Sill Hinge: (bottom) 1361337 Left ; 1361336 Right
