Unavailable - Hinge, Head, Left Andersen Casement, 20 Inch Standard

Part Number:1361339
Please note, this product has been discontinued.
This part has been Discontinued and is limited to existing inventory.

Limited Quantities or Replace with New style Corrosion Resistant HingeYears in Service: 1994-1998.

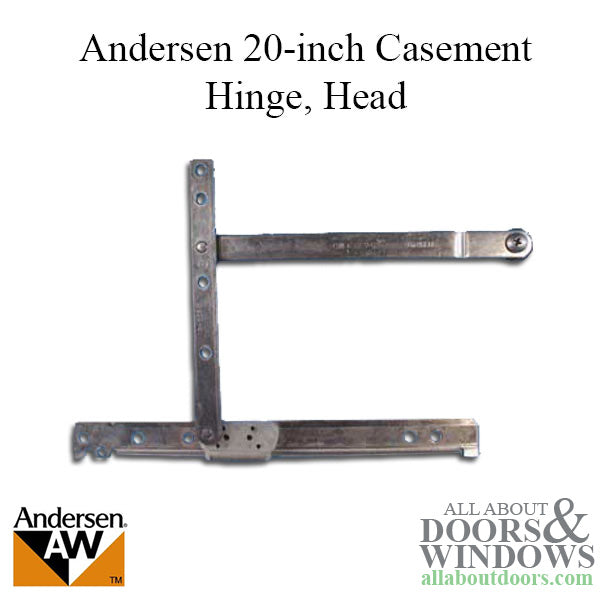

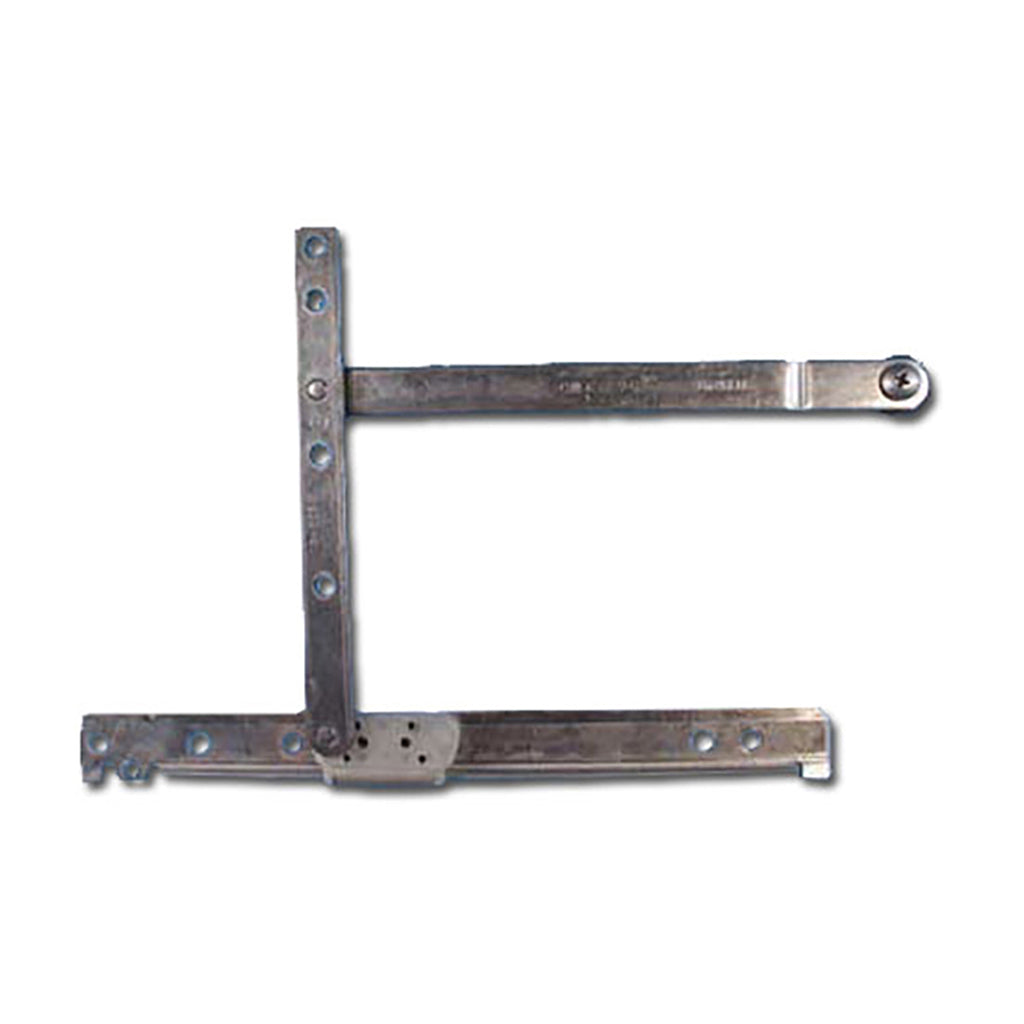

Andersen Enhanced Casement Window; Head Hinge ( top ) Left Hand.
Shoe Color: White
Track Length: 9 inch

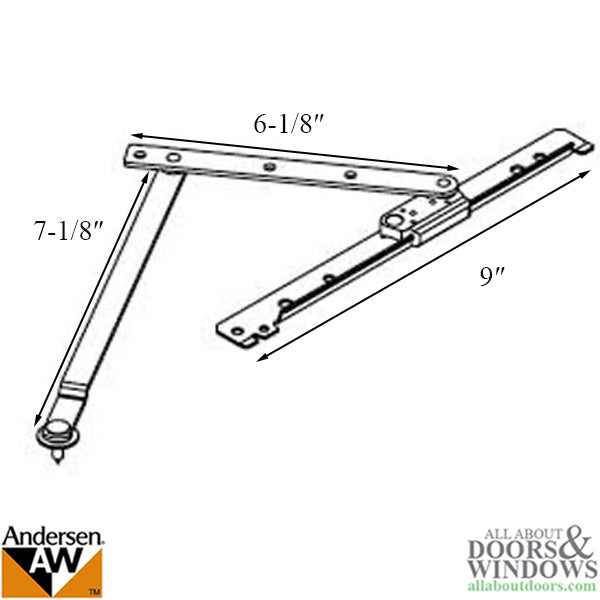

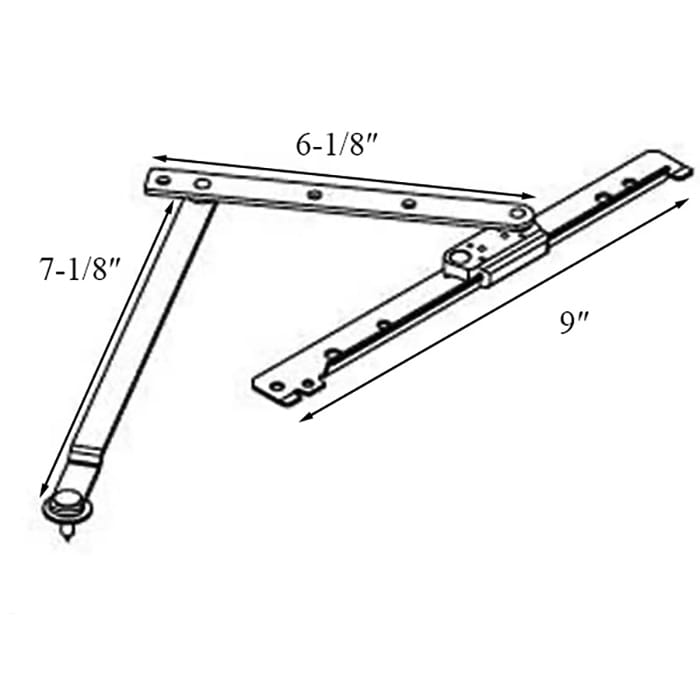

6-1/8 inch Hinge link Markings: 9425-4
7-1/8 inch Hinge link Markings: 9436-3 ( link with screw)
Window Size: 20 Inch Opening; CW35-6 and CW6 Windows
Hinge Type: Standard Head Hinge, Split Arm with Screw
Window Handing: Window are viewed from Outside, by location of hinge
Pricing: Sold Each

NOTE: When standard hinge is not available replace with new Corrosion Resistant Hinge
Related Parts:
Standard Head Hinge: (top) 1361339 Left ; 1361338 Right N/A (discontinued)
Standard Sill Hinge: (bottom) 1361337 Left ; 1361336 Right
