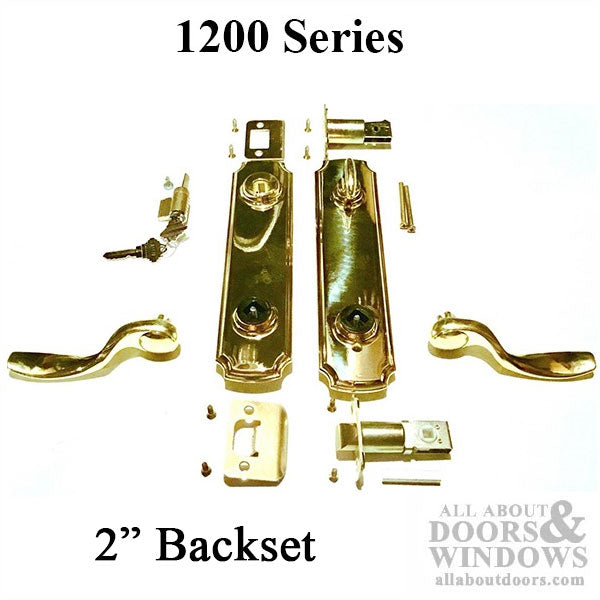

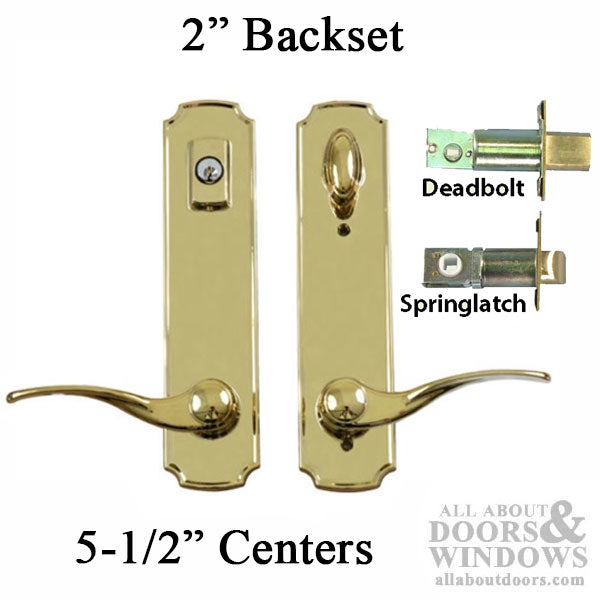

W&F 1200 Series Lock 5-1/2 C-C, 2" Backset - Polished Brass
Use the arrows or swipe left to view all images for this product

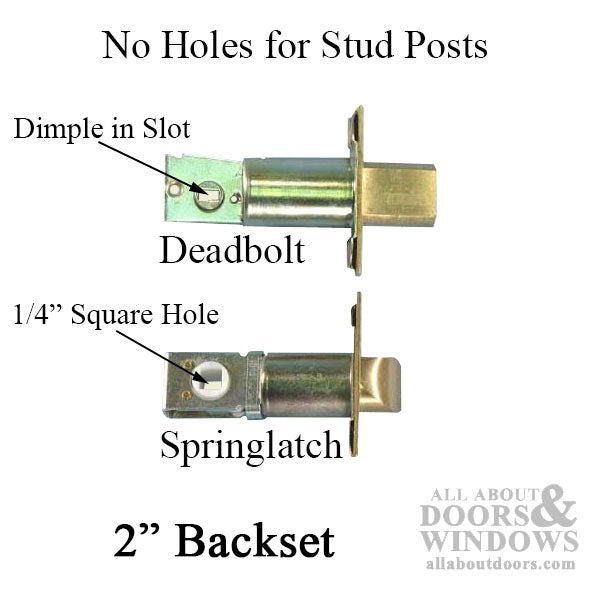

The 2" backset latch for this handle set has been discontinued.
W&F 1200 Series Lock 5-1/2 C-C, 2" Backset - Polished Brass
Specifications:
- Application: Hinged Door with deadbolt
- Style: Eclipse
- Backset: 2 Inches

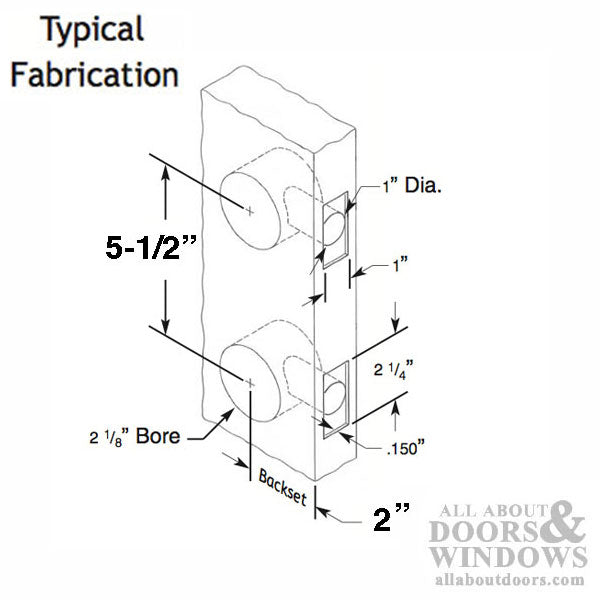

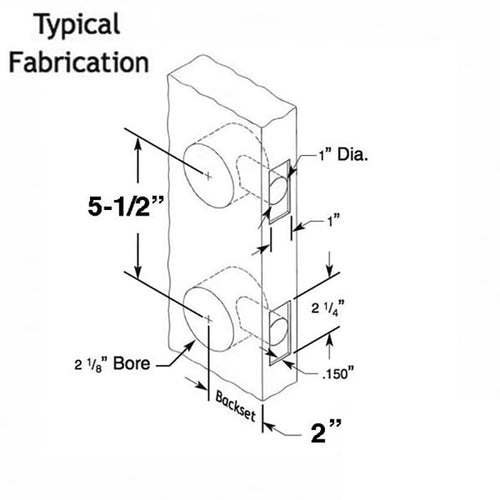

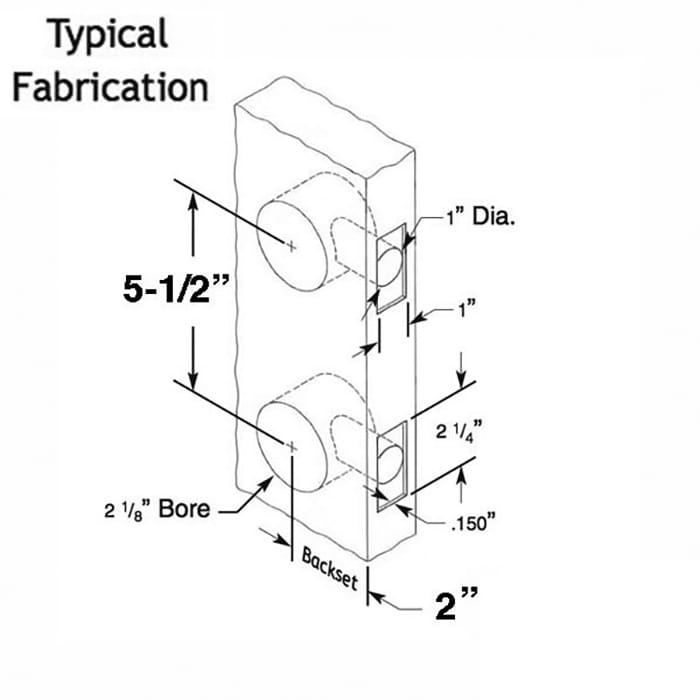

- Handle Spacing: 5-1/2 Inches (Center of Latches)

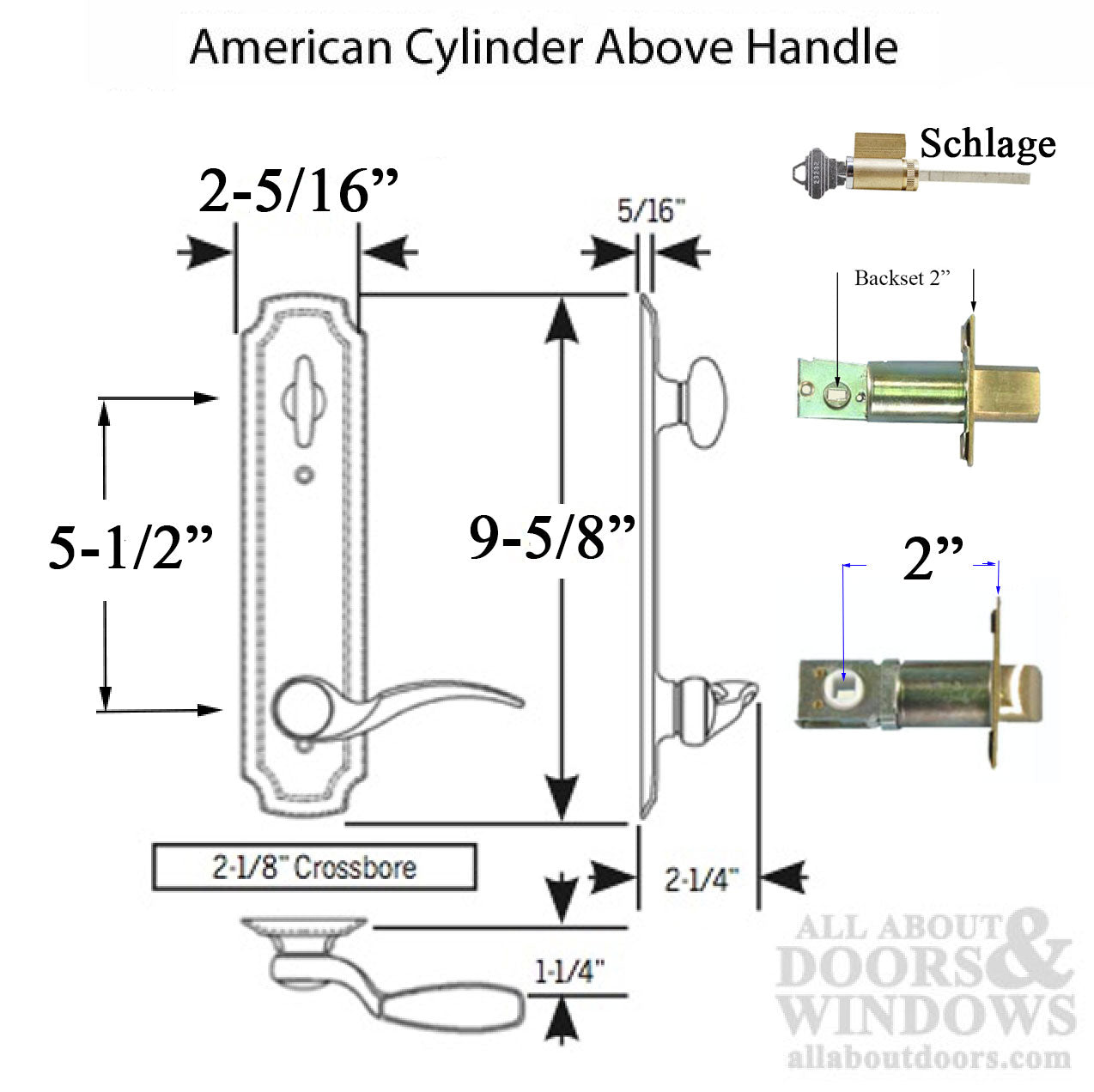

- Backplate Width: 2 5/16 Inches
- Backplate Height: 9-5/8 Inches
- Door Thickness: 1-3/4 Inches
- Keyway: Schlage SC1, 2 keys
-
Color / Finish: Polished Brass US3
NOTE: These have been discontinued by W&F
OPTIONS:
1. Replace Door
2. Replace Handle set with passage and deadbolt lock with 2 inch backset
* 40505 - Passage lever, Stubby
* 40521 - Single Cylinder Deabbolt for 2-1/8" Diamter Hole
* 40522 - Double Cylinder Deadbolt for 2-1/8" Diamter Hole
3. Mortise door for single point lock with 2" backset
** 6-C4873-50-0-8 G-U Single point lock, 2" backset
** HOPPE 22/45 Single point lock, 1-3/4" Backset
** For 1-3/4" Diameter hole, will need new handle set with 2" wide plate CONTACT Office for more information
