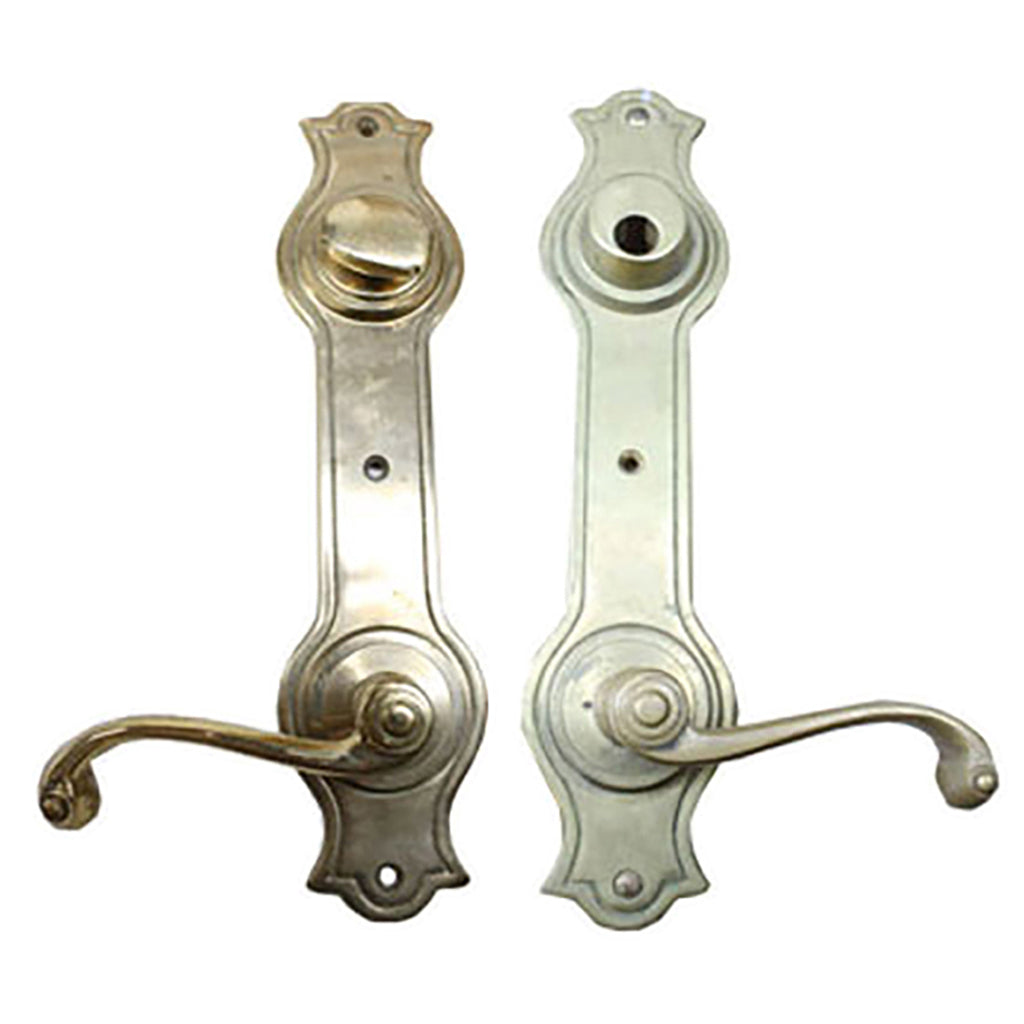

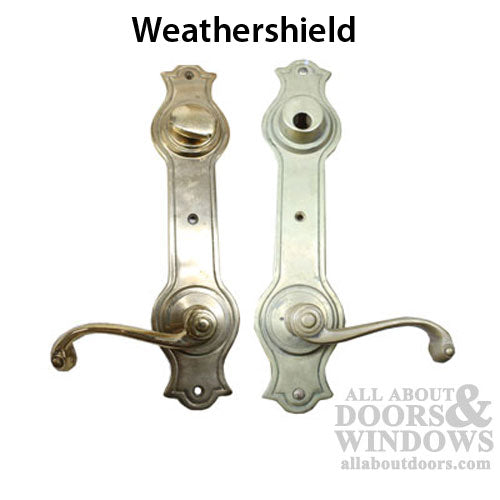

Weathershield 1990s Hinged door Trim - DISCONTINUED
For a replacement handle set please see part 14421
Used on Weathershield Hinged Patio Doors, Similar design for sliding doors

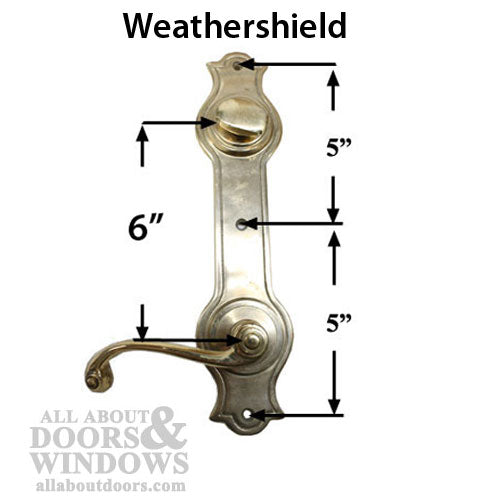

Center to center latch to deadbolt- 6 inch

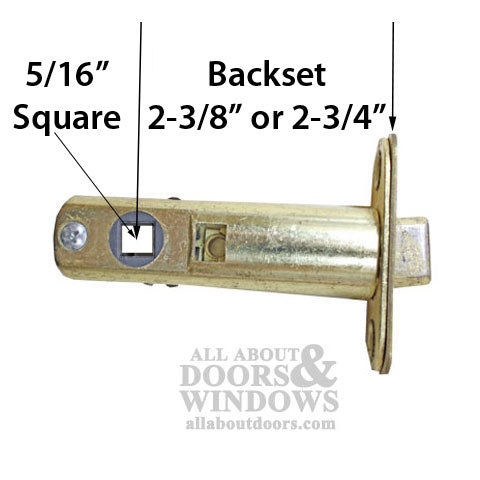

Spindle Diameter: 5/16 inch ( 8mm) Square

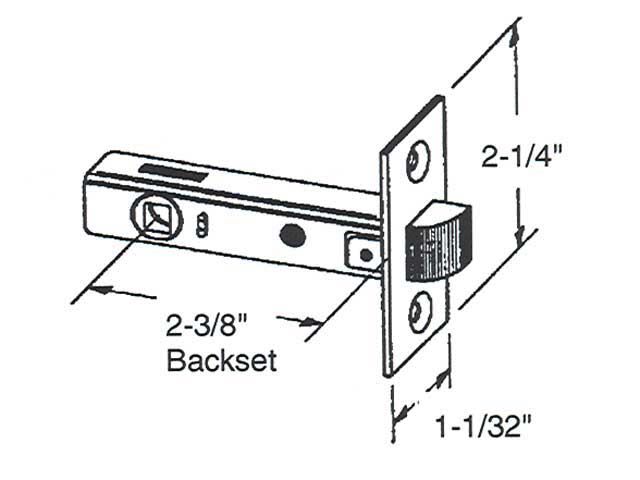

backset - 2-3/8 inch ( 60mm)
Screw spacing - 5 inch, 10 inch top to bottom
faceplate length - 11-3/16 inch
width of faceplate at widest - 2-3/8 inch (60mm)
For a replacement handle set please see part 14421
Used on Weathershield Hinged Patio Doors, Similar design for sliding doors
Center to center latch to deadbolt- 6 inch
Spindle Diameter: 5/16 inch ( 8mm) Square
backset - 2-3/8 inch ( 60mm)
Screw spacing - 5 inch, 10 inch top to bottom
faceplate length - 11-3/16 inch
width of faceplate at widest - 2-3/8 inch (60mm)
