This Style of Operator has been discontinued and is replaced with the new style Ellipse with contoured edges.
For a new Ellipse style replacement please see 55079

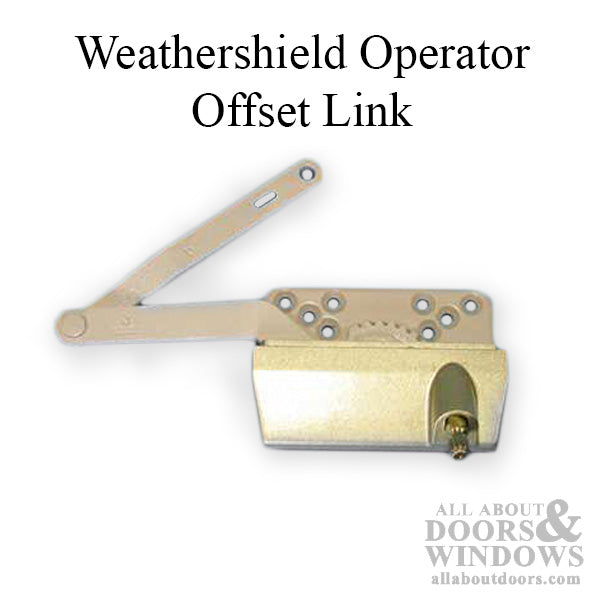

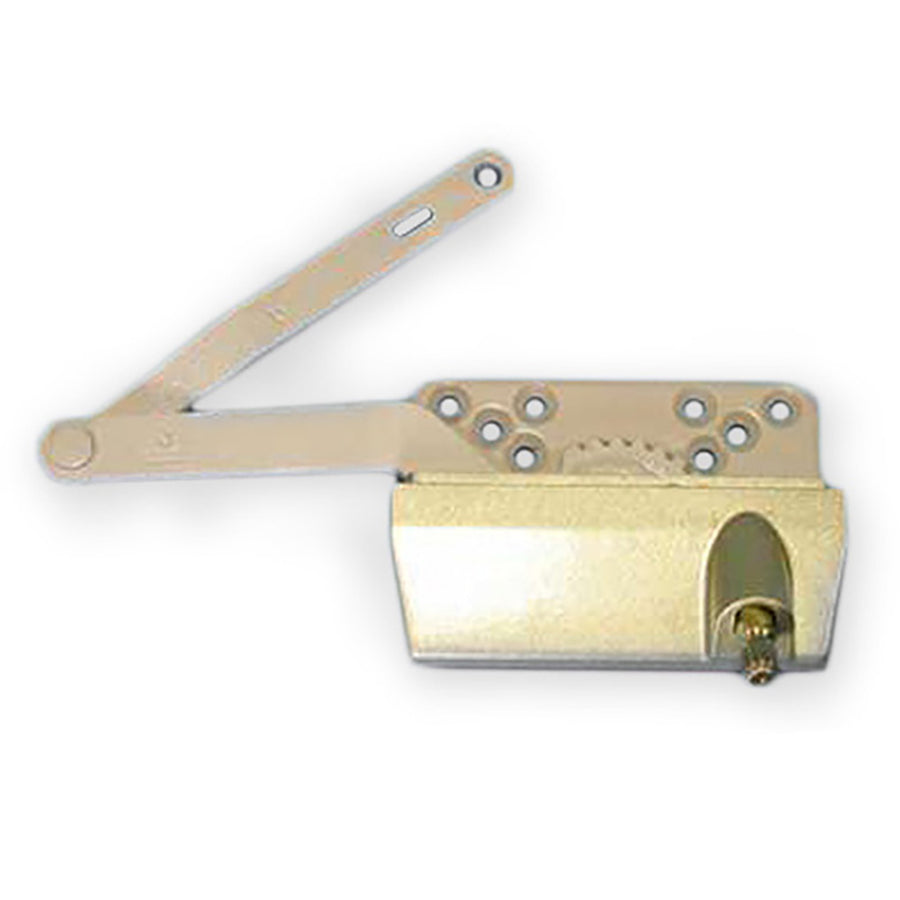

Weathershield casement Roto crank Operator, Offset link, Split Arm - Goldtone finish
Original link was mounted on bottom of main arm and Curved upwards
replacement can be a Straight arm Link mounted on top and is a substitute for the offset link mounted on bottom.

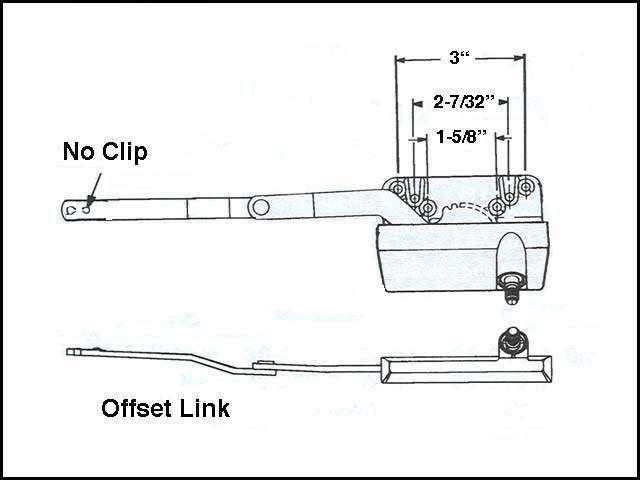

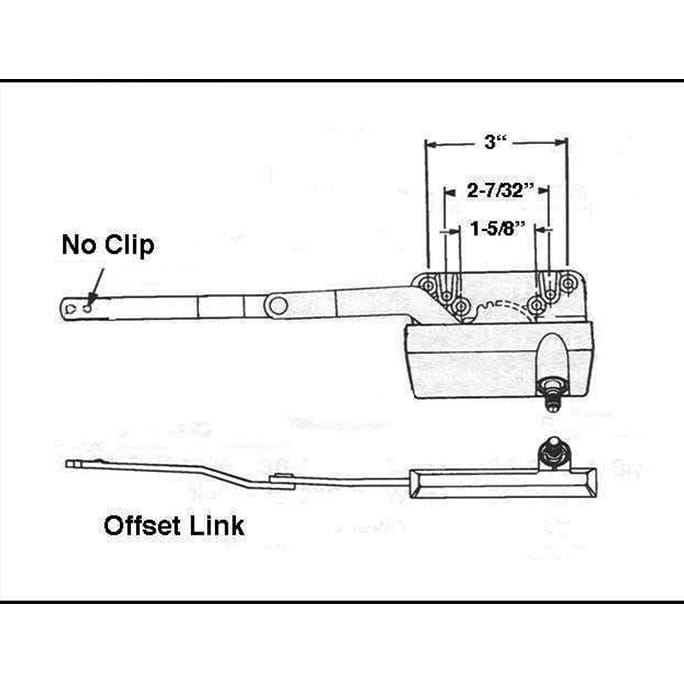

Offset Link: 4.5 inch # 30905 Mounted on bottom of main arm. ( Measured from center of rivet to center hole)
Link Length: 5 inches overall
Truth Part Numbers on some crank mechanisms: Main Body 45035, Main arm 40351 RH / 40352 LH, Link 30905, truth Mounting Bracket 40448
Handle is NOT included.
Related Parts:
55310 Handle - Gold
55083 - Left hand Replacement Operator
55084 - Right hand Replacement Operator
For a new Ellipse style replacement please see 55079
Weathershield casement Roto crank Operator, Offset link, Split Arm - Goldtone finish
Original link was mounted on bottom of main arm and Curved upwards
replacement can be a Straight arm Link mounted on top and is a substitute for the offset link mounted on bottom.
Offset Link: 4.5 inch # 30905 Mounted on bottom of main arm. ( Measured from center of rivet to center hole)
Link Length: 5 inches overall
Truth Part Numbers on some crank mechanisms: Main Body 45035, Main arm 40351 RH / 40352 LH, Link 30905, truth Mounting Bracket 40448
Handle is NOT included.
Related Parts:
55310 Handle - Gold
55083 - Left hand Replacement Operator
55084 - Right hand Replacement Operator
