Window Screen Frame Corner

Part Number: 03510-CLY Price: $0.35
COLOR: - Clay

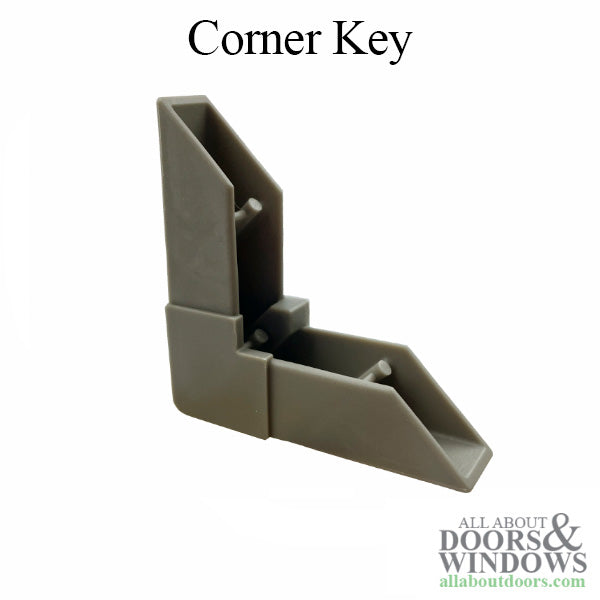

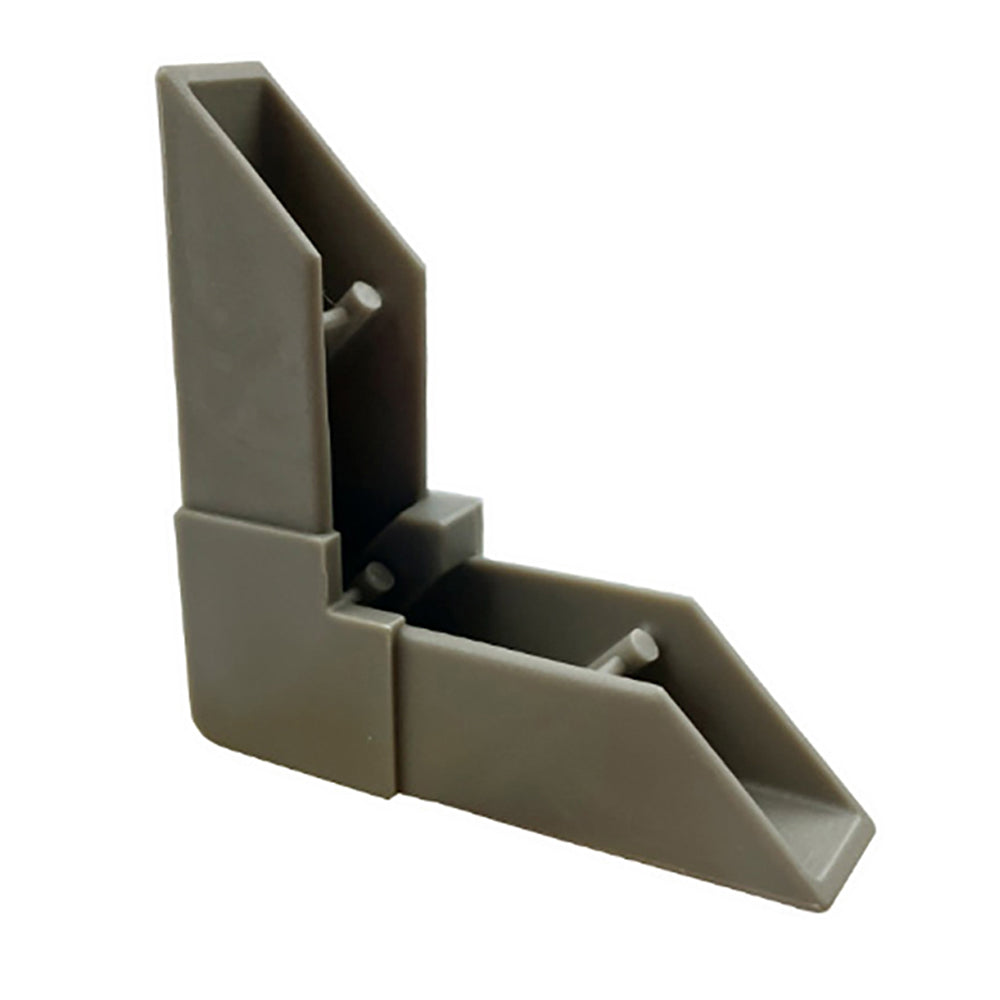

External Window Screen Frame Corner Key for Square Cut 7/16 inch frame material
Used by Weather Shield Visions 1000, 2000, 3000 series vinyl windows and others

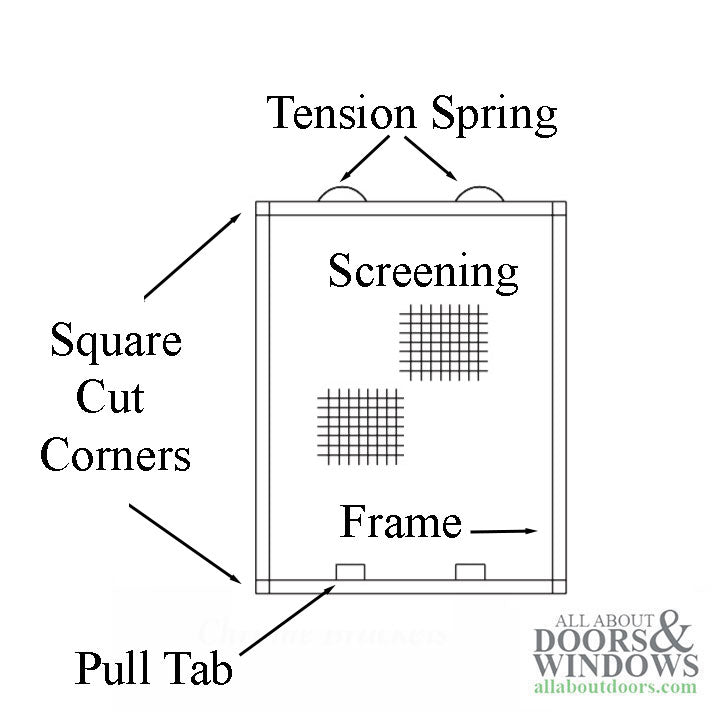

Application: Holds the 4 corners of the window screen frame together
Aluminum Frame Material: 7/16 inch thickness

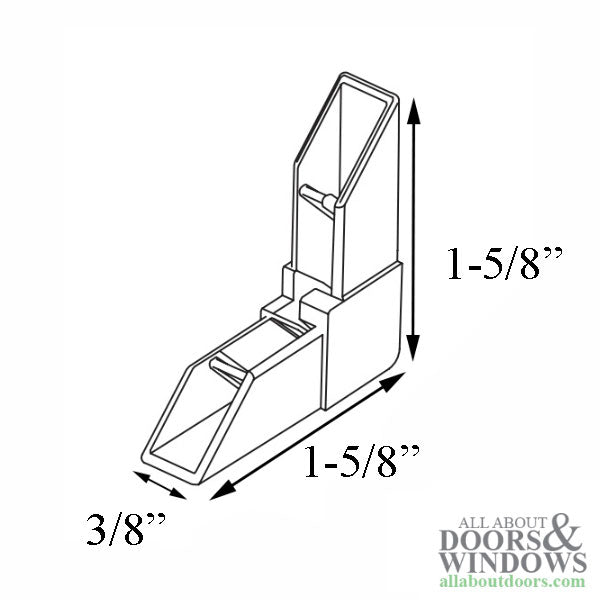

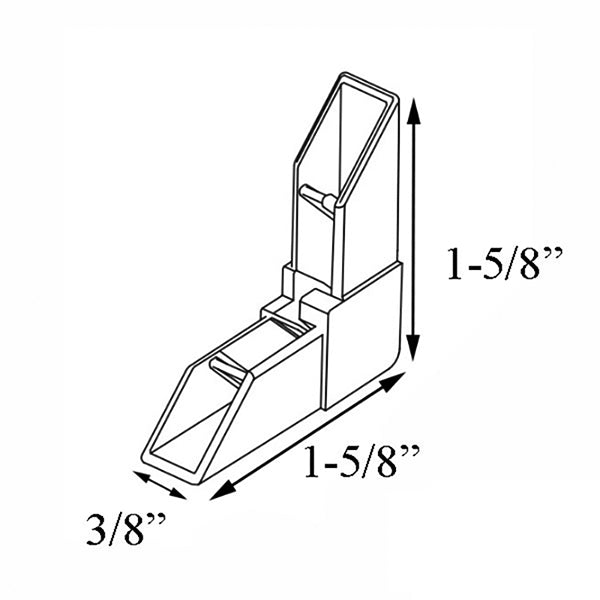

Corner Outside Thickness: 7/16 inch
Corner Inside Thickness: 3/8 inch
Length: 1-5/8 inch
Material: Nylon/ Plastic
Color: Clay and Coppertone ( Brownish)

NOTE:

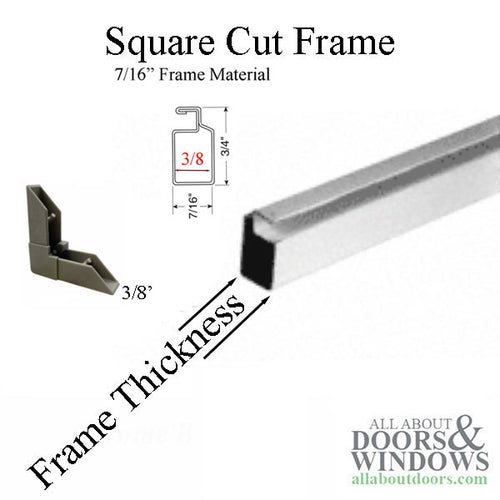

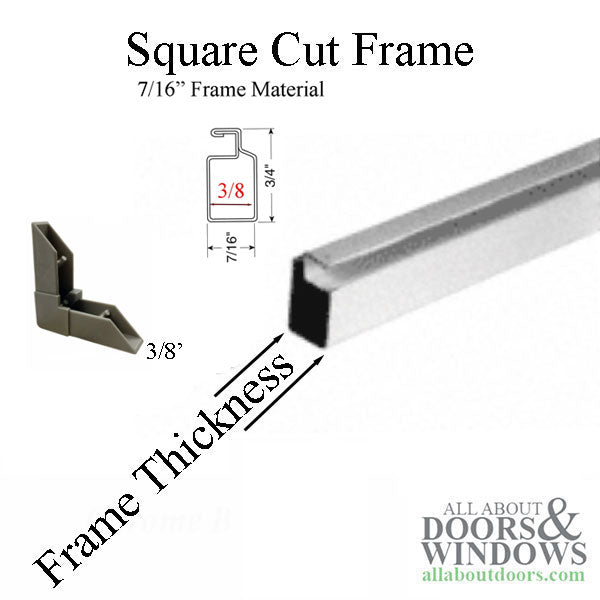

Screen corners are made to fit certain frame material. Aluminum frame material comes in different thickness and widths. The corner has to be able to slide into the hollow frame, So thickness is important, styles can vary.
Standard Screen Frame Material comes in 1/4, 5/16, 3/8 and 7/16 thickness, and 3/4 or 1 inch widths.
