WINKHAUS 4-Point Multipoint Lock

This lock is no longer available. It has been discontinued. Replacement information below.

Used in Weather Shield hinged patio doors made prior to March 2002
Used in ProShield hinged patio doors made prior to August 2004
Used in Visions hinged patio doors made prior to February 2004

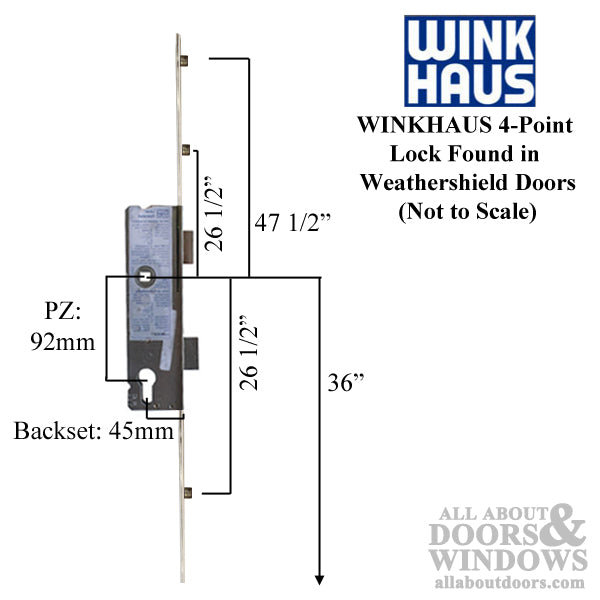

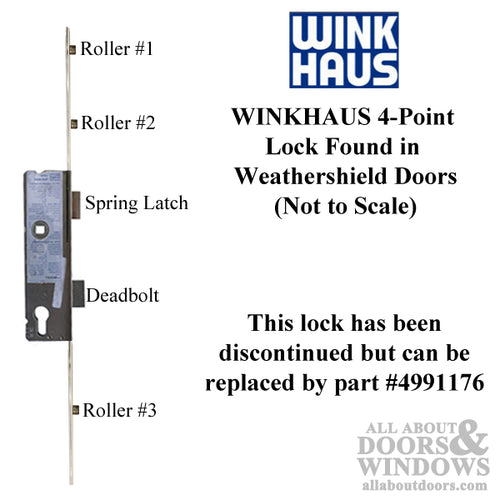

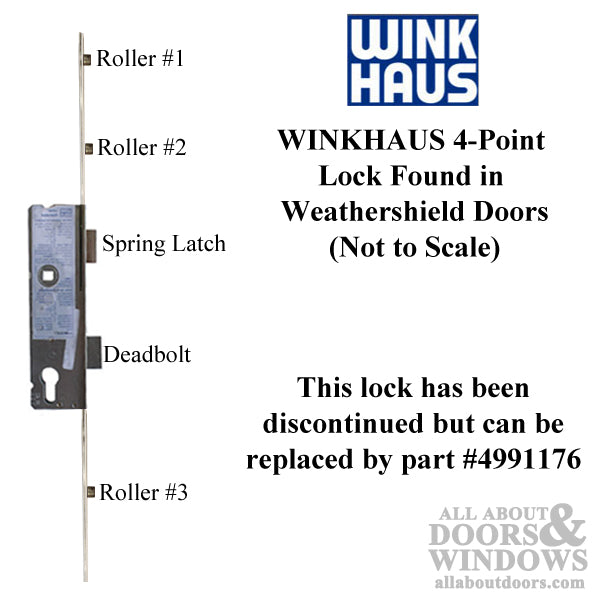

3 rollers
Bottom roller located 26-1/2 inches down from handle
Middle roller located 26-1/2 inches up from handle
Top roller located 47-1/2 inches up from handle
Backset: 45mm
PZ: 92mm

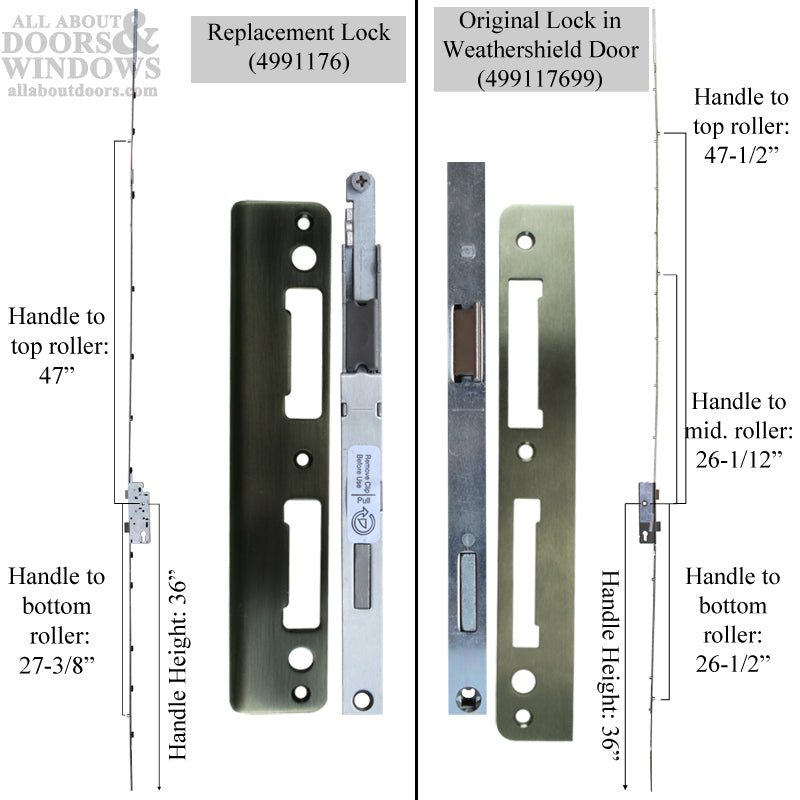

Replace with HOPPE 3-Point Lock: 4991176
*Note: replacement lock has 2 rollers, one below the handle and one above. Middle roller strike from original lock will be unused and can be removed or just left alone.
