Winkhaus Multipoint One-Piece Lock Used in a Weathershield Door (Euro-Style key-below handle)

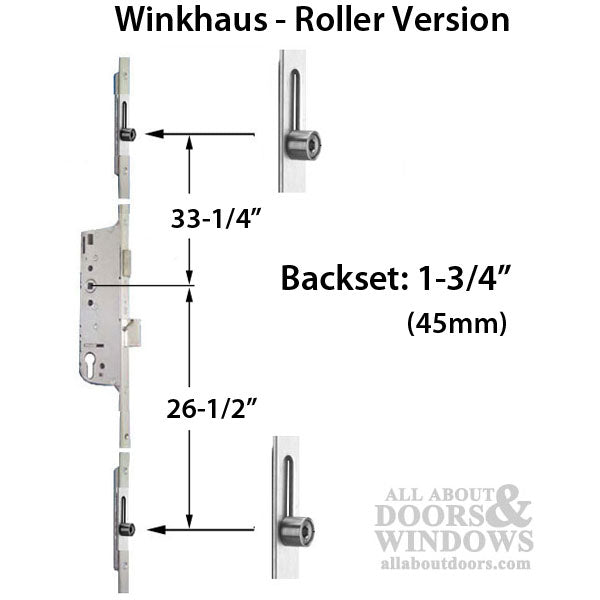

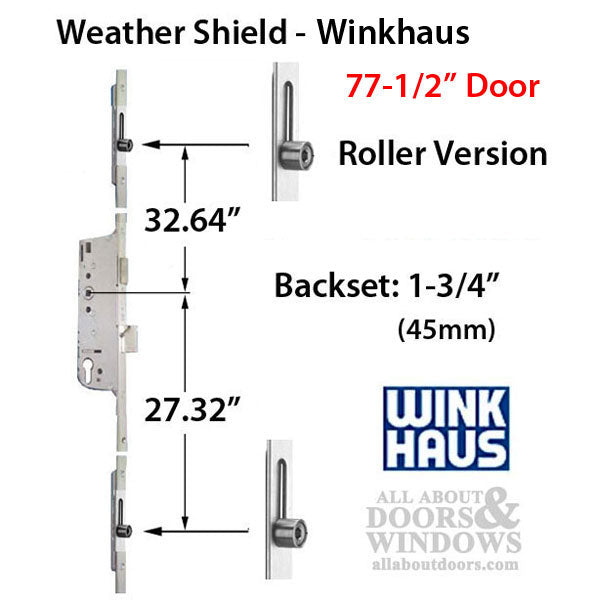

Top Roller Location: 33-1/2 inches up from handle
Bottom Roller Location: 27-3/8 inches up from handle

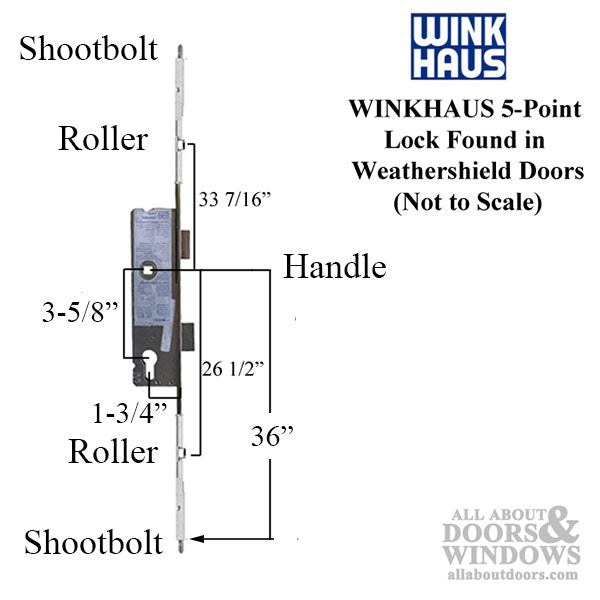

Handle Height: 36 inches
PZ (center of handle to center of cylinder): 92mm
Backset: 45mm

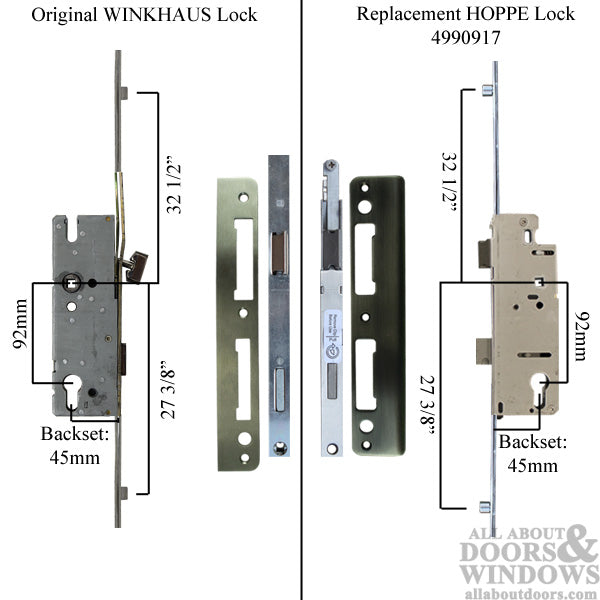

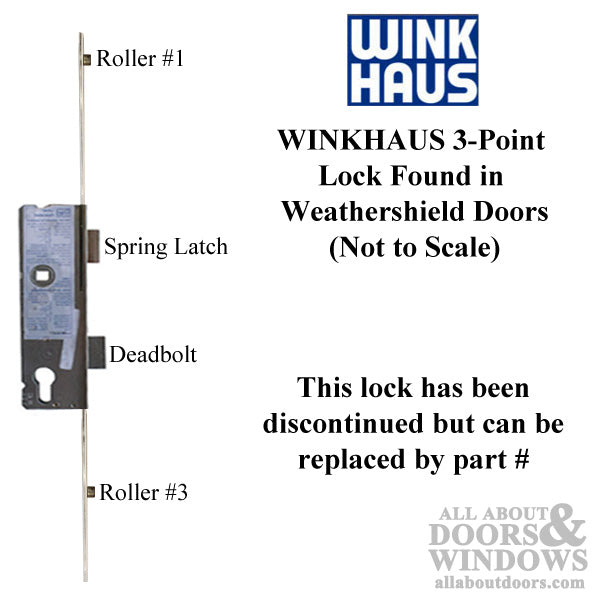

This lock is discontinued and no longer made. HOPPE manufactures a custom replacement lock. The part number is 49902002-KIT and replaces this height and others up to 92-7/8 inches, with the SAME roller positions (comparison shown in picture 2 above).
