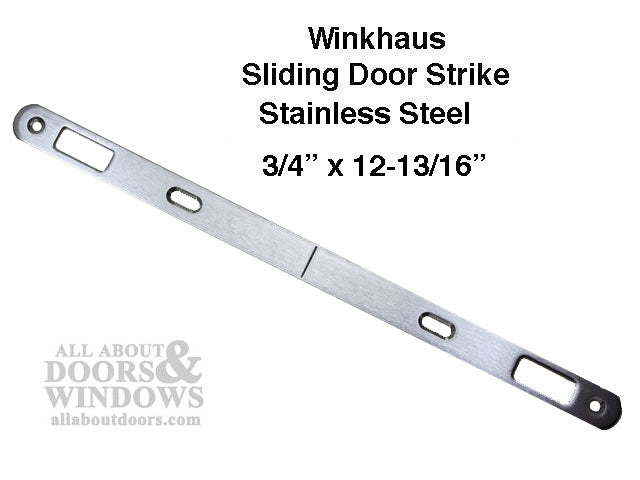

Winkhaus Sliding Door Strike Plate
Ends: Radius
Shape: Flat

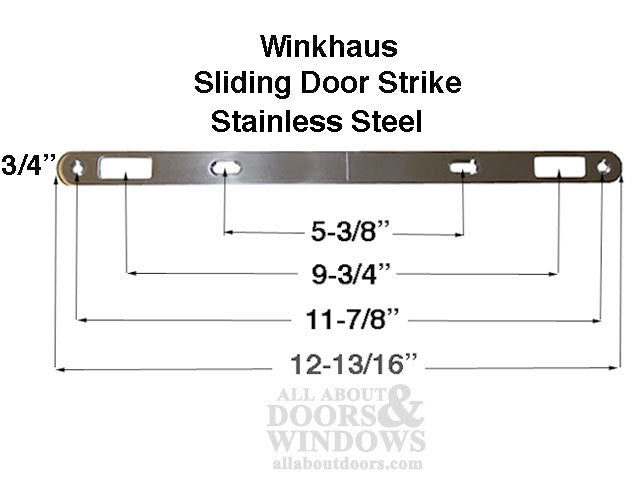

Width: 3/4 inch
Length: 12-13/16 inch
Includes Strike only, no screws

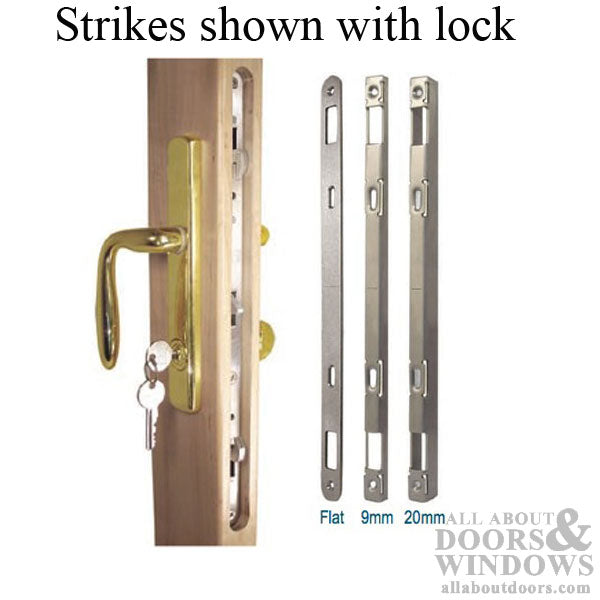

3 strike plate options -
Flat with radius corners (available)
Flat with square corners (special order, contact office)
Raised square (special order, contact office)

Used with WInkhaus 2 point sliding door lock

Applications
Sliding doors in wood, fiberglass, aluminum, or vinyl / pvc.
Exterior or interior doors; 1-3/4" or 2-1/4" thickness.

Benefits

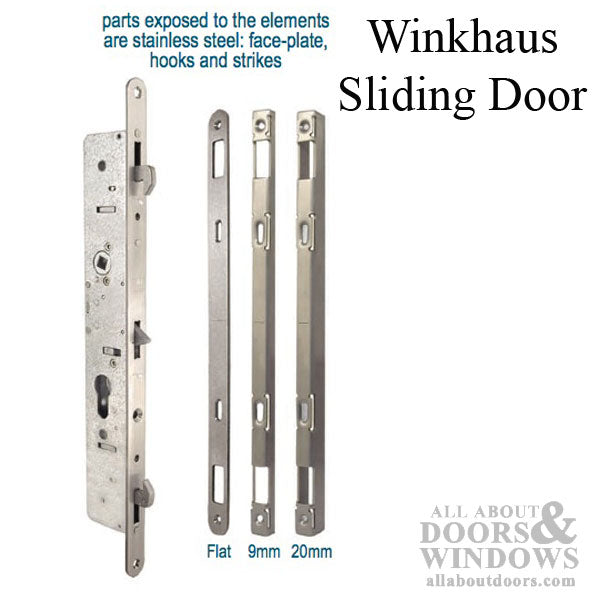

Stainless steel face-plate, hooks and strikes.
Easy to operate.
90o cylinder thumbturn provides visual locking indicator.
Double-hooks are spring-loaded and automatically latch behind strike plate.
Anti-slam feature prevents unintentional locking and damage during operation.
Hooks engage in opposing directions for security protection from lift-out.

Features
Lock backset: 28 mm (1-1/8").
Lock center: 92 mm (3-3/4").
Lock spindle hub: offset, for 8 mm square spindle.
Face-plate: stainless steel 304 grade brushed, 20 mm (13/16") wide, 370 mm (14-1/2") tall, 2.5 mm thick, with arched ends.
Lock materials: stainless steel face and hooks, galvanized steel body.
Hooks are stainless steel 304 grade and adjust in or out +/ 2 mm.
Adjustable strikes: 3 options in stainless steel 304 grade brushed.
Screws not included. (Use #7 or #8, 2 per lock, 4 per strike.)
