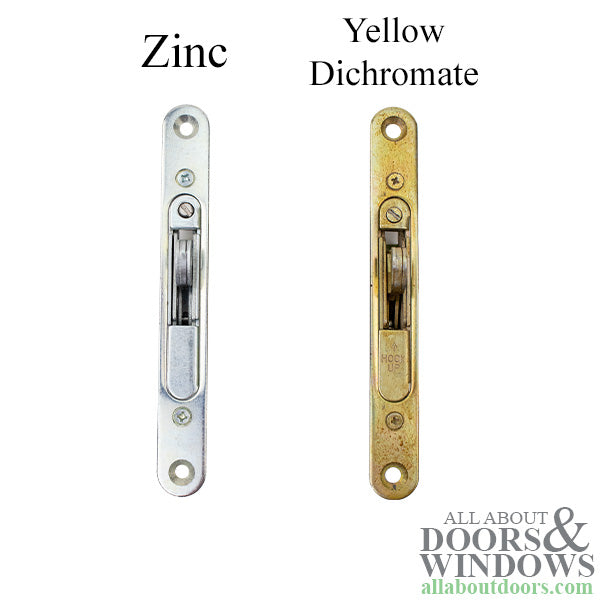

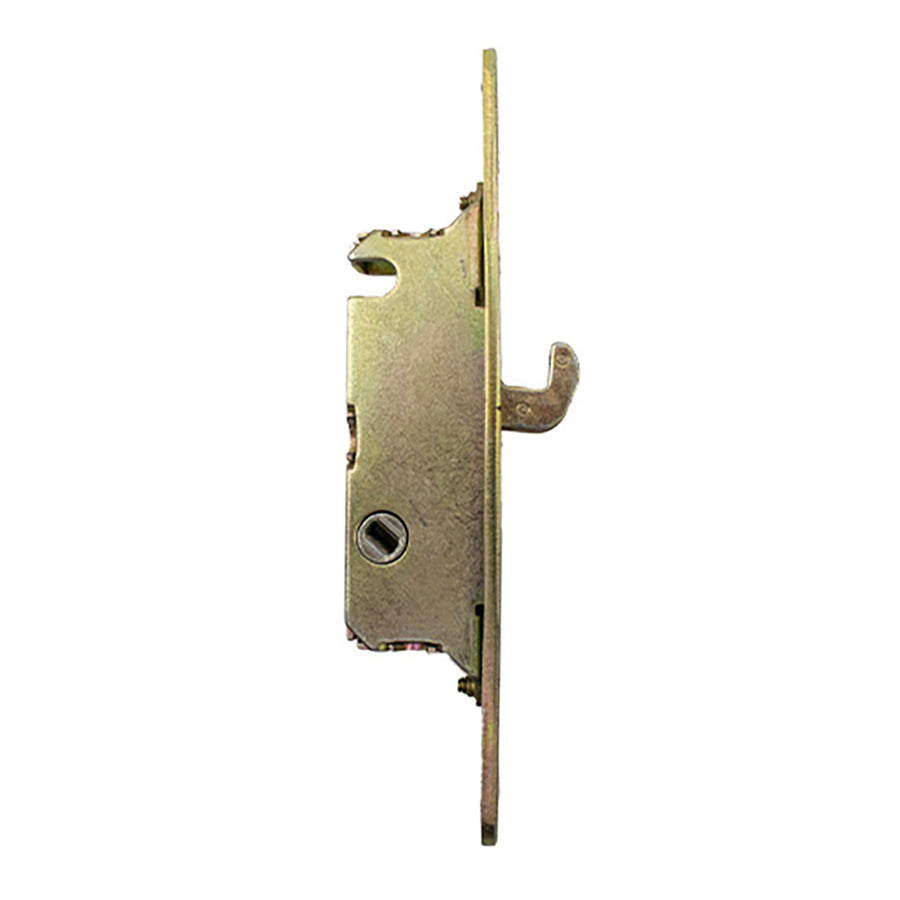

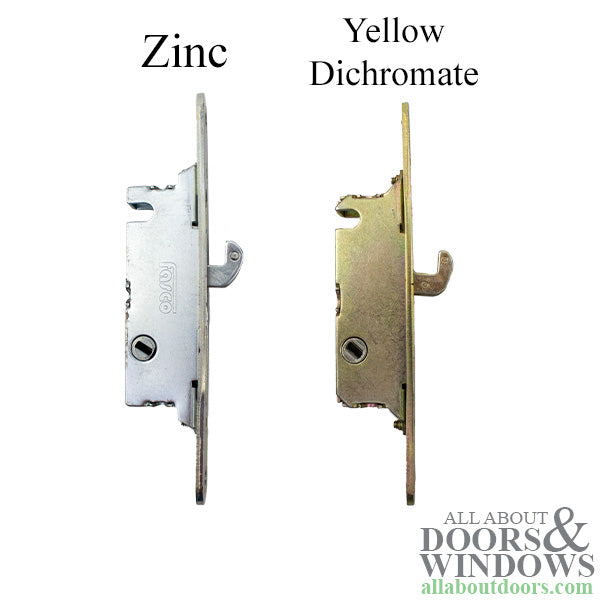

Mortise Lock With Face Plate, 45° Slot, 5-3/8" Screw Holes, Wood / Vinyl Doors
Use the arrows or swipe left to view all images for this product
Sliding door mortise latch with 45 degree slot and faceplate
Glass Sliding Patio Door
Round Face
Adjustable Hook

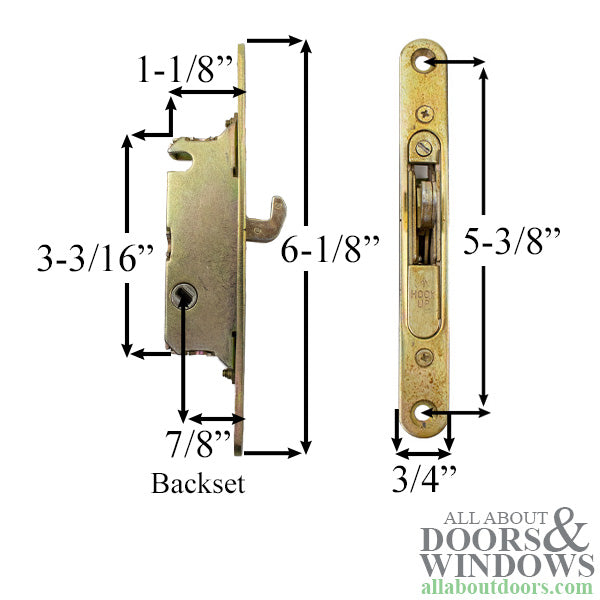

Backset: 7/8"
Screw Hole Spacing - 5-3/8"
Keyway in 45A degrees
Material Options:
Zinc
Yellow Dichromate
Note: Can be made with 15144 Faceplate & 15142 or 15143 Lock
Mortise Lock only:
15142 - Wood Doors, 45 Slot when locked
15143 - Metal doors, Vertical slot when locked
Sliding door mortise latch - 90 degree
Glass Sliding Patio Door
Round Face
Adjustable Hook
Backset: 7/8"
Screw Hole Spacing - 5-3/8"
Keyway in 45°
Material Options:
Zinc
Yellow Dichromate
Note: Discontinued - Most doors can use the standard latches
15142 - Wood Doors, 45 Slot when locked
15143 - Metal doors, Vertical slot when locked
