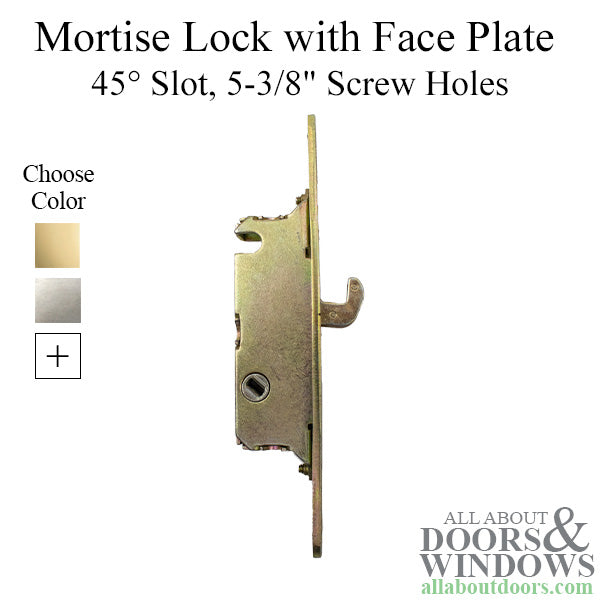

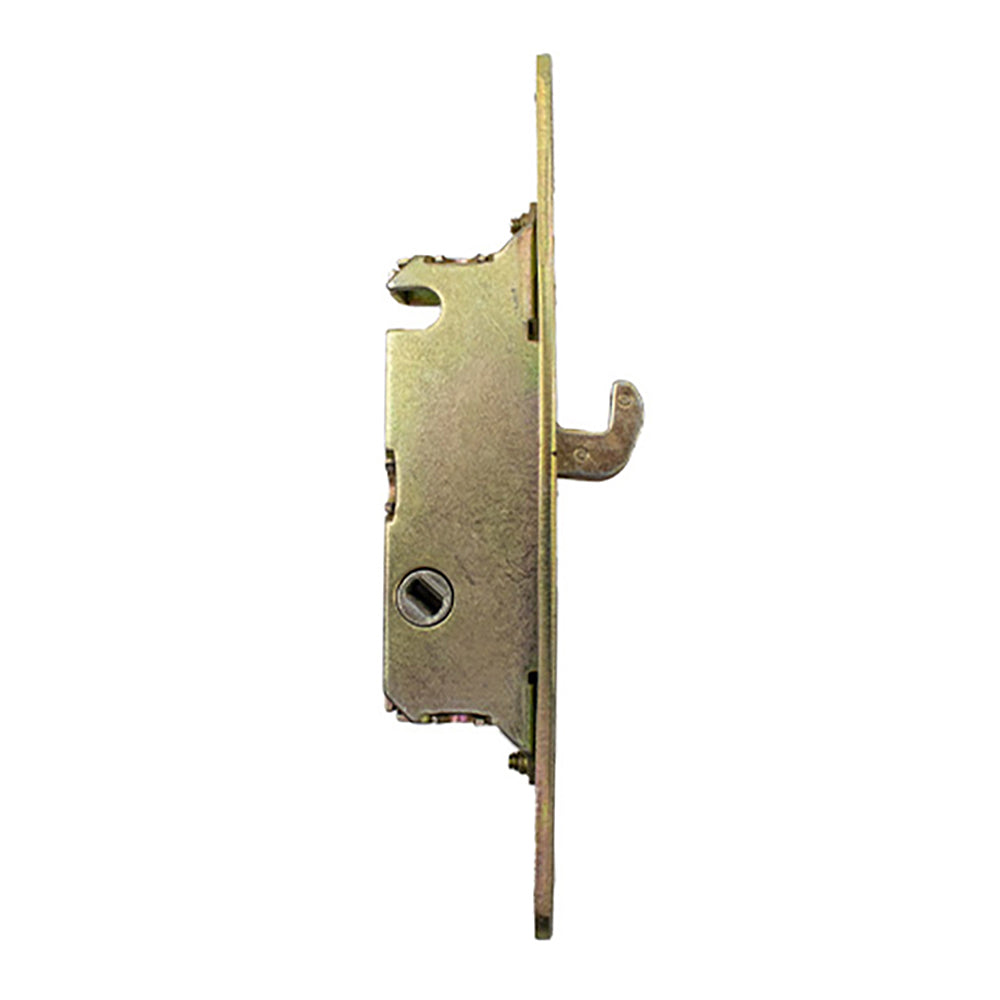

Sliding door mortise latch with 45 degree slot and faceplate
Glass Sliding Patio Door
Round Face
Adjustable Hook

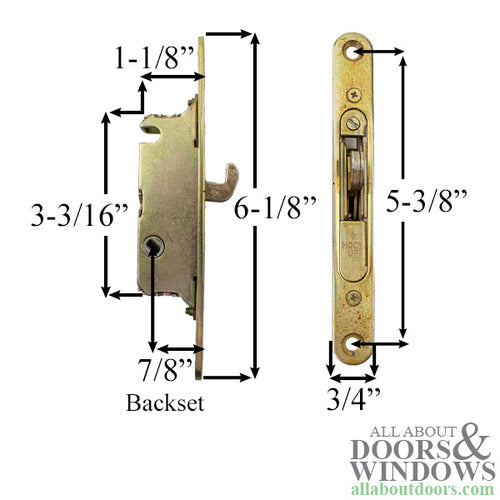

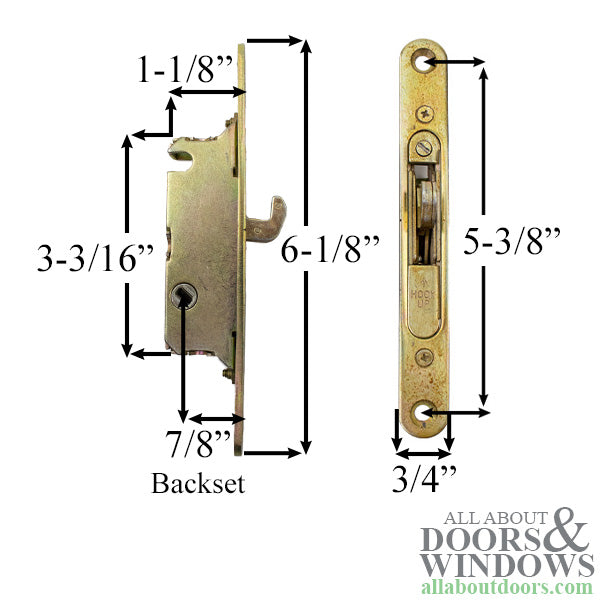

Backset: 7/8"
Screw Hole Spacing - 5-3/8"
Keyway in 45A degrees

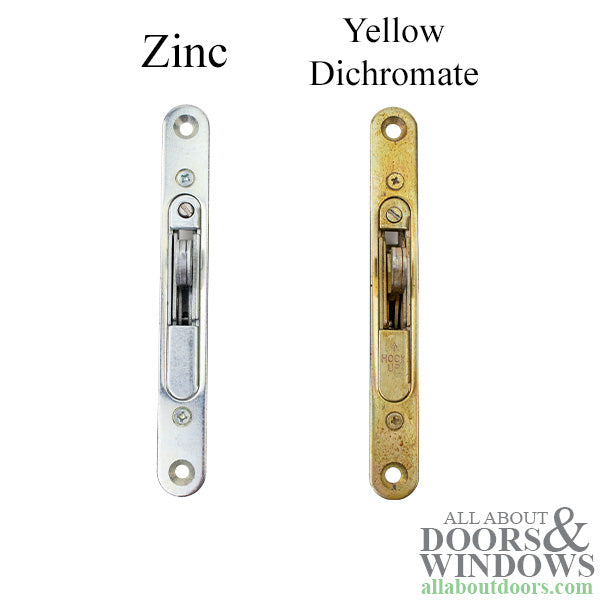

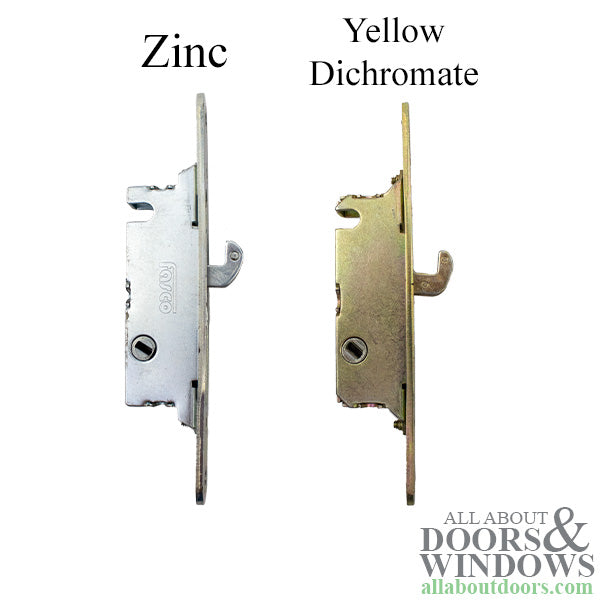

Material Options:
Zinc
Yellow Dichromate
Note: Can be made with 15144 Faceplate & 15142 or 15143 Lock
Mortise Lock only:
15142 - Wood Doors, 45 Slot when locked
15143 - Metal doors, Vertical slot when locked
