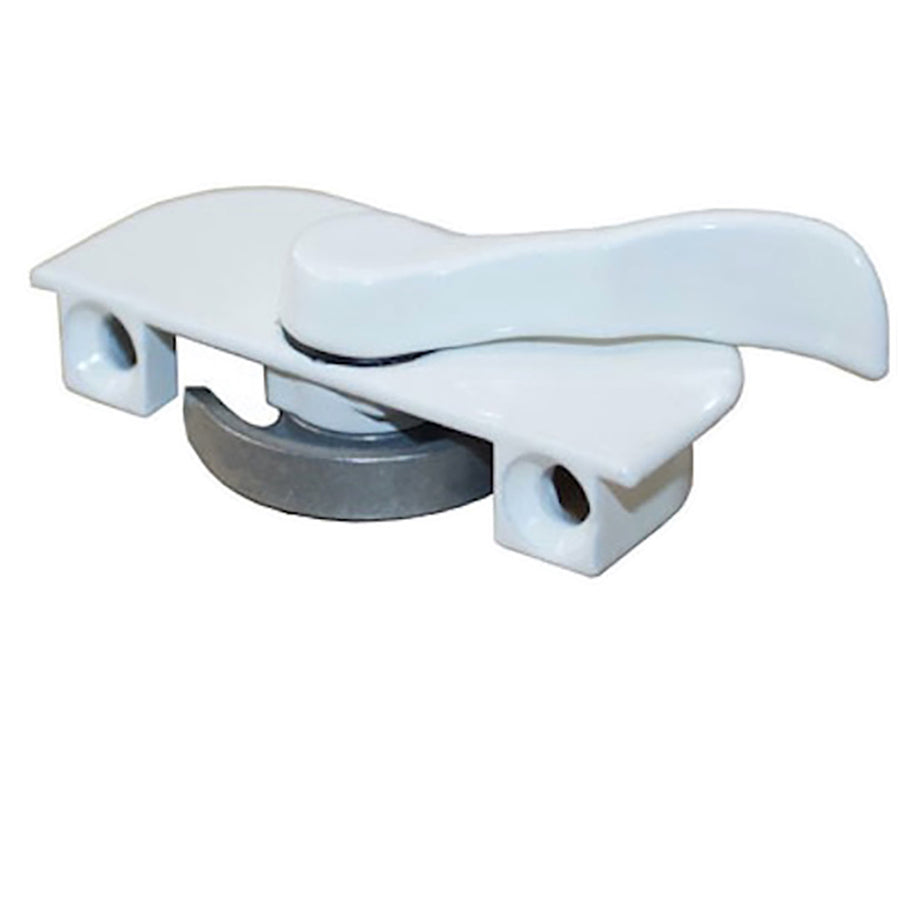

Windsor Sash Lock, Pinnacle Series Double Hung window

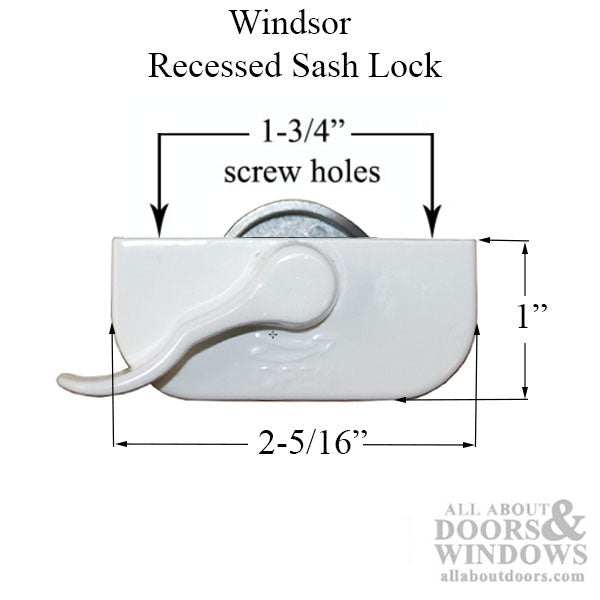

Recessed double hung sash lock with curved thumb latch.

Used by Windsor on their Pinnacle Series Clad Double Hung Window

Screw Hole Spacing: 1-3/4 inch

Installation Screw Size: 1-3/16 inch, Flat Head Phillips

Standard Colors: White, Bronze, Champagne

Special Order Finishes: Oil Rubbed Bronze, Faux Bronze, Black, Brass, Satin Nickel

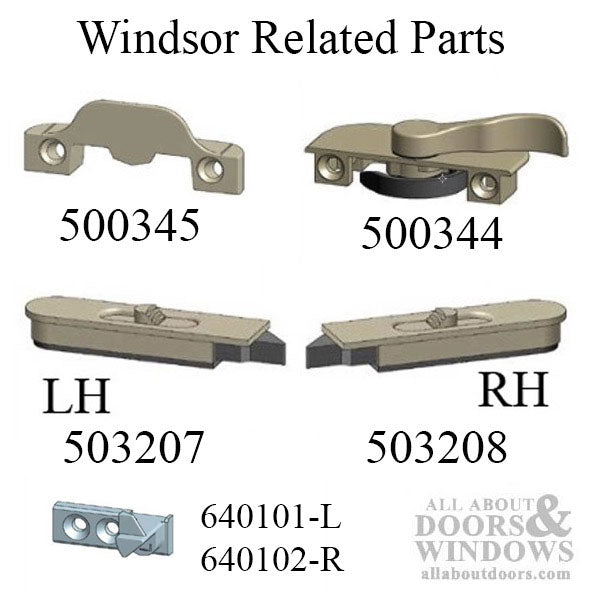

Related Parts:

500344 - Sash Lock

500345 - Keeper

503087 - Tilt Latch, Left

503208 - Tilt Latch, Right

640101 - Tilt Pin, Bottom Left

640102 - Tilt Pin, Bottom Right

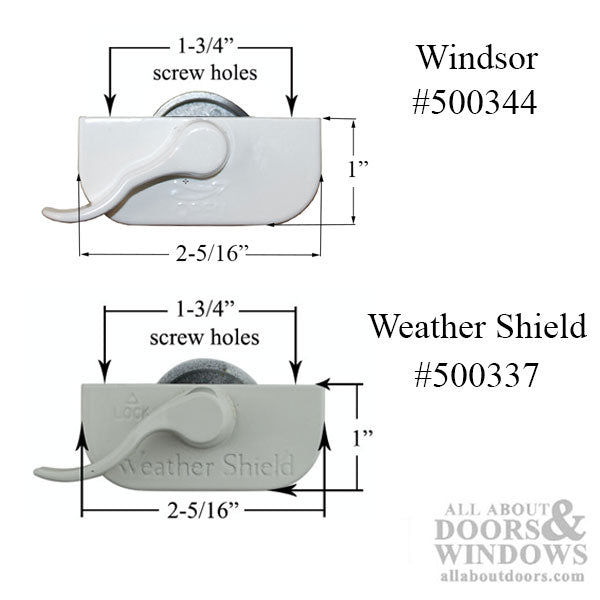

NOTE: Weather Shield and Windsor use the same size sash lock and at first glance they look the same. However, the thumb turn has a different shape and lower profile on the Windsor
