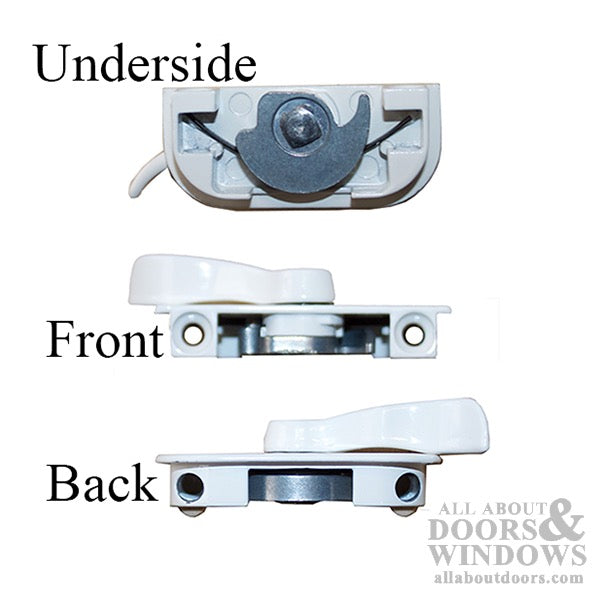

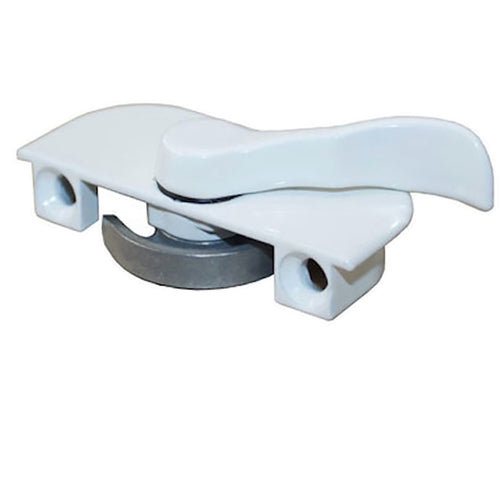

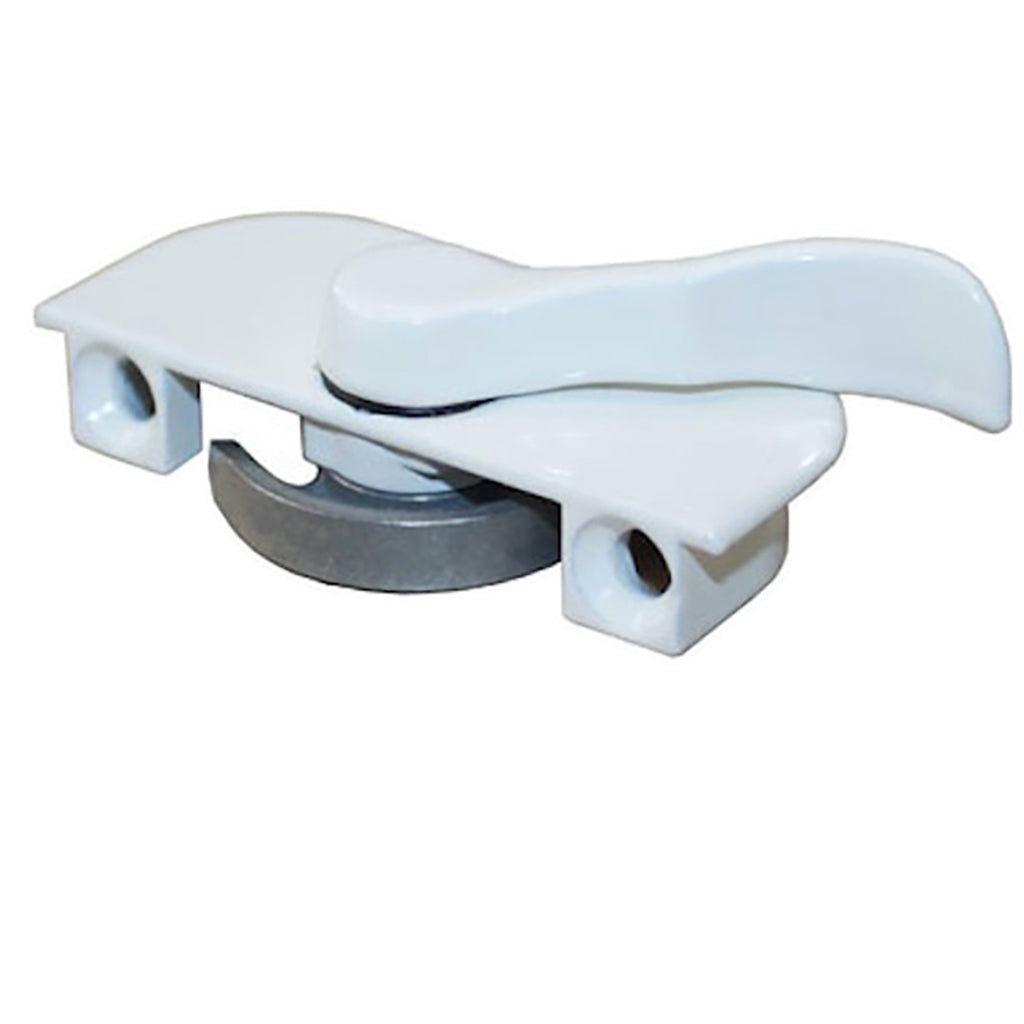

Recessed double hung sash lock with curved thumb latch.
Used by Windsor on their Pinnacle Series Clad Double Hung Window

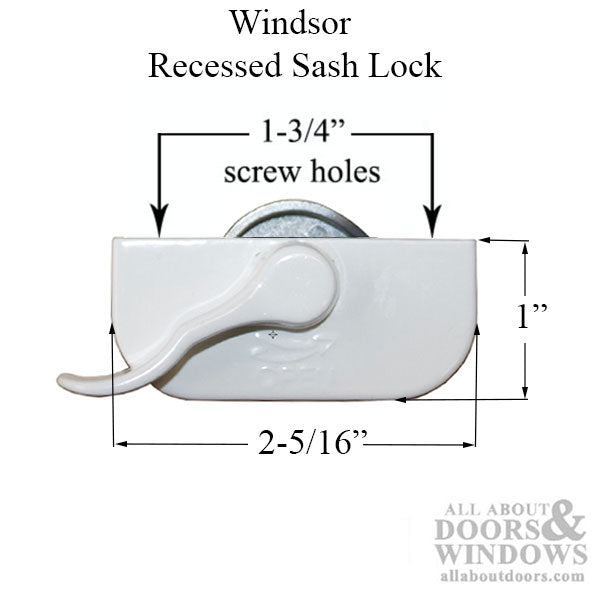

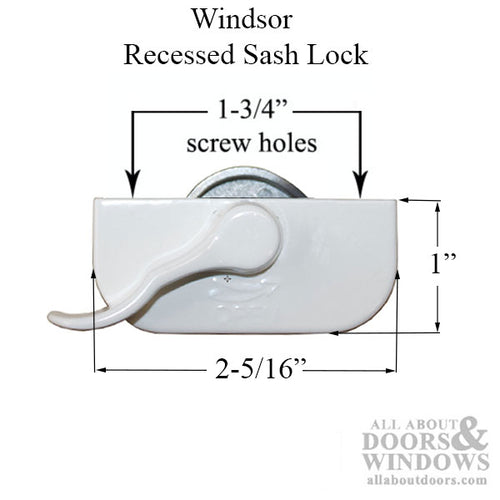

Screw Hole Spacing: 1-3/4 inch
Installation Screw Size: 1-3/16 inch, Flat Head Phillips

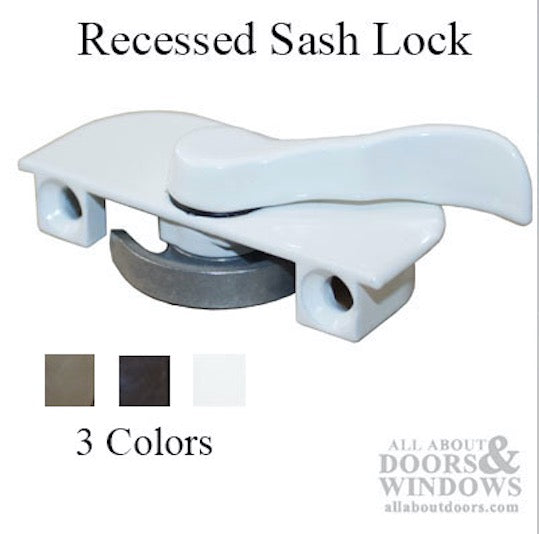

Standard Colors: White, Bronze, Champagne
Special Order Finishes: Oil Rubbed Bronze, Faux Bronze, Black, Brass, Satin Nickel

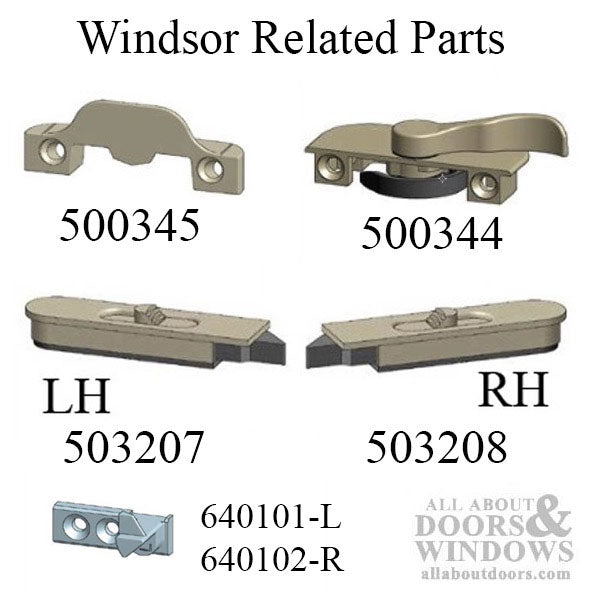

Related Parts:
500344 - Sash Lock
500345 - Keeper
503087 - Tilt Latch, Left
503208 - Tilt Latch, Right
640101 - Tilt Pin, Bottom Left
640102 - Tilt Pin, Bottom Right

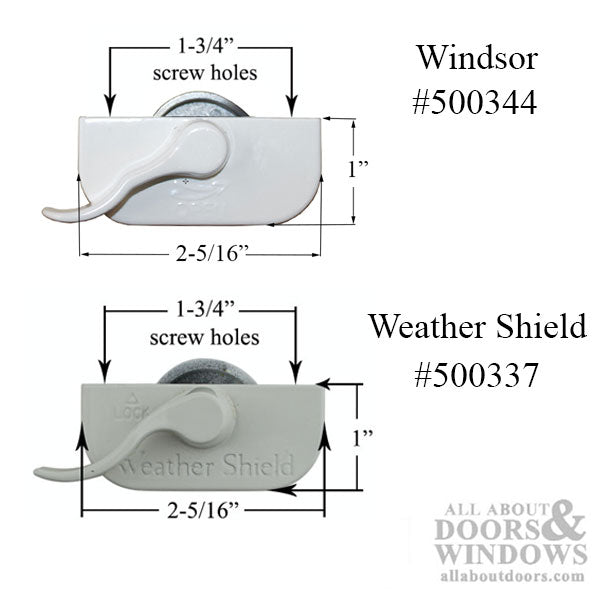

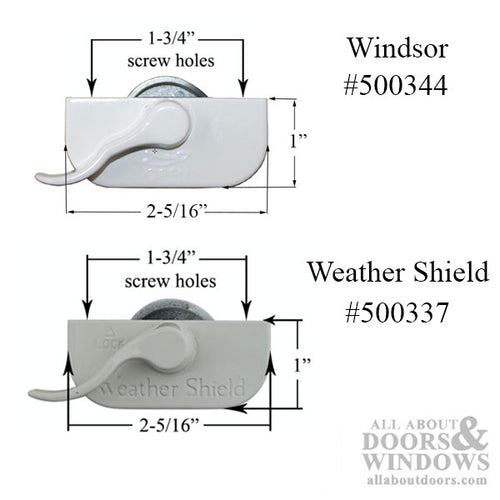

NOTE: Weather Shield and Windsor use the same size sash lock and at first glance they look the same. However, the thumb turn has a different shape and lower profile on the Windsor
