Sliding Door Dual Point Mortise Lock 2 Hooks Square Drive
Use the arrows or swipe left to view all images for this product
Sliding Door Dual Point Mortise Lock 2 Hooks Square Drive
Part Number: $112.50Deep Backset, Square Drive Mortise Lock with 2 Hooks, Alignment Lug and Anti-Slam Pin
Used on the PGT 8000 / 8100 series sliding patio doors, Windoor and others.

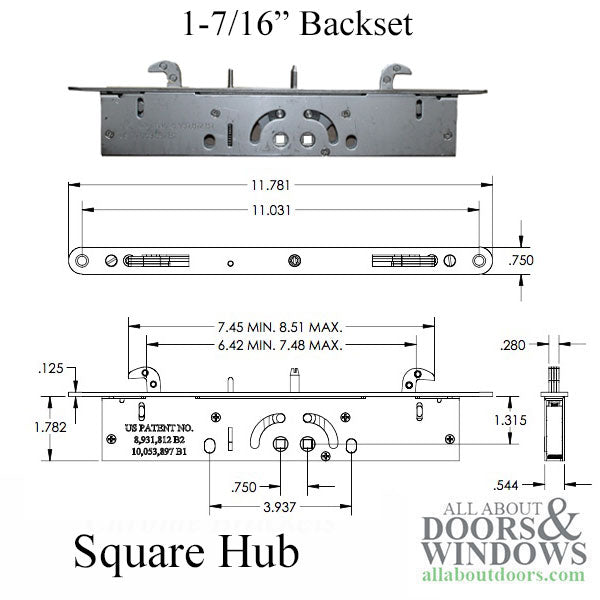

Specifications:

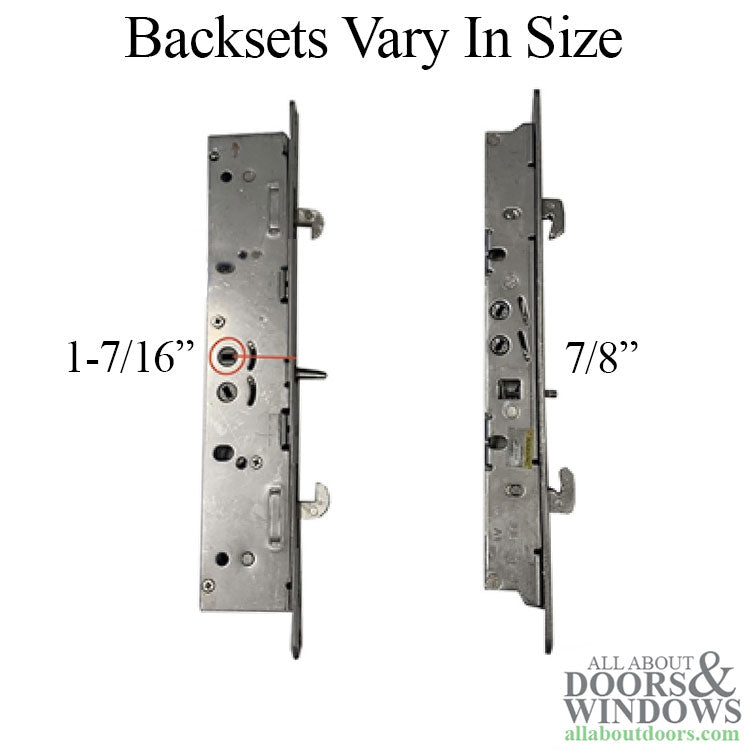

- Backset: 1-7/16 Inch
- Faceplate Width: 3/4 Inch
- Faceplate Length: 11-3/4 Inch
- Lock Body Depth: 1-7/8 Inch
- Mortise lock, Square Drive
- Markings: U.S. Patent No. 8,931,812 B1 US 10,053,897 B1
Note:

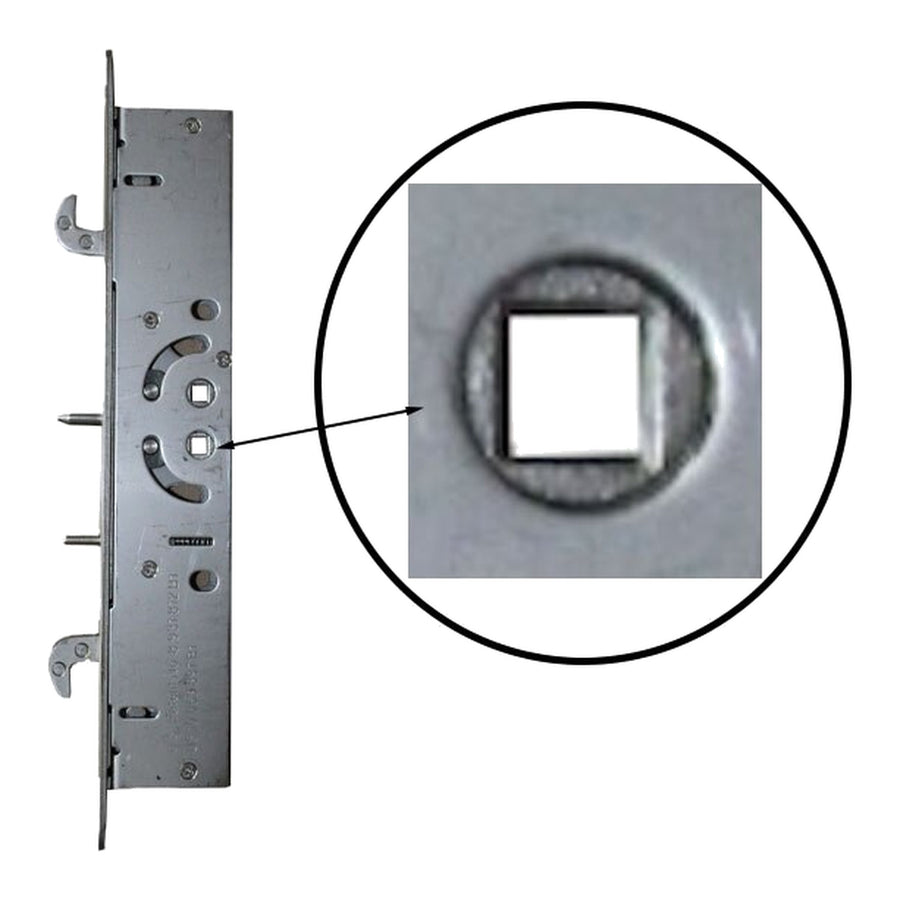

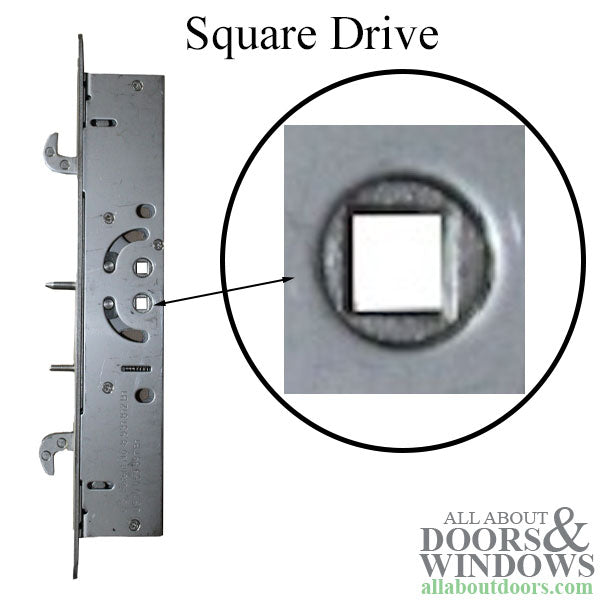

This lock comes in a Square Drive hub
Deep Backset Mortise lock with 2 hooks, Alignment lug and Anti-Slam pin
Used on the PGT 8000 / 8100 series sliding patio doors, Windoor and others.
Backset: 1-7/16
Faceplate Width: 3/4 inch (20mm
Faceplate Length: 11-3/4 inch
Lock Body Depth: 1-7/8 inch
Mortise lock, Square Drive

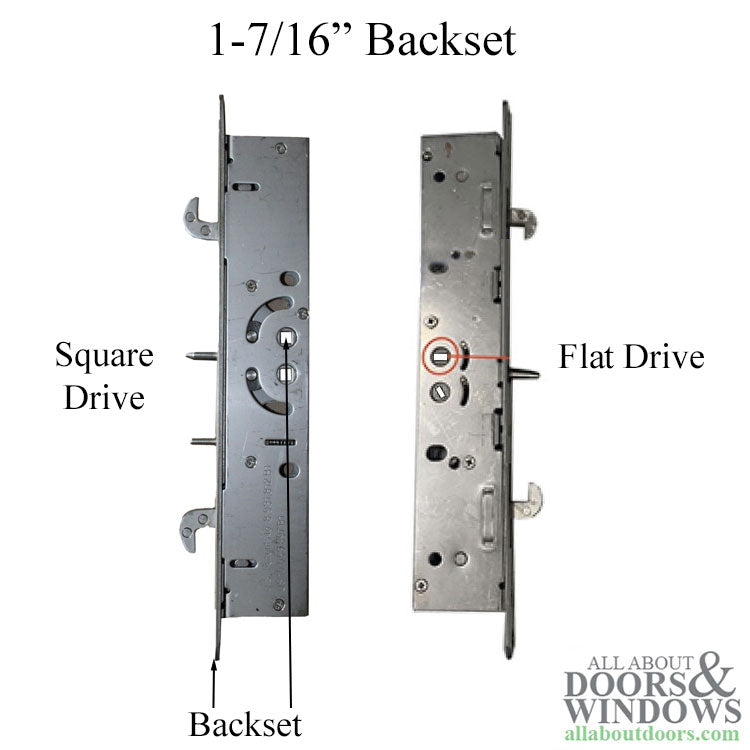

Note: This lock came in a Square Drive hub and Slotted / Flat drive hub
Markings: U.S. Patent No. 8,931,812 B1 US 10,053,897 B1
