Deep Backset Mortise lock with 2 hooks, Alignment lug and Anti-Slam pin
Used on the PGT 8000 / 8100 series sliding patio doors, Windoor and others.

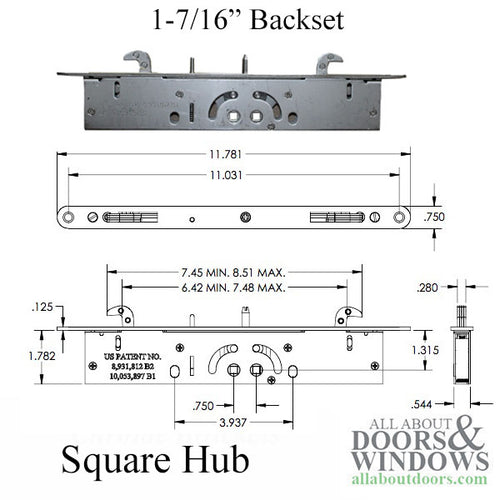

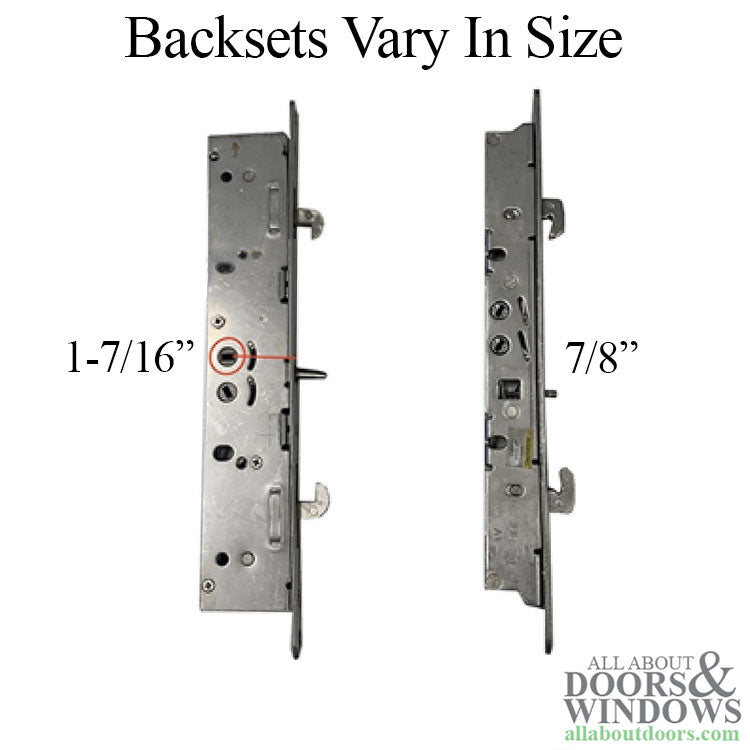

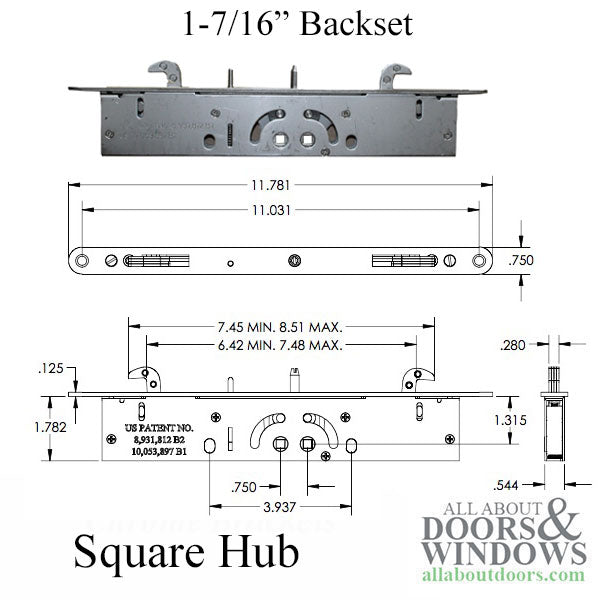

Backset: 1-7/16
Faceplate Width: 3/4 inch (20mm
Faceplate Length: 11-3/4 inch
Lock Body Depth: 1-7/8 inch

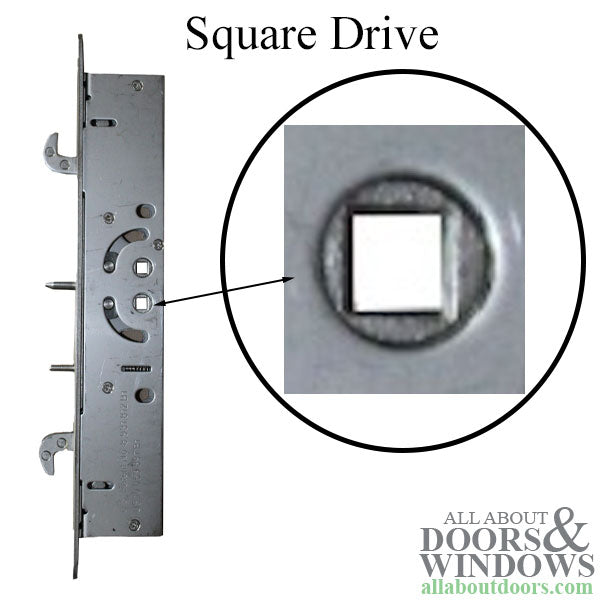

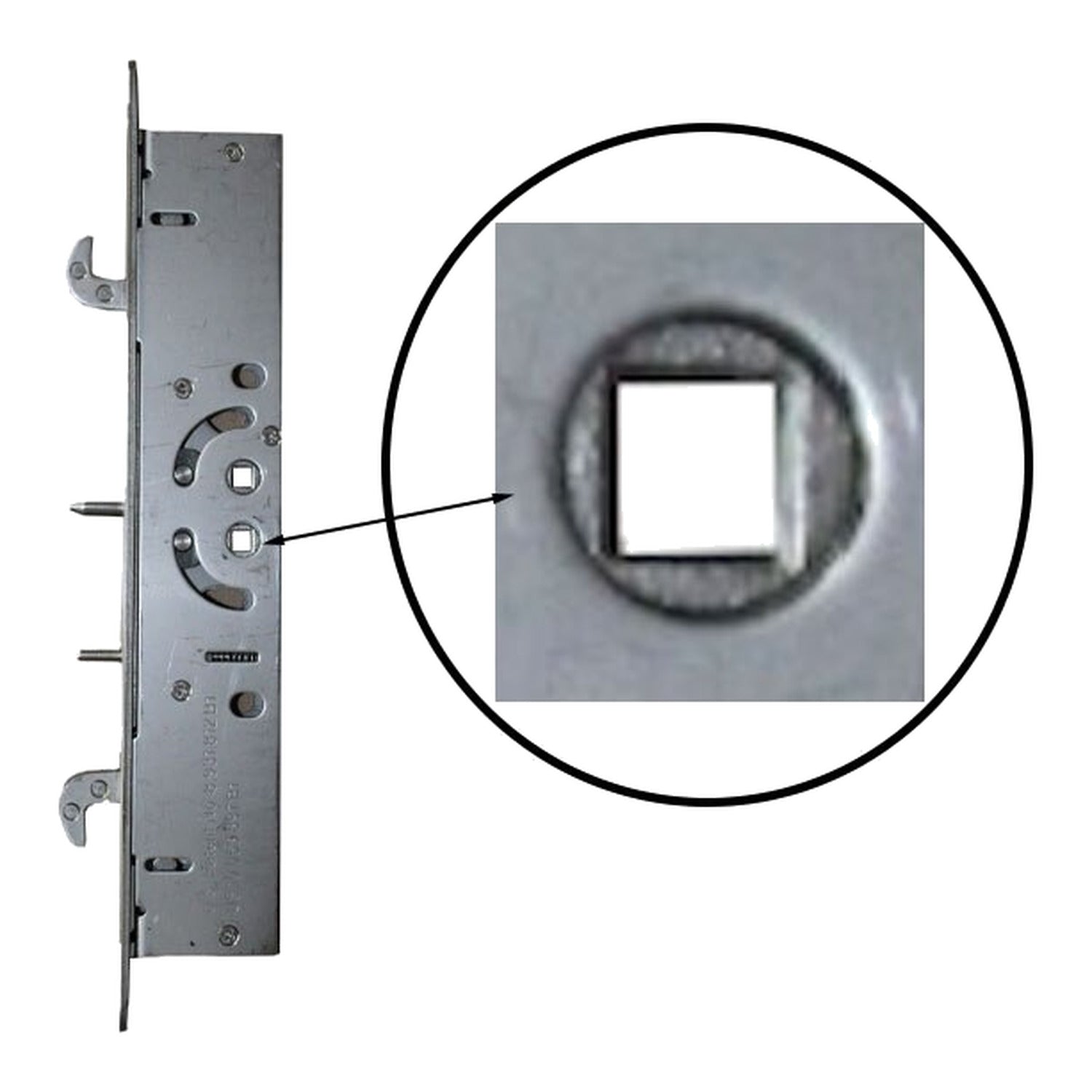

Mortise lock, Square Drive

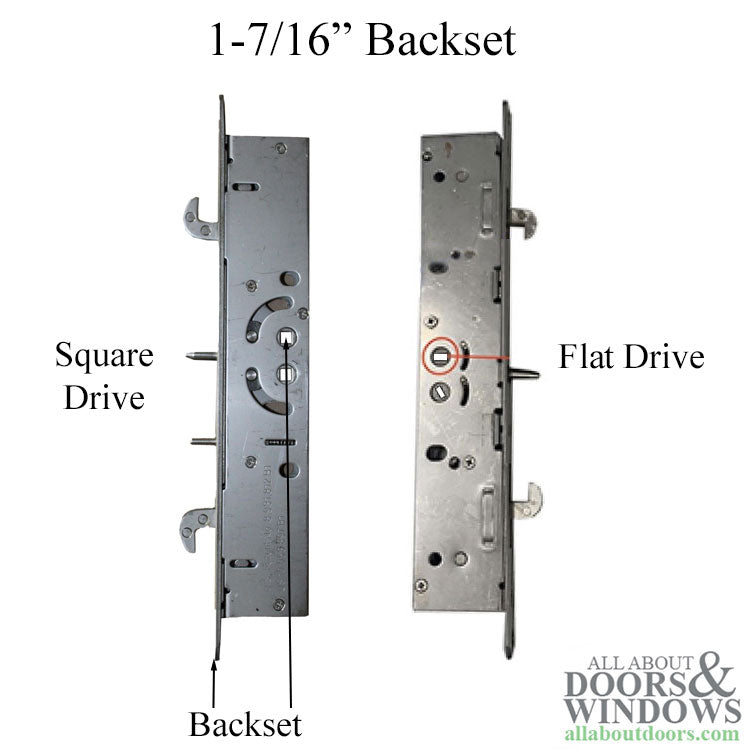

Note: This lock came in a Square Drive hub and Slotted / Flat drive hub
Markings: U.S. Patent No. 8,931,812 B1 US 10,053,897 B1
