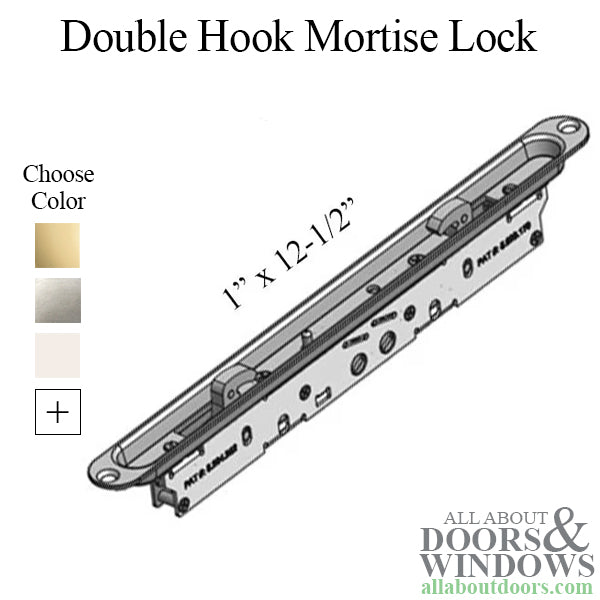

Double Hook Mortise Lock Sliding Patio Doors 3/8" Recessed Faceplate White
Use the arrows or swipe left to view all images for this product
Double Hook Mortise Lock Sliding Patio Doors 3/8" Recessed Faceplate White
Part Number: $49.95 to $50.74Gemini 2-point Double Hook Sliding door lock with 3/8 inch recessed face plate.
New model Gemini Internal Latch has Anti Slam Pin.
Dual point Double Hook Sliding door mortise lock for wood or vinyl doors.
Lock Body: Stainless Steel
Faceplate:PaintedGray or White

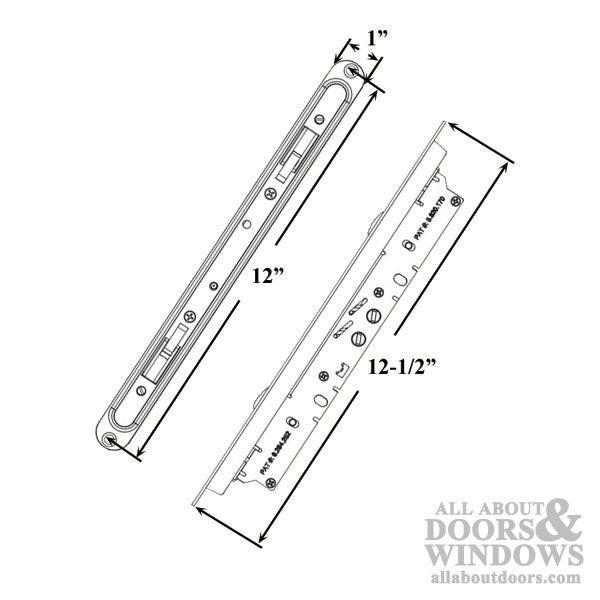

Faceplate Length: 12-1/2 inches(317.5mm)
Faceplate width: 1 inch (25.4mm)
Screw Holes: 12 inches( 304.8mm)
Depth: 1-1/2 inches (38.86mm)

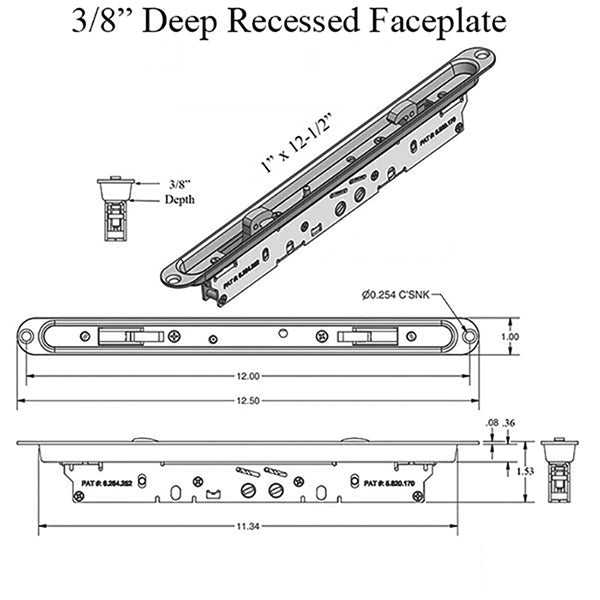

Faceplate Depth:7/16(11.176mm)
Recessed area:3/8 inch (9.144mm)
Trimplate: #2507
Patent No. 6.264.252 Sash Control, Pat. # 5.820.170
Priced and sold each, No Screws
Please Review additional images:
There are several types of locks that look the same, please compare measurements.
Compatible Keepers:
15163-ZD- SLIDING DOOR KEEPER, 1/2-N RAISED DUAL POINT LOCK - ZINC DICHROMATE
15163-SS- SLIDING DOOR KEEPER, 1/2 IN. RAISED DUAL POINT LOCK - STAINLESS STEEL
15163-YDI - NARROW 5/8" SLIDING DOOR KEEPER, 1/2-N RAISED DUAL POINT LOCK - YDI
15164- NARROW 5/8" SLIDING DOOR KEEPER, 3/4" RAISED STRIKE, DUAL POINT LOCK
15170- SLIDING DOOR KEEPER, 1 INCH RAISED DUAL POINT STRIKE- STAINLESS STEEL
Gemini 2-point Double Hook Sliding door lock with 3/8 inch recessed face plate.New model Gemini Internal Latch has Anti Slam Pin.Dual point Double Hook Sliding door mortise lock for wood or vinyl doors. Lock Body: Stainless SteelFaceplate:PaintedGray or WhiteFaceplate Length: 12-½ inches(317.5mm)Faceplate width: 1 inch (25.4mm) Screw Holes: 12 inches( 304.8mm)Depth: 1-1/2 inches (38.86mm)Faceplate Depth:7/16(11.176mm)Recessed area:3/8 inch (9.144mm)Trimplate: #2507Patent No. 6.264.252 Sash Control, Pat. # 5.820.170Priced and sold each, No Screws
Please Review additional images:There are several types of locks that look the same, please compare measurements. Compatible Keepers:
15163-ZD - SLIDING DOOR KEEPER, 1/2-N RAISED DUAL POINT LOCK - ZINC DICHROMATE
15163-SS - SLIDING DOOR KEEPER, 1/2 IN. RAISED DUAL POINT LOCK - STAINLESS STEEL
15163-YDI - NARROW 5/8" SLIDING DOOR KEEPER, 1/2-N RAISED DUAL POINT LOCK - YDI
15164 - NARROW 5/8" SLIDING DOOR KEEPER, 3/4" RAISED STRIKE, DUAL POINT LOCK
15170 - SLIDING DOOR KEEPER, 1 INCH RAISED DUAL POINT STRIKE- STAINLESS STEEL
