2-point Double Hook Sliding door lock, 3/8 Recessed Face Plate

Part Number: 15188-GRY Price: $42.84
COLOR: - Grey

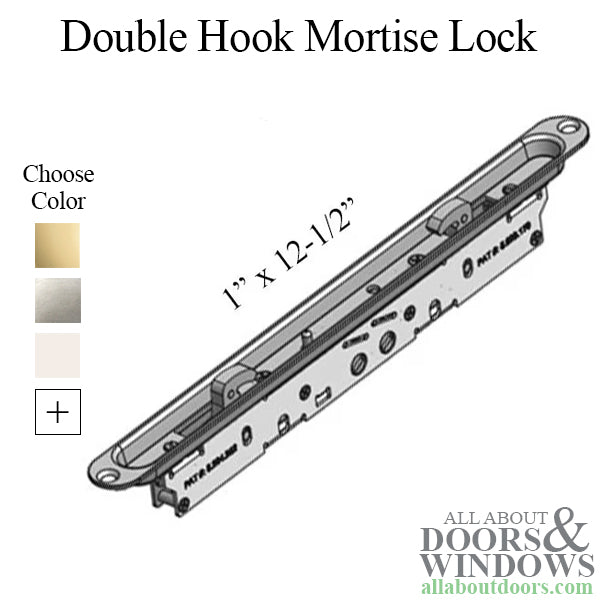

Gemini 2-point Double Hook Sliding door lock with 3/8 inch recessed face plate.

New model Gemini Internal Latch has Anti Slam Pin.

Dual point Double Hook Sliding door mortise lock for wood or vinyl doors.

Lock Body: Stainless Steel

Faceplate:PaintedGray or White

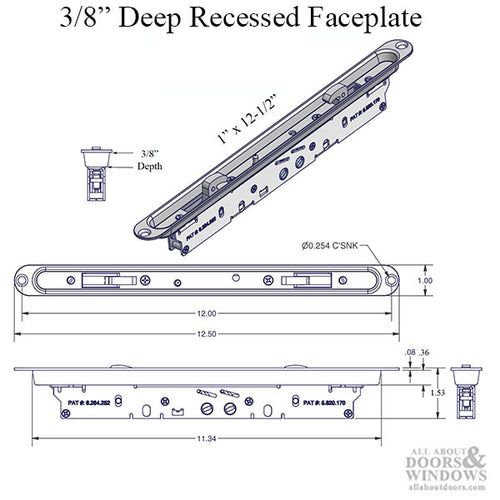

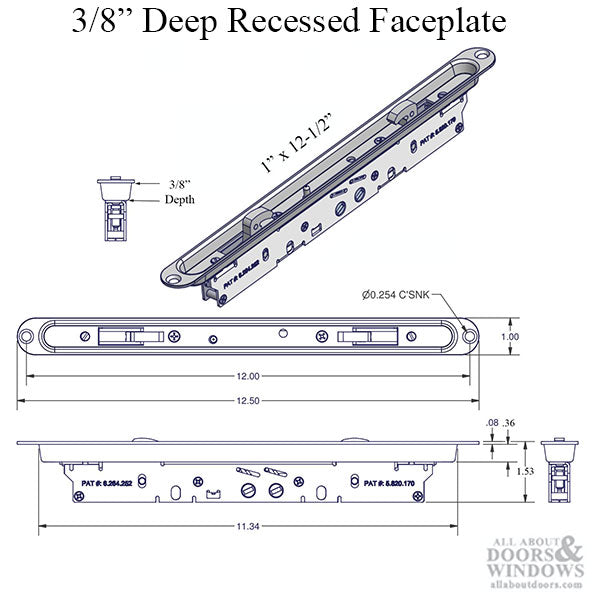

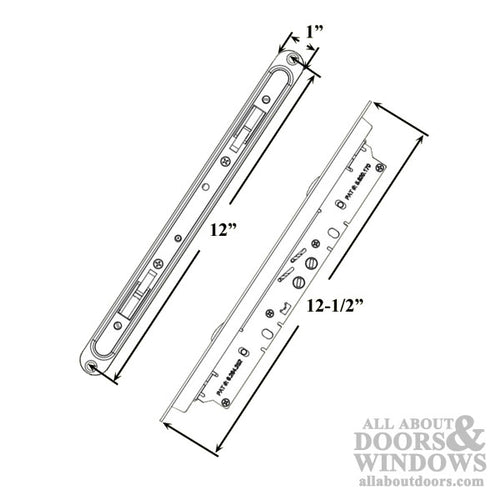

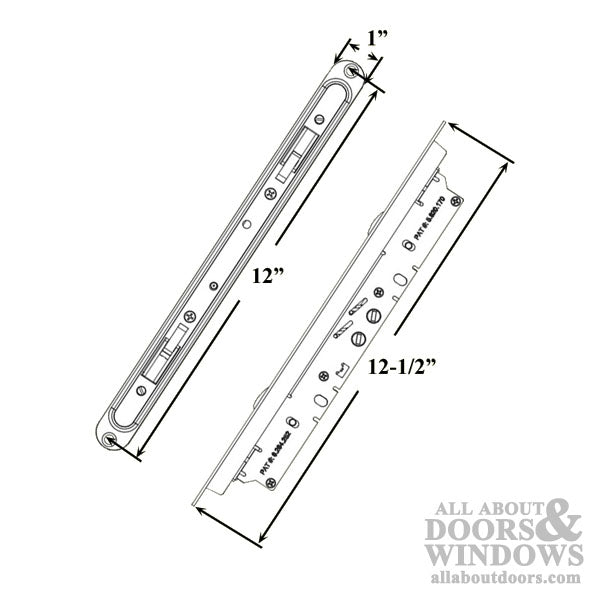

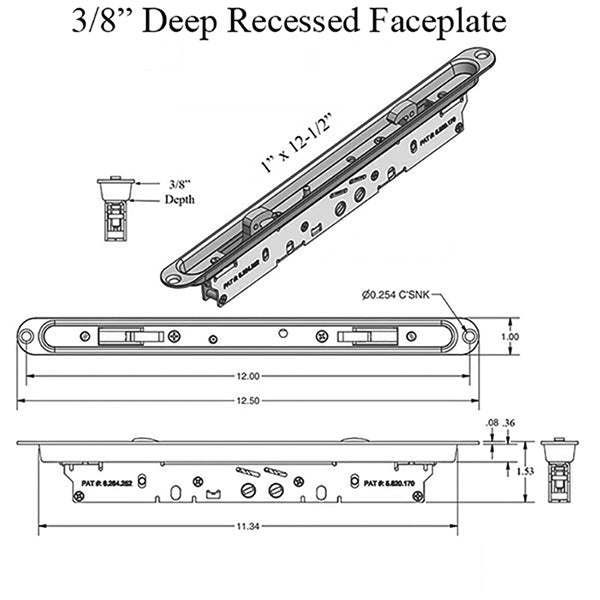

Faceplate Length: 12-½ inches(317.5mm)

Faceplate width: 1 inch (25.4mm)

Screw Holes: 12 inches( 304.8mm)

Depth: 1-1/2 inches (38.86mm)

Faceplate Depth:7/16(11.176mm)

Recessed area:3/8 inch (9.144mm)

Trimplate: #2507

Patent No. 6.264.252 Sash Control, Pat. # 5.820.170

Priced and sold each, No Screws


Please Review additional images:

There are several types of locks that look the same, please compare measurements.



Compatible Keepers:
15163-ZD - SLIDING DOOR KEEPER, 1/2-N RAISED DUAL POINT LOCK - ZINC DICHROMATE
15163-SS - SLIDING DOOR KEEPER, 1/2 IN. RAISED DUAL POINT LOCK - STAINLESS STEEL
15163-YDI - NARROW 5/8" SLIDING DOOR KEEPER, 1/2-N RAISED DUAL POINT LOCK - YDI
15164 - NARROW 5/8" SLIDING DOOR KEEPER, 3/4" RAISED STRIKE, DUAL POINT LOCK
15170 - SLIDING DOOR KEEPER, 1 INCH RAISED DUAL POINT STRIKE- STAINLESS STEEL
