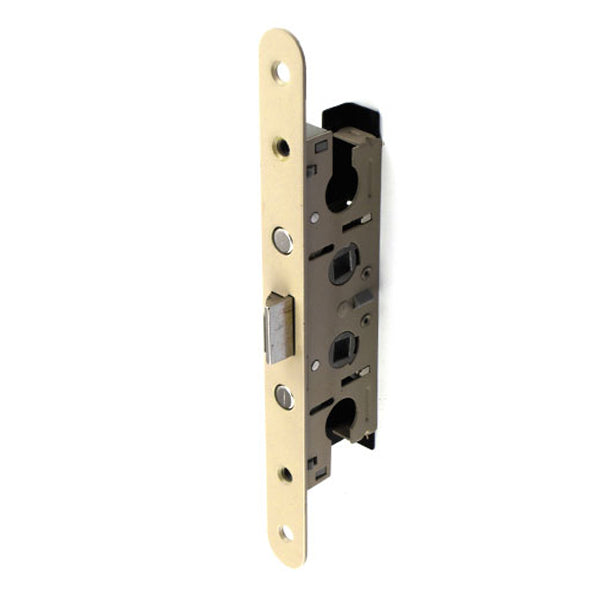

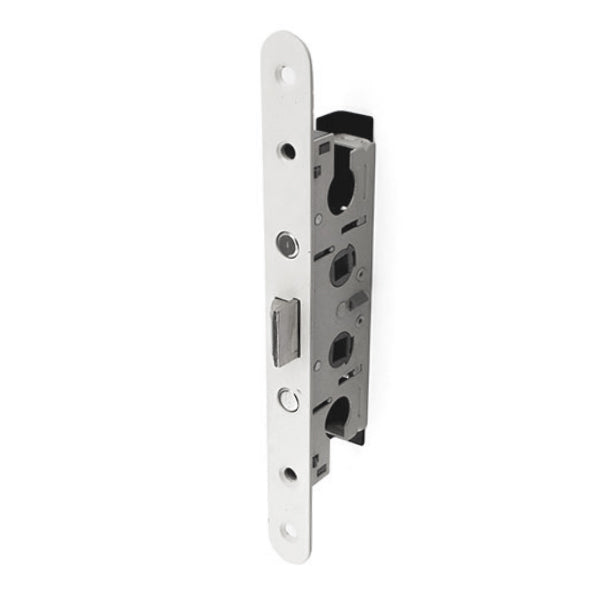

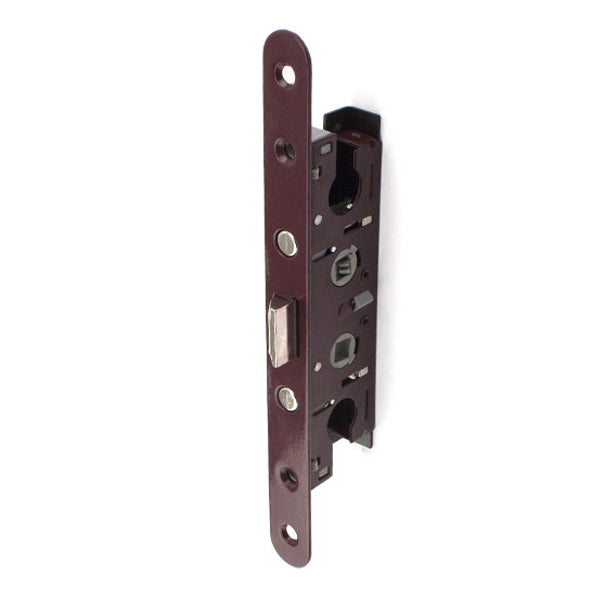

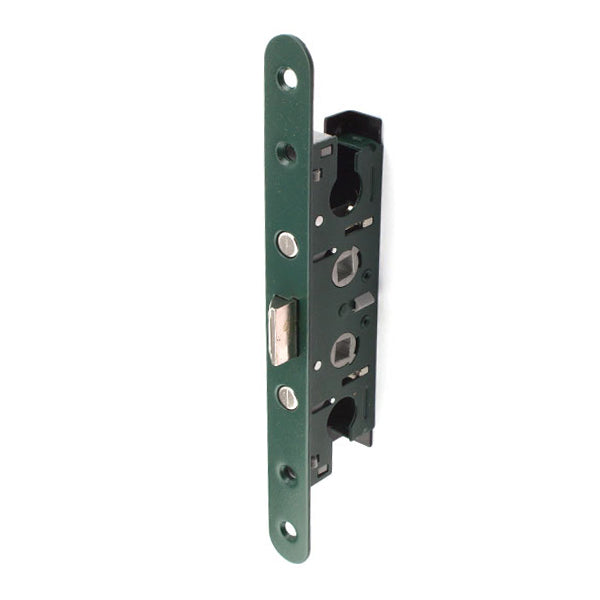

Pella 2 Point Bolt Mortise Lock Body for Storm Doors
Use the arrows or swipe left to view all images for this product
Pella 2 Point Bolt Mortise Lock Body for Storm Doors
Part Number: $15.35 to $60.37Pella 2 Point Bolt Mortise Lock Body for Storm Door

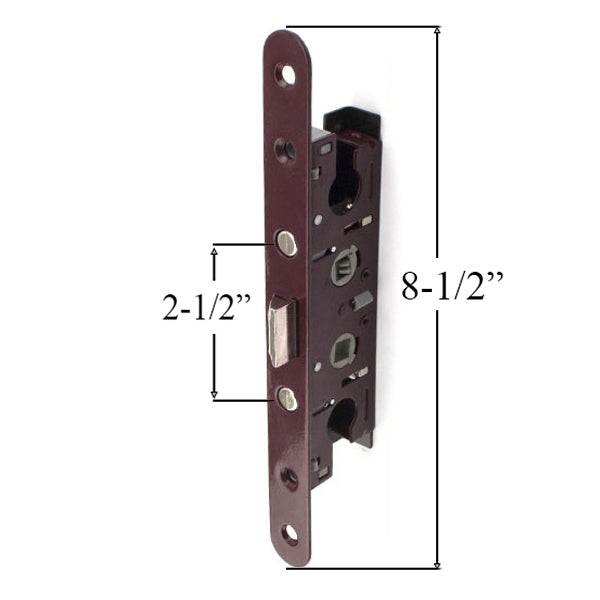

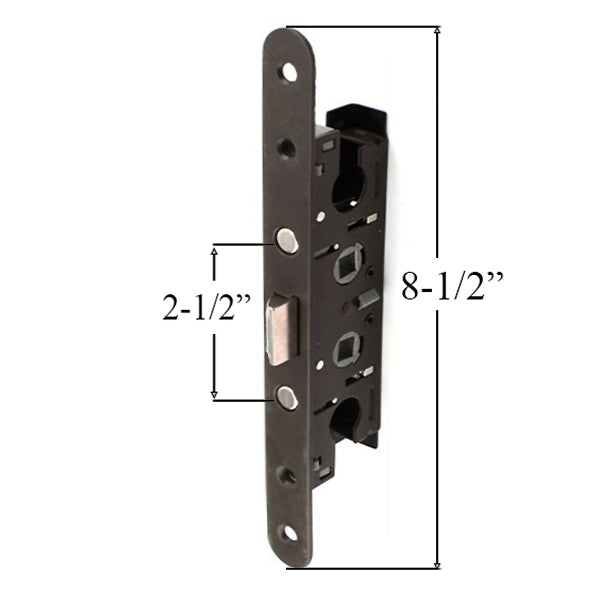

Bolts are 2-1/2 inches apart
Overall faceplate length: 8-1/2 inches
Installation screw holes: 7-5/16 ( screws not included)
PZ (center of handle to center of cylinder): 2-5/8 inches
Available Colors: Black, Green, Cranberry, Brown, Putty, Tan, Almond (Poplar White) and White.
Note: These come from the factory in bulk, Colored faceplates may have minor blemishes, which is normal.
See additional information tab for installation instructions.
Priced and sold each.
Lock Removal:
There are 4 spring loaded tabs that hold the Mortise lock in the storm door, even when faceplate screws are removed.
Use small pry bar or stiff putty knife and the spring loaded tabs will retract when removing lock body.
Put a piece of cardboard between screwdriver and door to prevent marring or chipping paint
Cylinder Removal:
The cylinder screw needs to be removed to take the keyed cylinder out of door.
The cylinder has a cam in the center that rotates to lock and unlock the door
The cylinder only comes out when the cam is in the proper position.
To Remove cylinder turn thumb turn slowly and pull, when the cam is in alignment the cylinder will come out.
Replacement cylinder must be made by Pella. Their cylinder knob/key turns 270 degrees before the cam starts to turn.PDF: Installation Instructions
