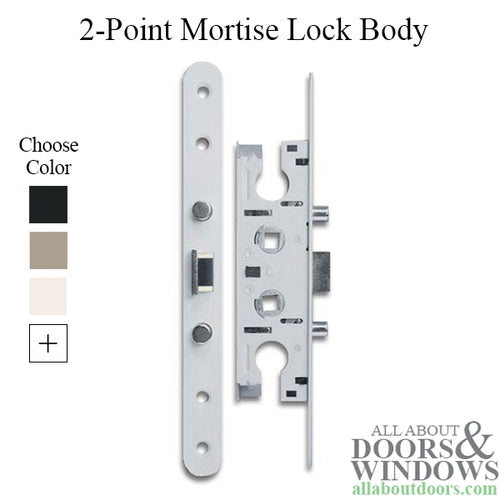

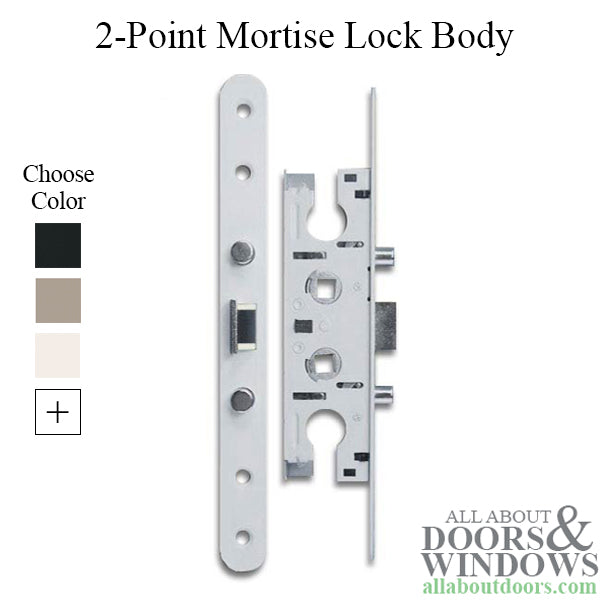

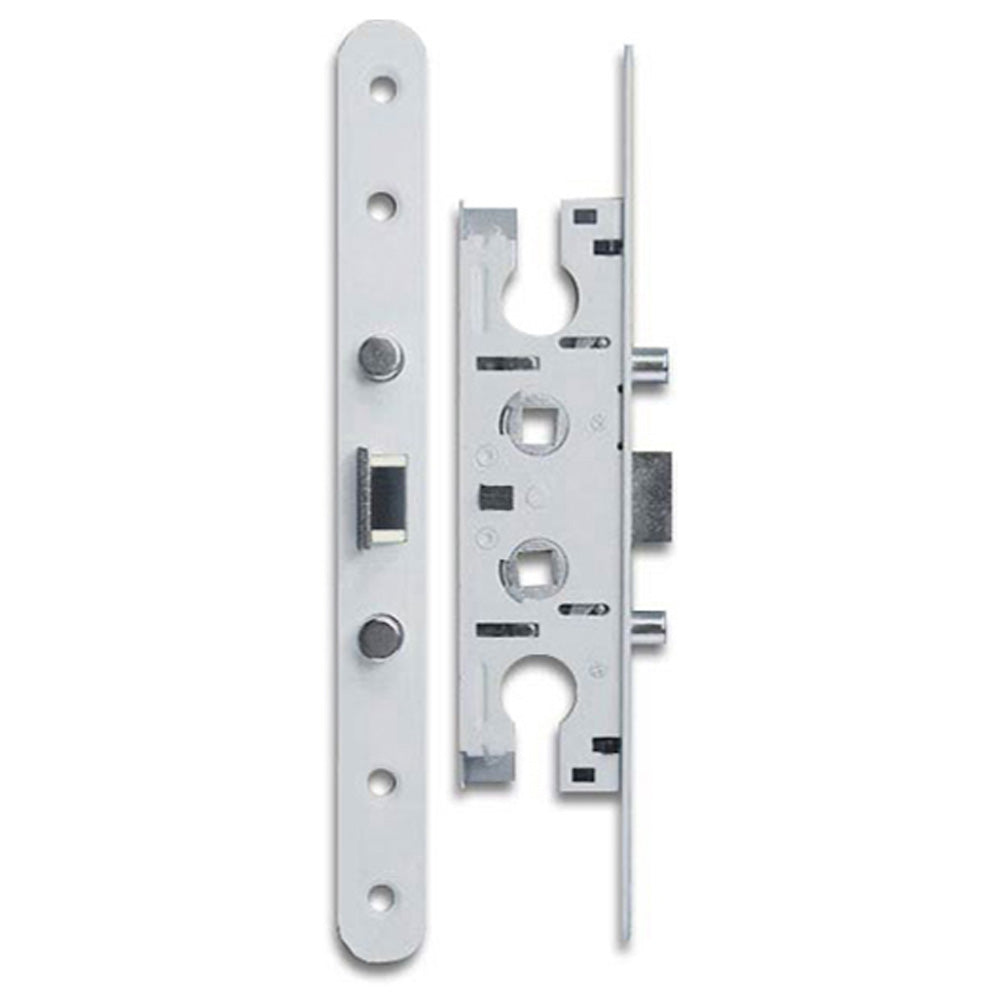

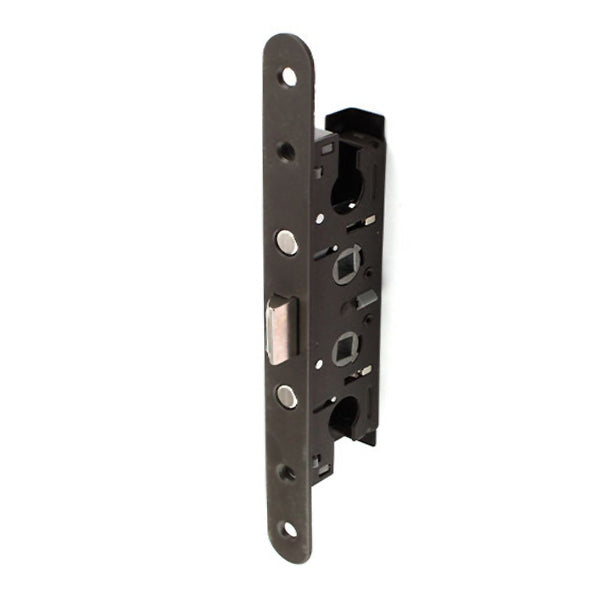

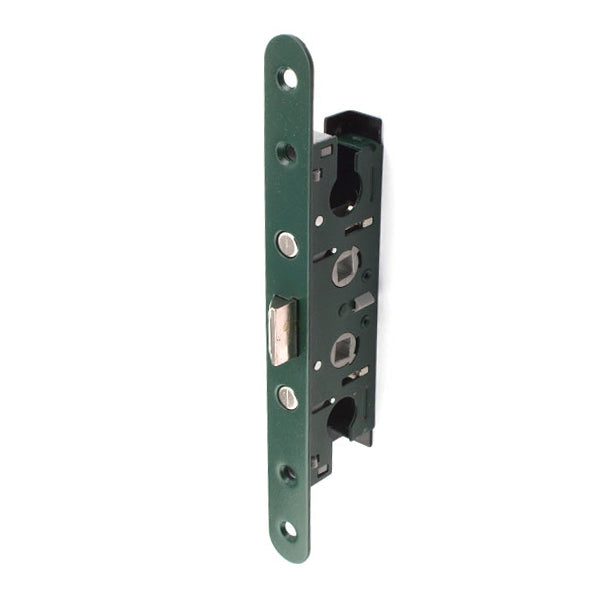

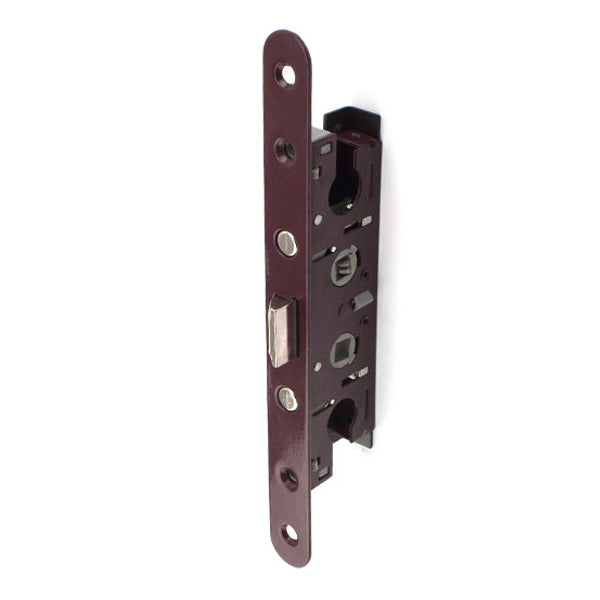

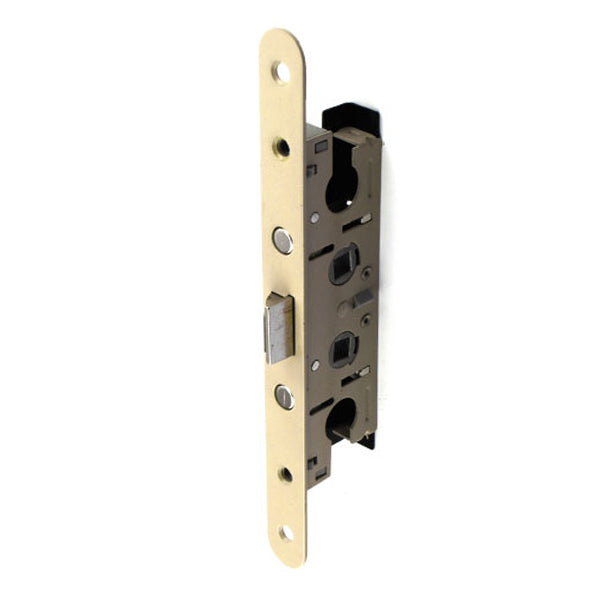

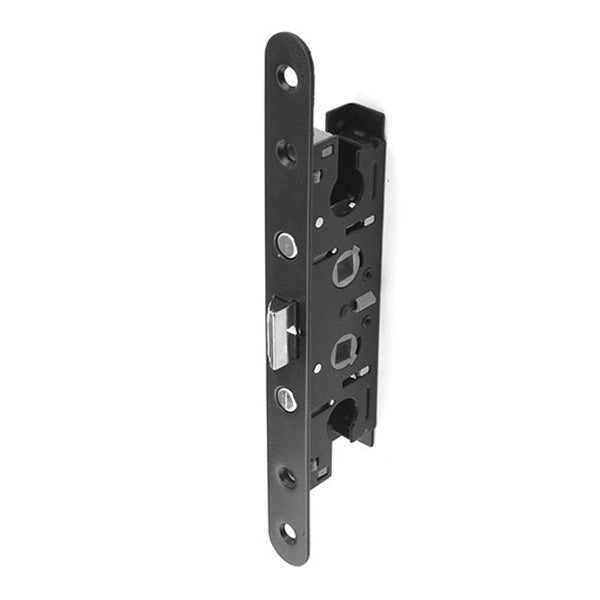

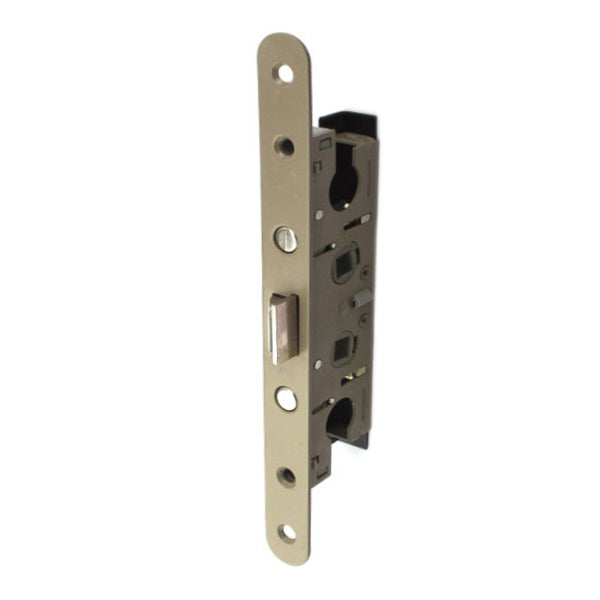

Pella 2 Point Bolt Mortise Lock Body for Storm Door

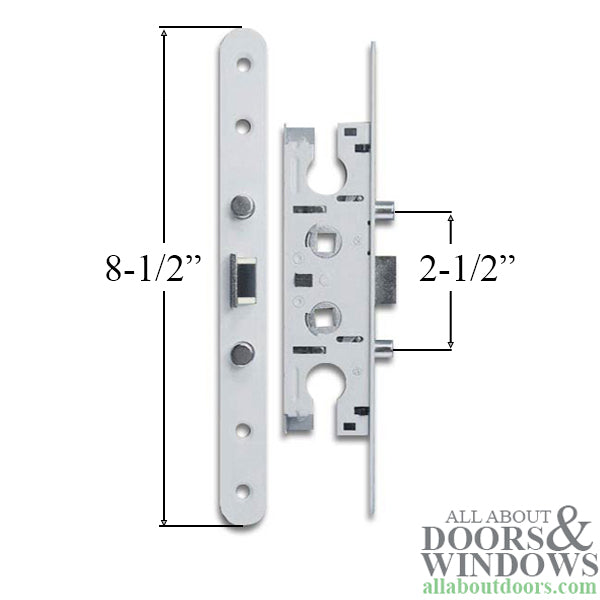

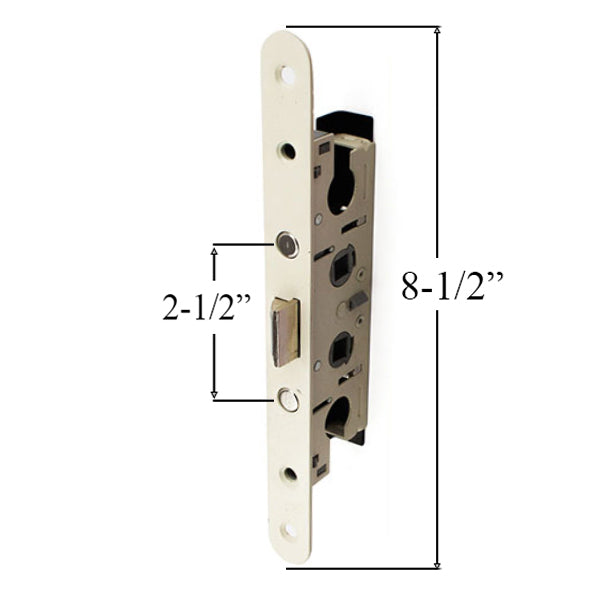

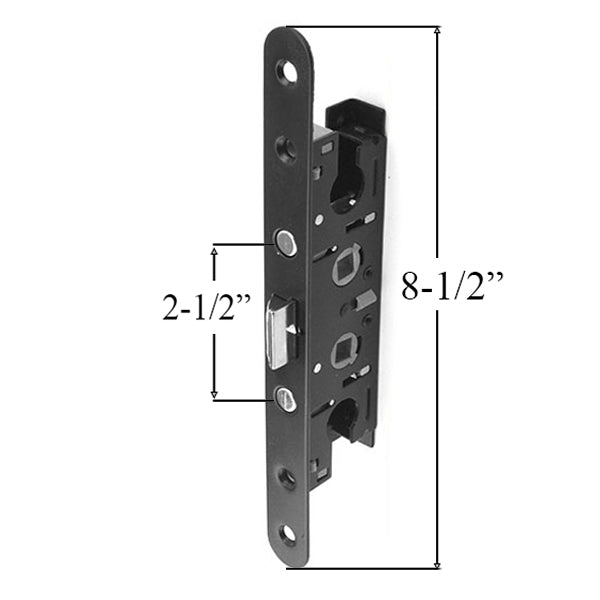

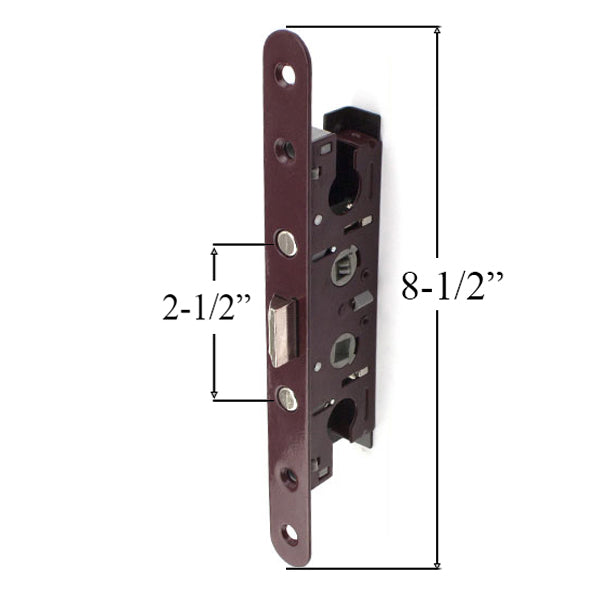

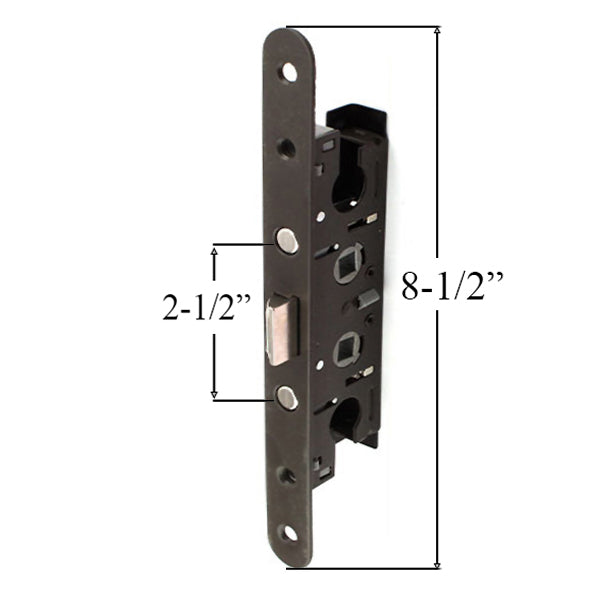

Bolts are 2-1/2 inches apart
Overall faceplate length: 8-1/2 inches
Installation screw holes: 7-5/16 ( screws not included)
PZ (center of handle to center of cylinder): 2-5/8 inches

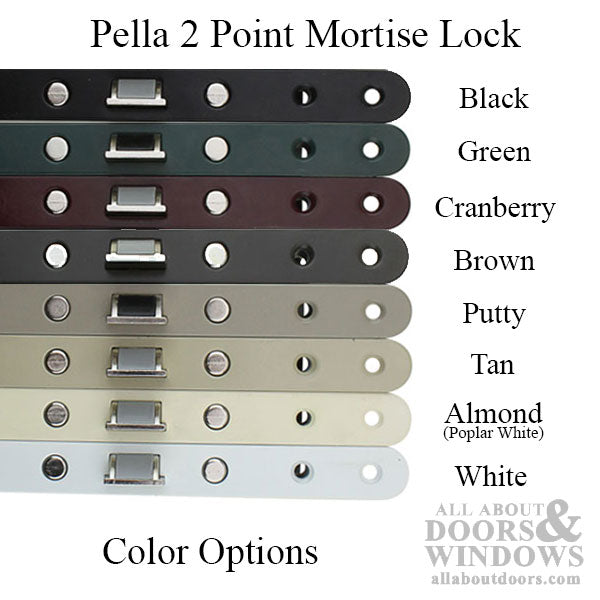

Available Colors: Black, Green, Cranberry, Brown, Putty, Tan, Almond (Poplar White) and White.
Note: These come from the factory in bulk, Colored faceplates may have minor blemishes, which is normal.
See additional information tab for installation instructions.
Priced and sold each.

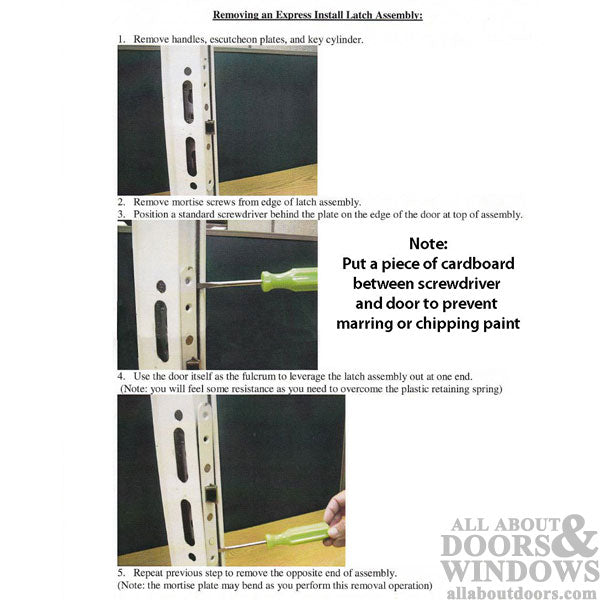

<p><span style="font-size:18px;"><strong><u>Lock Removal:</u></strong><u> </u></span><br /><span style="font-size:18px;">There are 4 spring loaded tabs that hold the Mortise lock in the storm door, even when faceplate screws are removed. </span><br /><span style="font-size:18px;">Use small pry bar or stiff putty knife and the spring loaded tabs will retract when removing lock body.</span><br /><span style="font-size:18px;">Put a piece of cardboard between screwdriver and door to prevent marring or chipping paint </span><br /><br /><span style="font-size:18px;"><strong><u>Cylinder Removal:</u></strong><u> </u></span><br /><span style="font-size:18px;">The cylinder screw needs to be removed to take the keyed cylinder out of door. </span><br /><span style="font-size:18px;">The cylinder has a cam in the center that rotates to lock and unlock the door </span><br /><span style="font-size:18px;">The cylinder only comes out when the cam is in the proper position. </span><br /><span style="font-size:18px;">To Remove cylinder turn thumb turn slowly and pull, when the cam is in alignment the cylinder will come out. </span><br /><span style="font-size:18px;">Replacement cylinder must be made by Pella. Their cylinder knob/key turns 270 degrees before the cam starts to turn.</span></p><p><span style="color:rgb(0,0,0);font-size:18px;"><strong><u>PDF: </u></strong></span><a href="/how-to-install-pella-storm-door-lock-305013" target="_blank"><span style="color:rgb(76,230,76);font-size:18px;"><strong><u>Installation Instructions</u></strong></span></a></p>
