Andersen Emco Keyed 3 Post Storm Door Hardware w/ Deadbolt for 1-1/2 Inch Doors

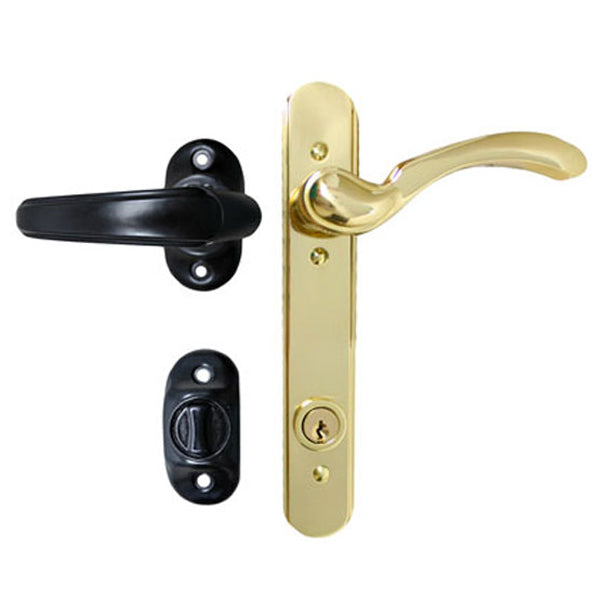

Andersen / Emco keyed split finish 3 post storm door hardware handle set with deadbolt for 1-1/2 inch doors in polished brass and black.

The original hardware is discontinued and was not split finish. It was the same color inside and outside. (306003)

This handle set is a replacement for 306003 is split finish black on the inside and polished brass on the outside.

Handle set has 3 posts with hole spacing from top the bottom screw of 5-1/2 inch.

Please note that the bottom hole for the key cylinder is not round, it is oval. The 4th screw is a sheet metal screw that goes in the door.

Outside Plate Height: 8 Inch

Outside Plate Width: 1-3/8 Inch

Outside Plate Hole Spacing: 1-3/16 Inch, 3-13/16 Inch

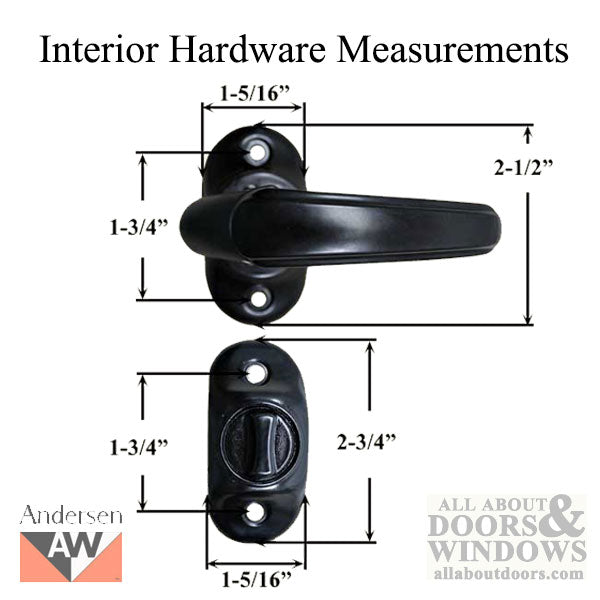

Inside Plate Height: 2-1/2 Inch

Inside Plate Width: 1-5/16 Inch

Inside Plate Hole Spacing: 1-3/4 Inch

Inside Deadbolt Height: 2-3/4 Inch

Inside Deadbolt Width: 1-5/16 Inch

Inside Deadbolt Hole Spacing: 1-3/4 Inch

Finish: Polished Brass and Black

Door Thickness: 1-1/2 Inch

Cylinder: American Style with 1 Inch Flat Tailpiece

Keyway: Rekeyable to SC1 Keyblank 5 Pin Schlage

Priced and sold as kit.

For a Polished Brass exterior with White interior, please see 306007 which fits 7/8" thick doors.  If your door is thicker, you will need to reuse your current screws for installation
