Andersen Emco Keyed 3 Post Storm Door Hardware with Deadbolt for 1-1/2 Inch Doors in Polished Brass & Black

Part Number: 306000 Price: $105.19

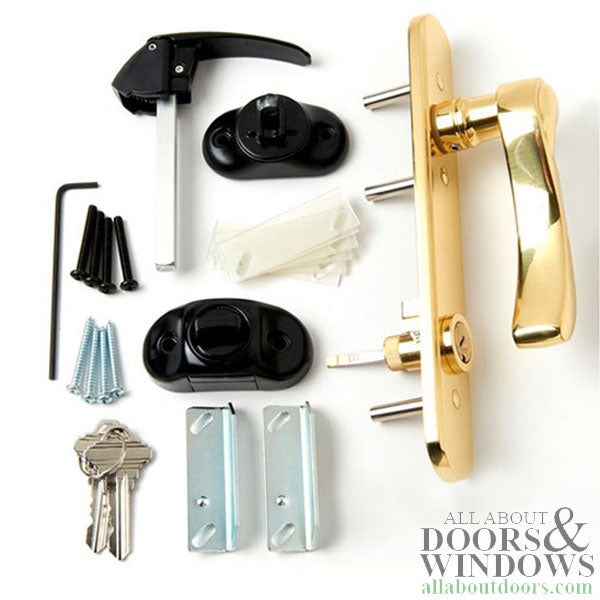

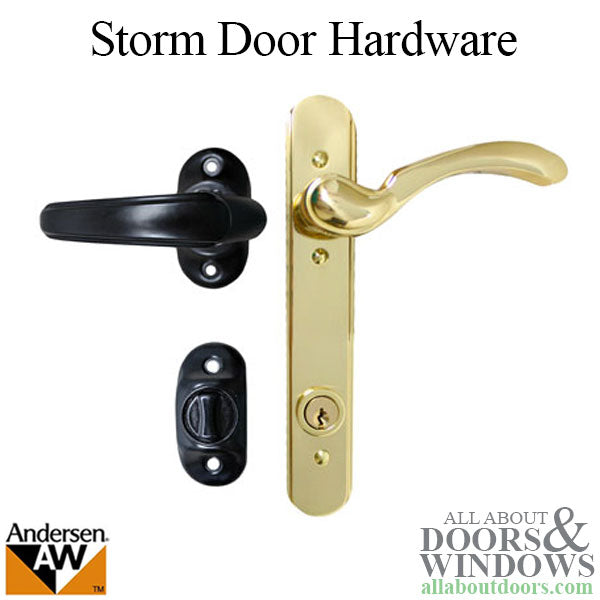

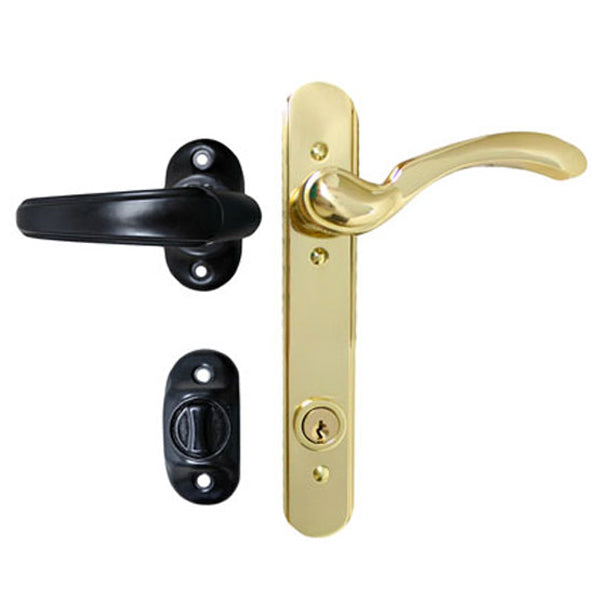

Andersen / Emco keyed split finish 3 post storm door hardware handle set with deadbolt for 1-1/2 inch doors in polished brass and black.
The original hardware is discontinued and was not split finish. It was the same color inside and outside. (306003)
This handle set is a replacement for 306003 is split finish black on the inside and polished brass on the outside.

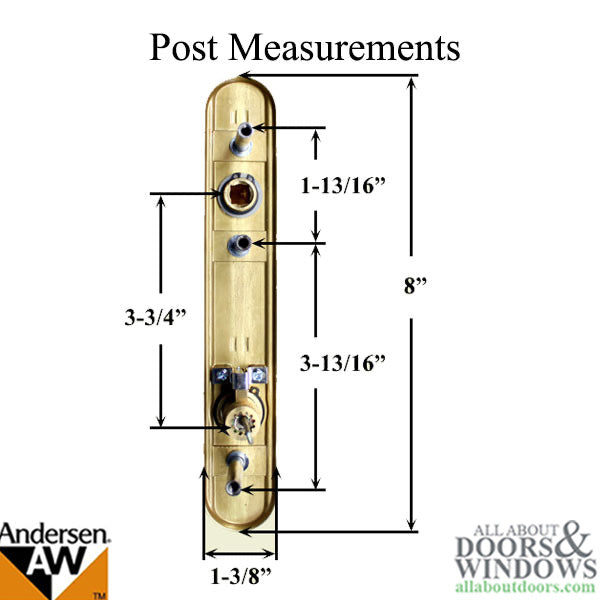

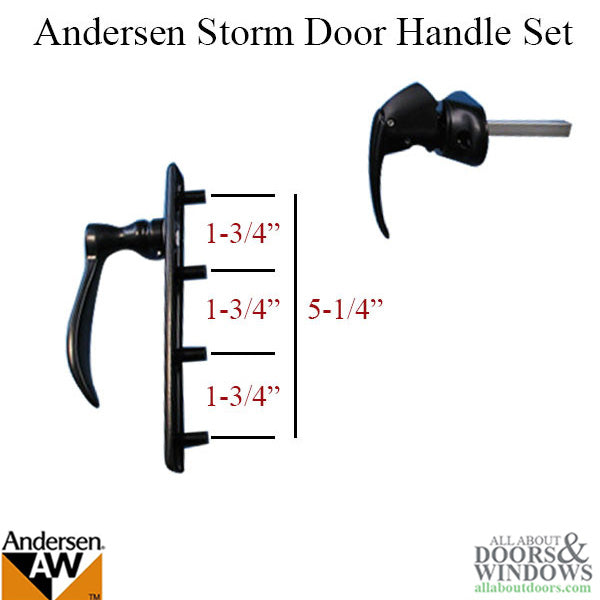

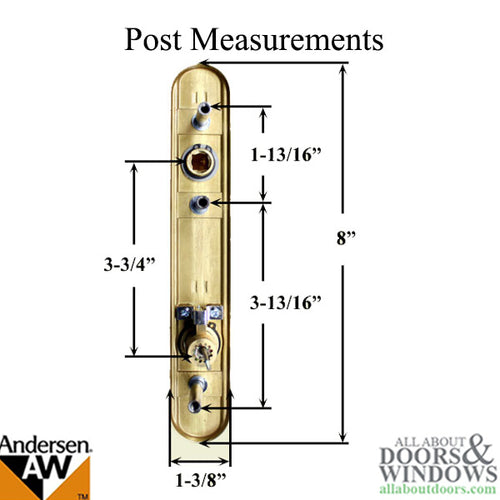

Handle set has 3 posts with hole spacing from top the bottom screw of 5-1/2 inch.
Please note that the bottom hole for the key cylinder is not round, it is oval. The 4th screw is a sheet metal screw that goes in the door.

Outside Plate Height: 8 Inch
Outside Plate Width: 1-3/8 Inch
Outside Plate Hole Spacing: 1-3/16 Inch, 3-13/16 Inch

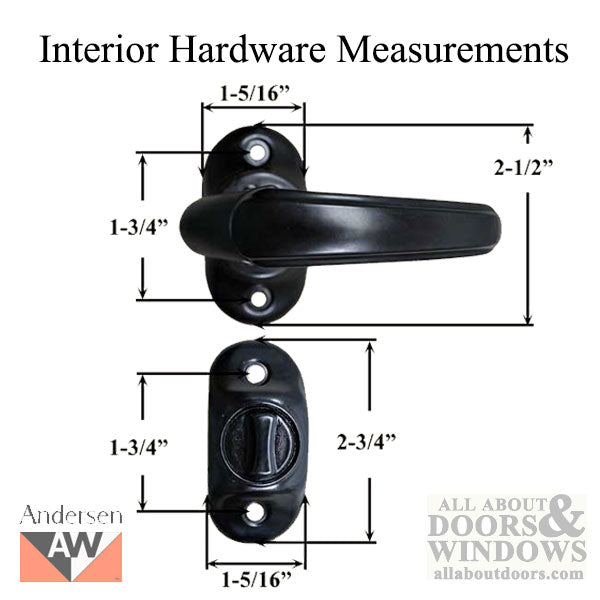

Inside Plate Height: 2-1/2 Inch
Inside Plate Width: 1-5/16 Inch
Inside Plate Hole Spacing: 1-3/4 Inch
Inside Deadbolt Height: 2-3/4 Inch
Inside Deadbolt Width: 1-5/16 Inch
Inside Deadbolt Hole Spacing: 1-3/4 Inch
Finish: Polished Brass and Black
Door Thickness: 1-1/2 Inch
Cylinder: American Style with 1 Inch Flat Tailpiece
Keyway: Rekeyable to SC1 Keyblank 5 Pin Schlage

Priced and sold as kit.

For a Polished Brass exterior with White interior, please see 306007 which fits 7/8" thick doors.  If your door is thicker, you will need to reuse your current screws for installation
