Ashland Expression Sliding Door Handle Non Keyed Active Handlset
Use the arrows or swipe left to view all images for this product
Ashland Expression Sliding Door Handle Non Keyed Active Handlset
Part Number: $178.61 to $295.00Expressions 12 inch Square Narrow Non-Keyed Sliding Door Handle
This elegant handle set will replace numerous standard handle sets used with mortise locks.

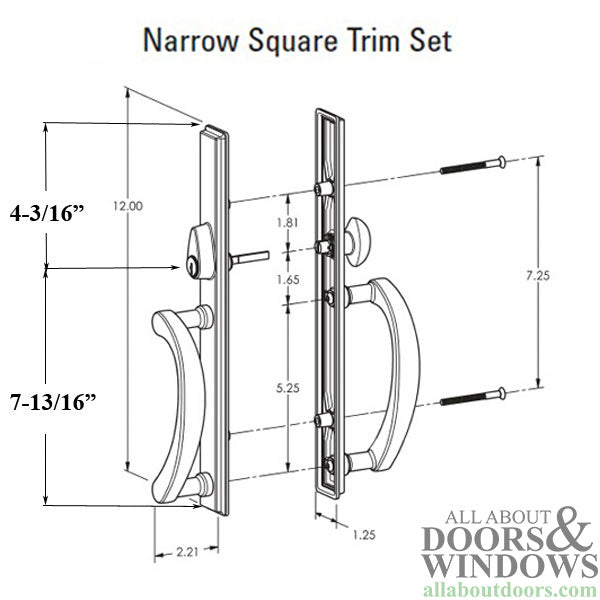

The thumb turn is 4-3/16 inch from top of plate. By just re-drilling 2 screw holes this may fit your door.
Compare measurements to be sure the extra long plate will cover your old marks on door.
DESCRIPTION
Trim set Series - Expressions
Escutcheon plate width: 1.25 inch wide
Escutcheon plate height: 12 inch wide
Escutcheon Type - Narrow plate, Square corners
Installation Screws : 7-1/4 inch centers
Door Thickness - Fits 1-3/4 and 2-1/4 inch
Substrate / Material - Brass
Stock Color / Finish: Satin Nickel

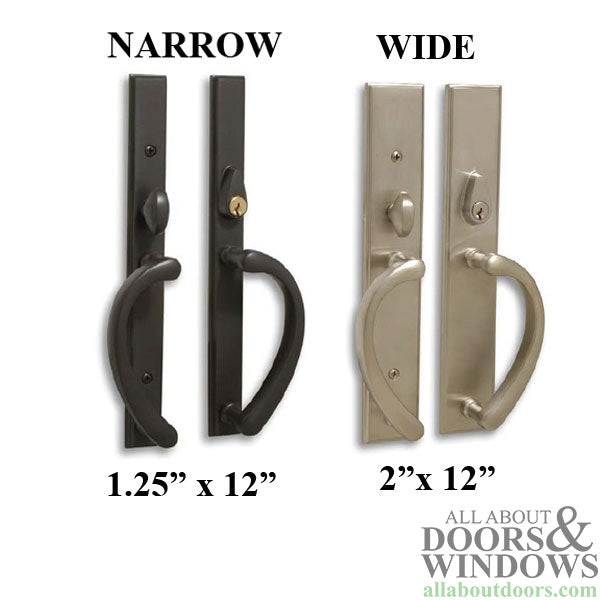

Available in 1-1/4 or 2 inch widths, arch top or square corner plates.
Expressions 12 inch Square Narrow Non-Keyed Sliding Door Handle
This elegant handle set will replace numerous standard handle sets used with mortise locks.The thumb turn is 4-3/16 inch from top of plate. By just re-drilling 2 screw holes this may fit your door. Compare measurements to be sure the extra long plate will cover your old marks on door.

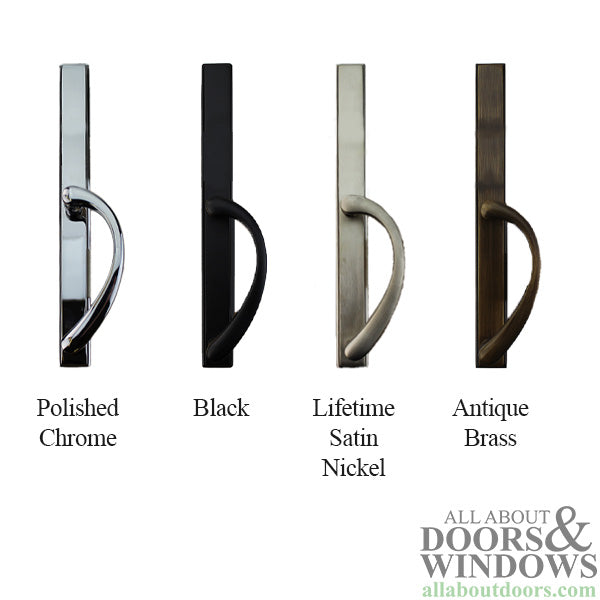

DESCRIPTIONTrim set Series - ExpressionsEscutcheon plate width: 1.25 inch wideEscutcheon plate height: 12 inch wideEscutcheon Type - Narrow plate, Square cornersInstallation Screws : 7-1/4 inch centersDoor Thickness - Fits 1-3/4 and 2-1/4 inchSubstrate / Material - Brass Stock Color / Finish: Satin NickelSpecial Order Colors: PVD Brass, Antique Brass, Oil Rubbed Bronze, Black, Polished Chrome
Special order items, allow 1-3 weeks for normal deliveryAvailable in 1-1/4 or 2 inch widths, arch top or square corner plates.
