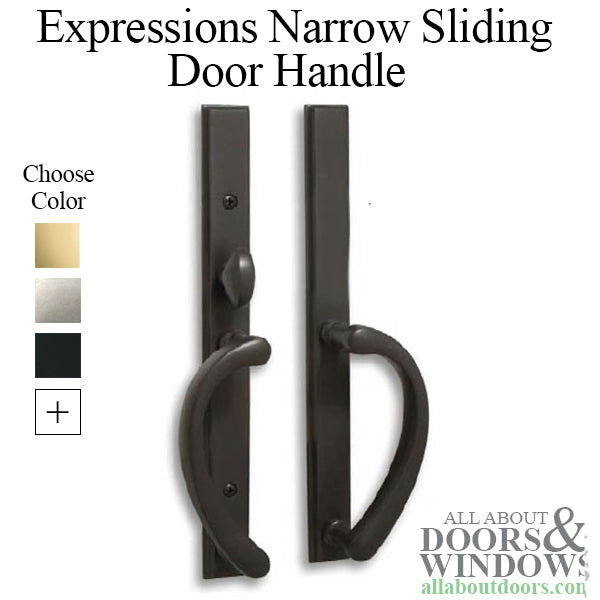

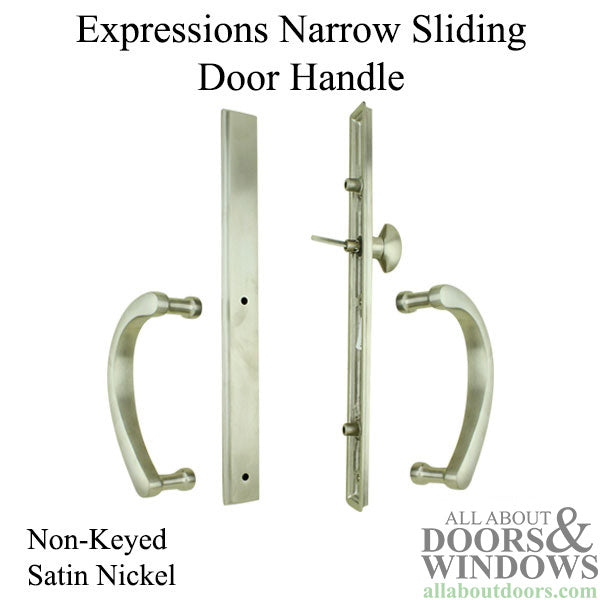

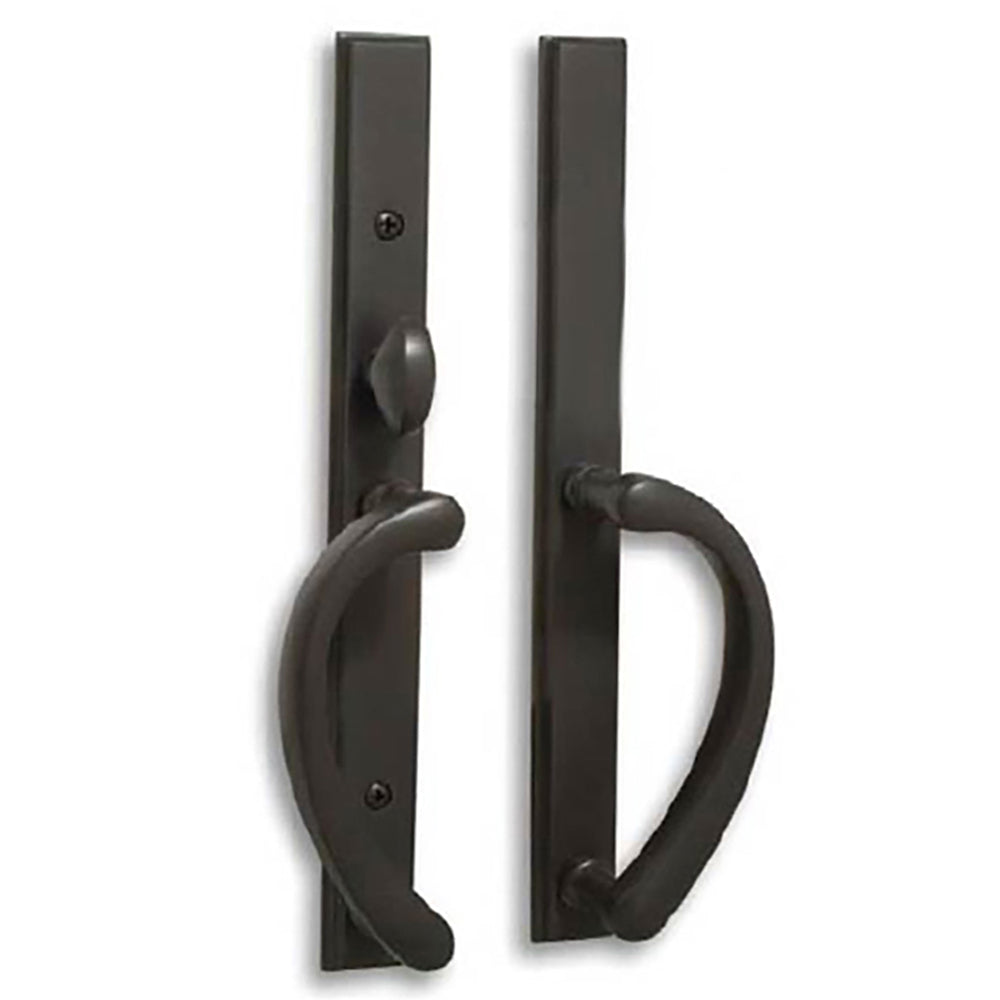

Expressions 12 inch Square Narrow Non-Keyed Sliding Door Handle
This elegant handle set will replace numerous standard handle sets used with mortise locks.

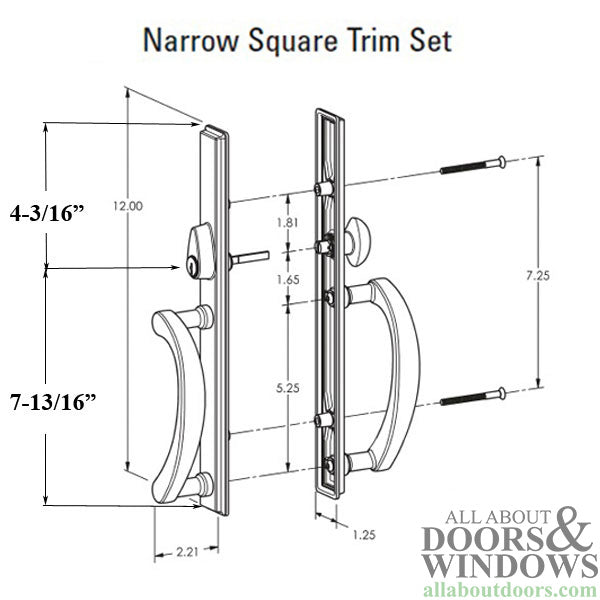

The thumb turn is 4-3/16 inch from top of plate. By just re-drilling 2 screw holes this may fit your door.
Compare measurements to be sure the extra long plate will cover your old marks on door.
DESCRIPTION
Trim set Series - Expressions
Escutcheon plate width: 1.25 inch wide
Escutcheon plate height: 12 inch wide
Escutcheon Type - Narrow plate, Square corners
Installation Screws : 7-1/4 inch centers
Door Thickness - Fits 1-3/4 and 2-1/4 inch
Substrate / Material - Brass
Stock Color / Finish: Satin Nickel

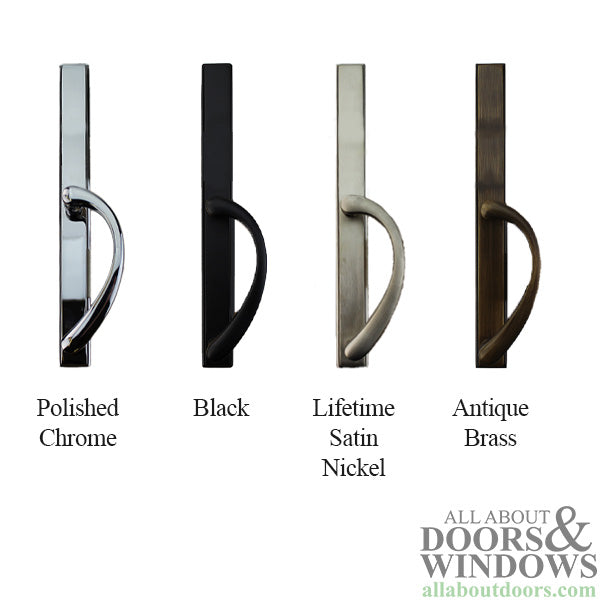

Special Order Colors: PVD Brass, Antique Brass, Oil Rubbed Bronze, Black, Polished Chrome
Special order items, allow 1-3 weeks for normal delivery

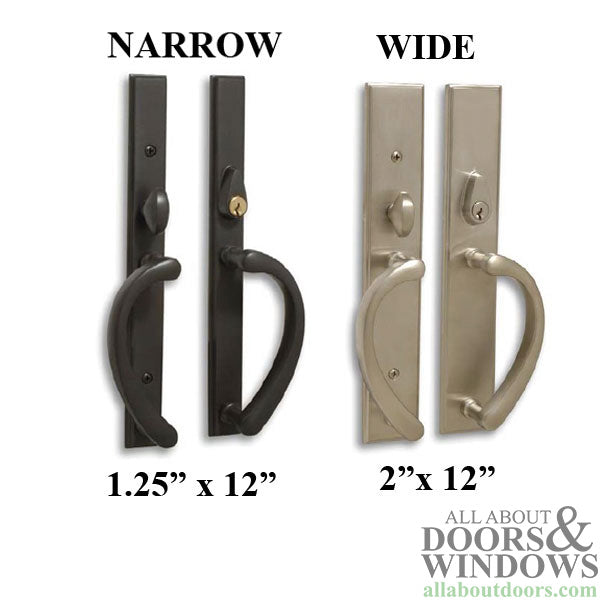

Available in 1-1/4 or 2 inch widths, arch top or square corner plates.
